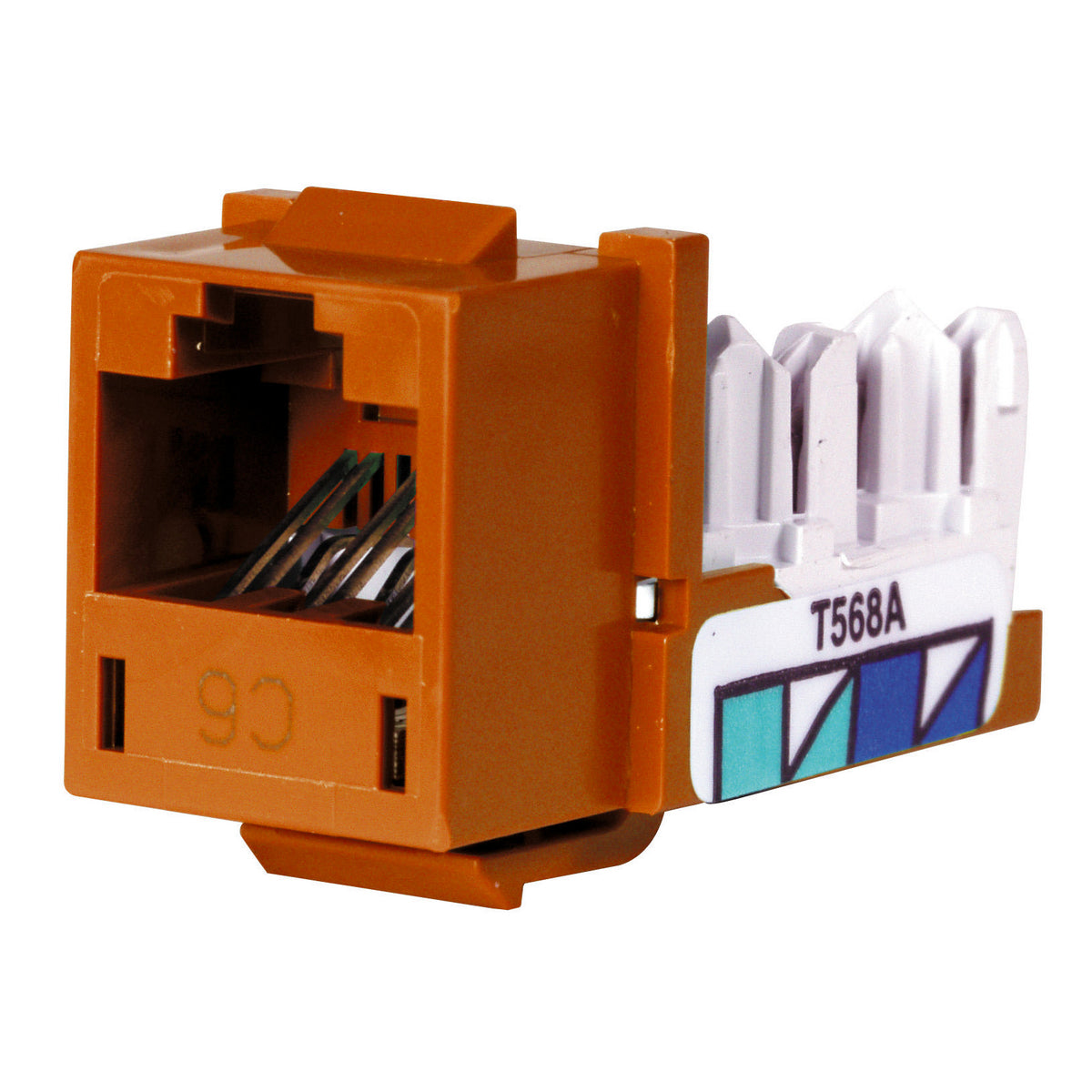

Hubbell HXJ6OR24 Modular Jack 8-Position Standard Universal Xcelerator A/B Cat 6 Module

Product Description

The Hubbell HXJ6OR24 is an eight-position standard universal Xcelerator A/B modular jack designed for use in communication networks. It meets Category 6 specifications and is ideal for telephone and data distribution.

• Third-party verified Category 6 component compliant
• Exclusive one-punch termination reduces termination time by seventy-five percent
• Mating cycles exceed industry standards by four times

Product Highlights

This modular jack simplifies installation and improves connectivity for data and voice applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: HXJ6OR24

Technical Specifications

• Application: For telephone and data distribution jack, IEEE 802.3ab 1000GBASE-T, IEEE 802.3bt 4PPoE, TIA TSB-155 10GbE over fifty-five meters
• Color: Orange
• Dimensions: 0.679 inches W x 0.982 inches D x 0.807 inches H
• Material: Thermoplastic
• Module Type: Cat 6
• Series: HXJ
• Standards/Approvals: ANSI/TIA/EIA 568-C.2, CSA Certified, ISO 11801/60603-7-41, TIA-568-C.2, UL 1863
• Type: 8-Position Standard Universal Xcelerator A/B
