Product Description

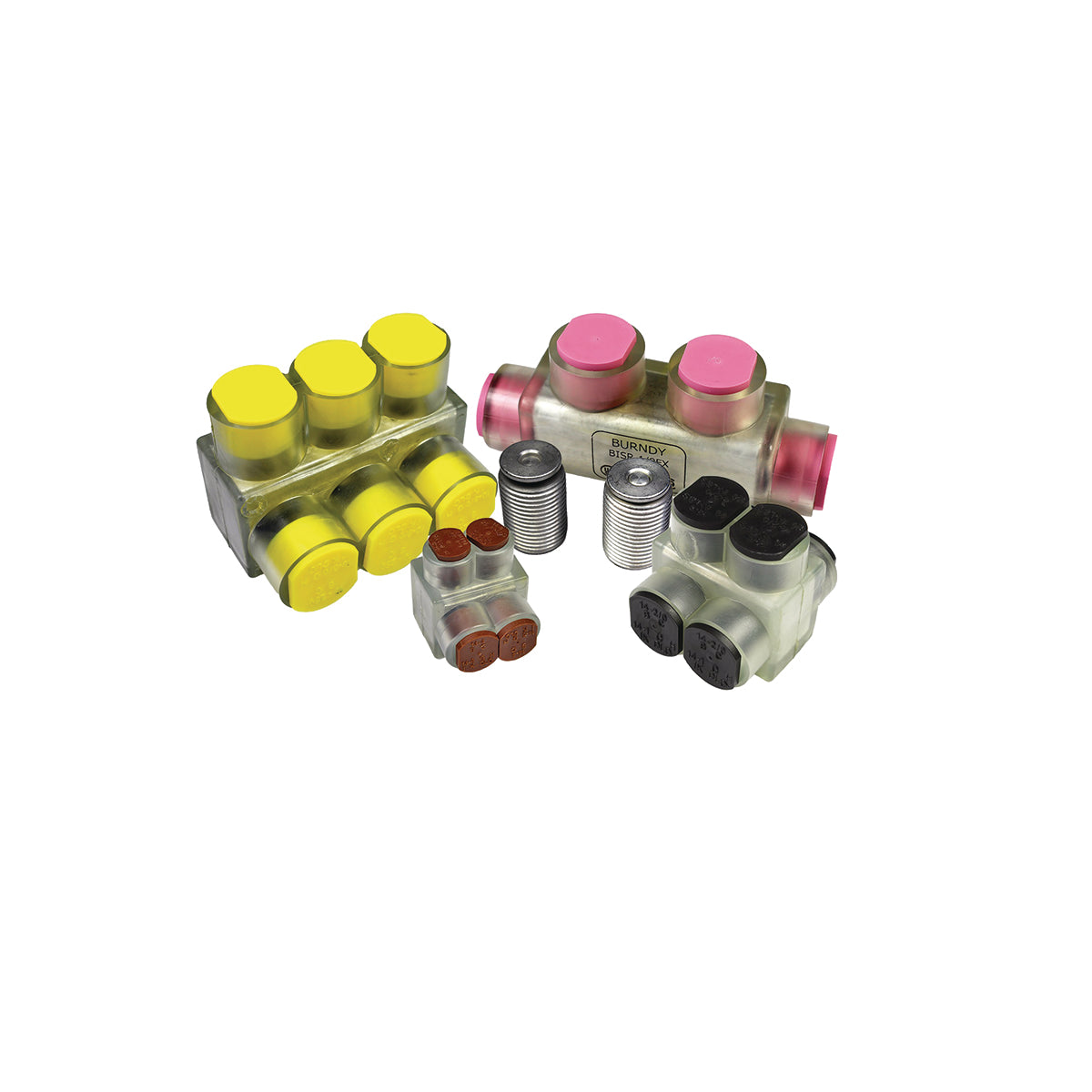

Hubbell BIT600FX is a BURNDY UNITAP Multi-Tap Connector designed for insulated connections. It supports aluminum or copper stranded conductors ranging from four AWG to six hundred kcmil. The product is suitable for use in various electrical applications, delivering strong and reliable connections.
- Rated for 600 VAC
- Temperature tolerance from -40 to 135 degrees Celsius
- Includes clear plastisol insulation for moisture protection
Product Highlights
This connector minimizes installation costs and saves time by lowering the number of connectors required. The pre-installed oxide inhibitor helps to prevent moisture contamination, ensuring consistent performance.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 62194544004
Technical Specifications
-
Application: Clear Insulated Multiple Tap Connectors
-
Conductor Size: 4 AWG to 600 kcmil, 4 AWG to 373 kcmil
-
Conductor Type: Aluminum/Copper/Stranded
-
Dimensions: 2.75 in L x 2.38 in W x 2.75 in H
-
Finish: Tin Plated
-
Material: Aluminum
-
Series: BIT
-
Specifications: 2-Port, 3/8 in Hex Key, Plastisol Insulation
-
Voltage Rating: 600 VAC
-
Temperature Rating: -40 to 135 deg C
-
Standards/Approvals: RoHS Compliant, UL 468A/468B
