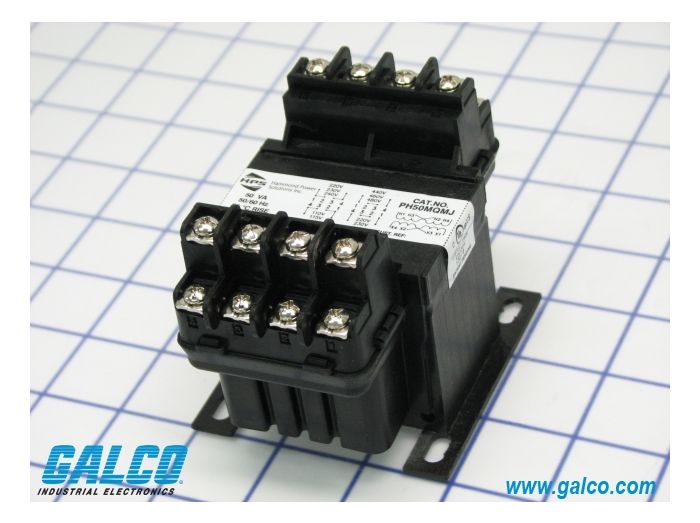

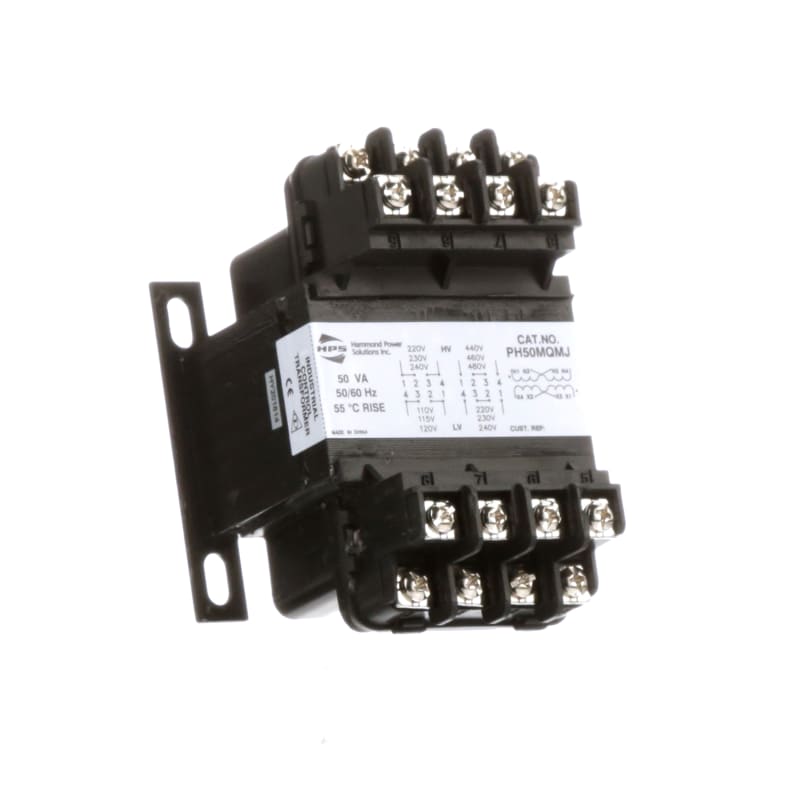

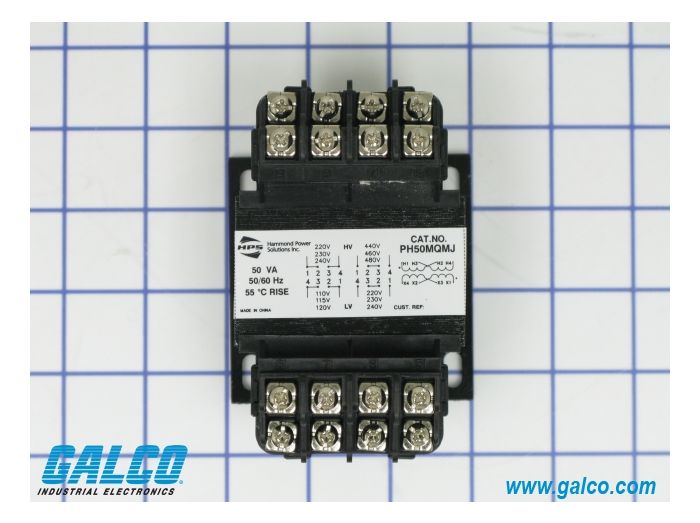

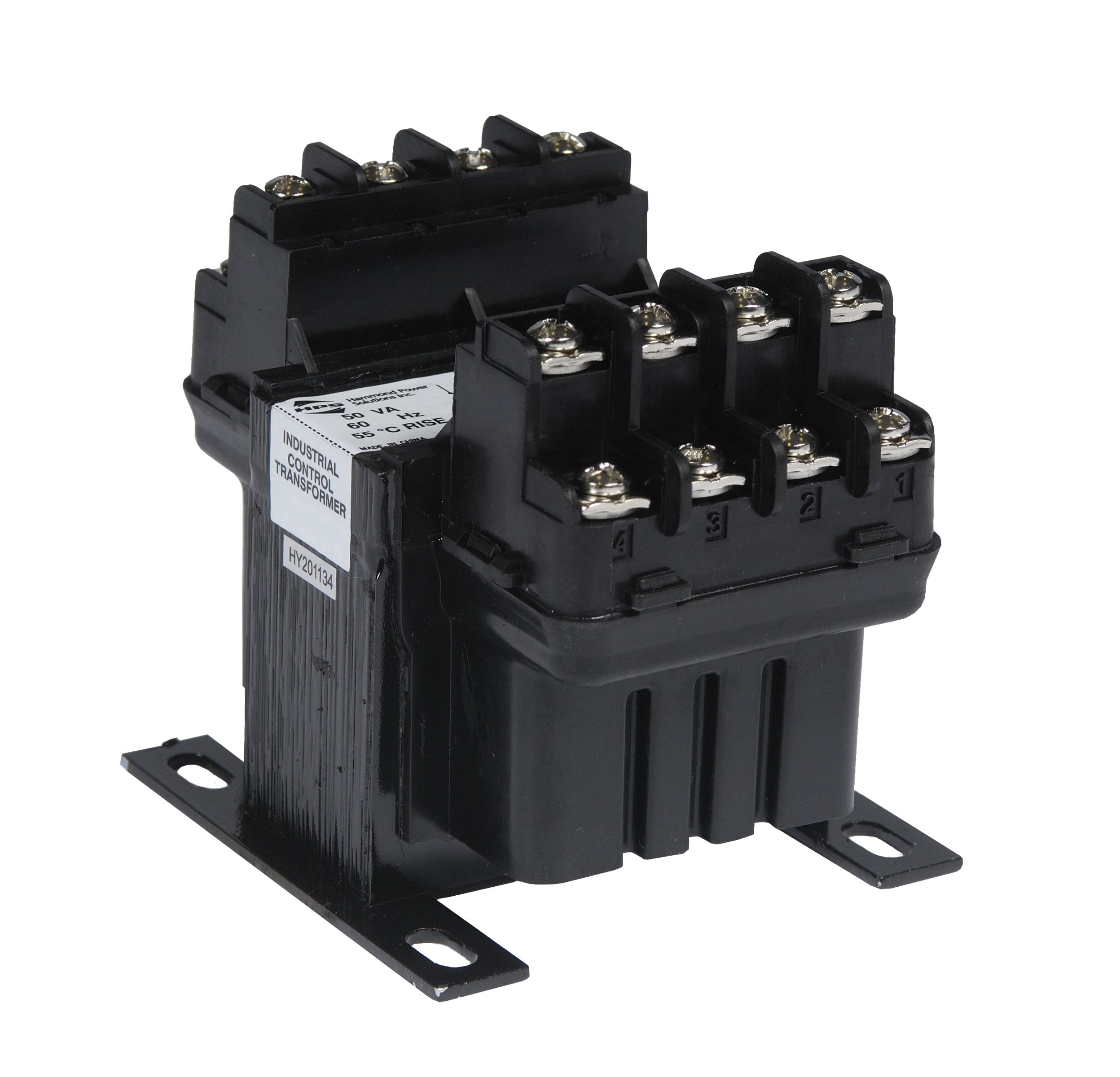

HPS Imperator PH50MQMJ Industrial Molded Open Style Control Transformer

Product Description

The HPS Imperator PH50MQMJ is an industrial control transformer suitable for high inrush applications. This device is designed for use in environments that require electromagnetic components, such as relays and solenoids. It features encapsulated copper wound coils, which are secured by a custom injection-molded cover for protection against moisture and dirt.

• Encapsulated coils for protection against environmental factors.
• Made with high-quality silicon steel laminations for performance.
• Heavy-steel mounting feet provide strength and noise reduction.

Product Highlights

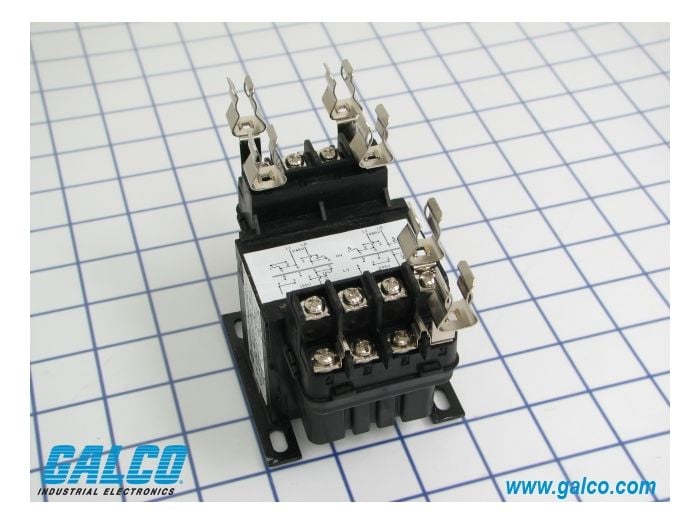

The design includes a terminal block for quick installation of fuse clips enhancing usability.

Product Information

Standard Information

• Brand: HPS Imperator
• MPN: PH50MQMJ

Technical Specifications

• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 50 VA
• Frequency: 50/60 Hz
• Phase: 1 ph
• Maximum Amperage: 0.42/0.21 A
• Connection Type: Screw
• Mounting Type: Panel
• Insulation: 105 deg C
• Temperature Rating: 30 deg C
• Dimensions: 3 in L x 4.38 in W x 3.19 in H
