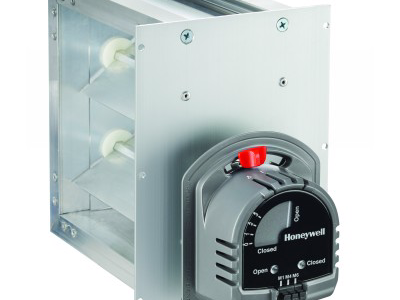

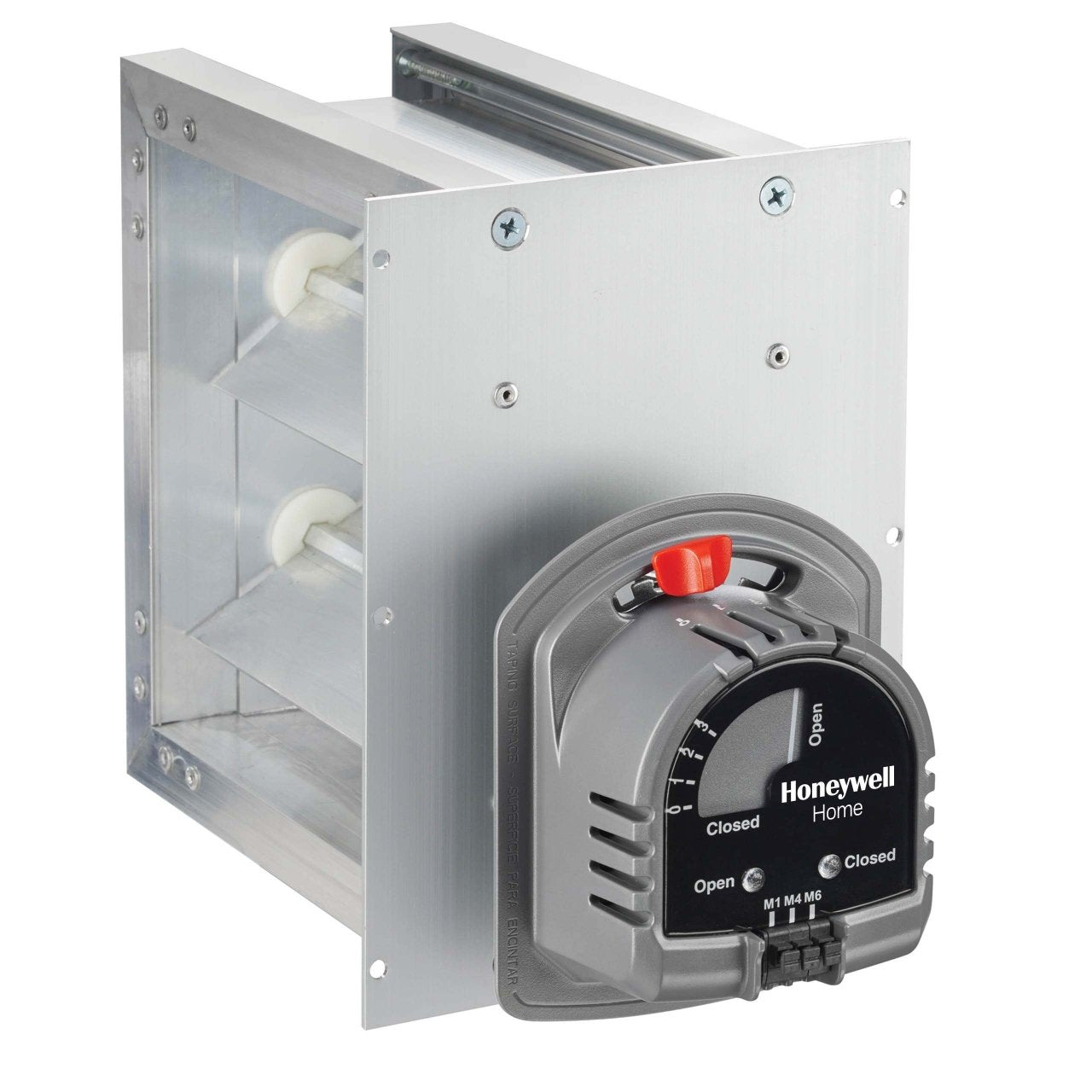

Honeywell ZD8X12TZ/U Damper Parallel Blade 8 in x 12 in

Product Description

The HONEYWELL ZD8X12TZ/U is a damper parallel blade designed for HVAC systems. It features a 24V spring-return motor to control circulating air and is used when a normally open damper is required, typically with TrueZONE systems. Its Kevlar gearing reduces wear, more than doubling damper life. Solid construction using extruded aluminum frame and blades.

• Power close, spring open
• Parallel blade design for low leakage performance
• Simple, easy-to-wire, 2-wire installation

Product Highlights

This Honeywell damper is compatible with conventional and networked zoning and can be installed in any orientation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X12TZ/U
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL
• MPN: ZD8X12TZ/U
• Size: 8" x 12"
• Material: Aluminum
• Voltage: 24 VAC
• Amperage: 0.32 A
• Rotation: 90 deg
• Shape: Rectangular
• Voltage Rating: 24 V
• Amperage Rating: 0.32 A
• Blade Type: Parallel
• Electrical Connection: M1 Power, M6 Common, M4 Terminal
• Timing Range: 30 s
• Motor Type: Spring Open, Power Closed
• Temperature Rating: 32 to 120 deg F
• Length: 3-61/64 in
• Width: 4-41/64 in
• Height: 4-31/32 in
• Additional Information: 8 x 12 in Opening Size
• Length (inches): 12
• Height (inches): 8
• Mount: Bottom Mount
• Type: Supply Air Damper
• Opening Size: 8 Inch x 12 Inch
• Overall Size: 3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Height
• Motor Mounting Type: Bottom
• Motor Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque Rating: 71 Inch-Ounce
• Motor Temperature Rating: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure Rating: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Wires to Motor Terminal: M1-Power, M6 Common, M4 (Optional) LED Indication
• Inclusion/Features: Mechanical Visual Position Indicator
• Used With: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Style: New Construction
• Indicator Type: LED
• Shipping Height: 16 in
• Shipping Length: 7 in
• Shipping Weight: 5.5 lb
• Shipping Width: 12 in
