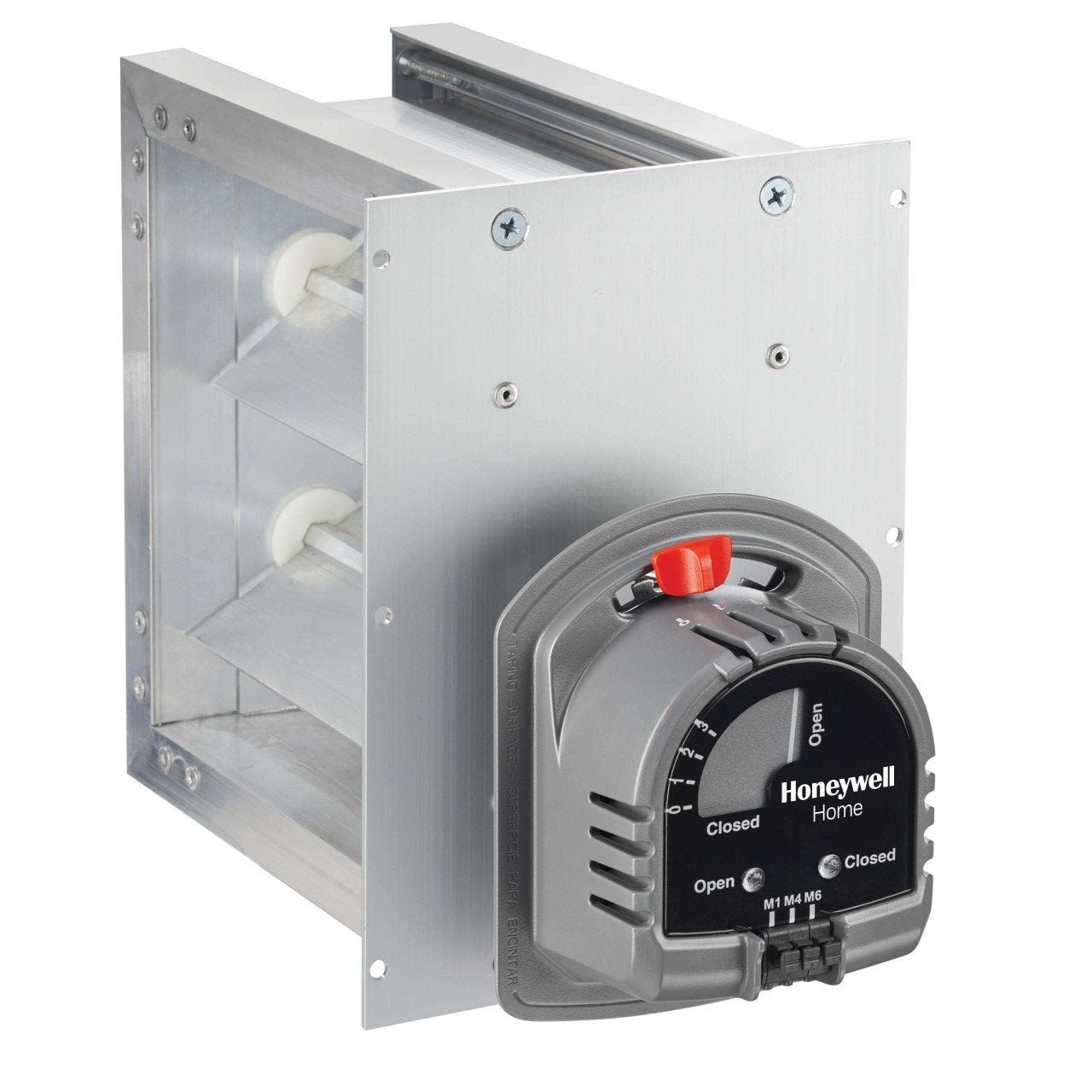

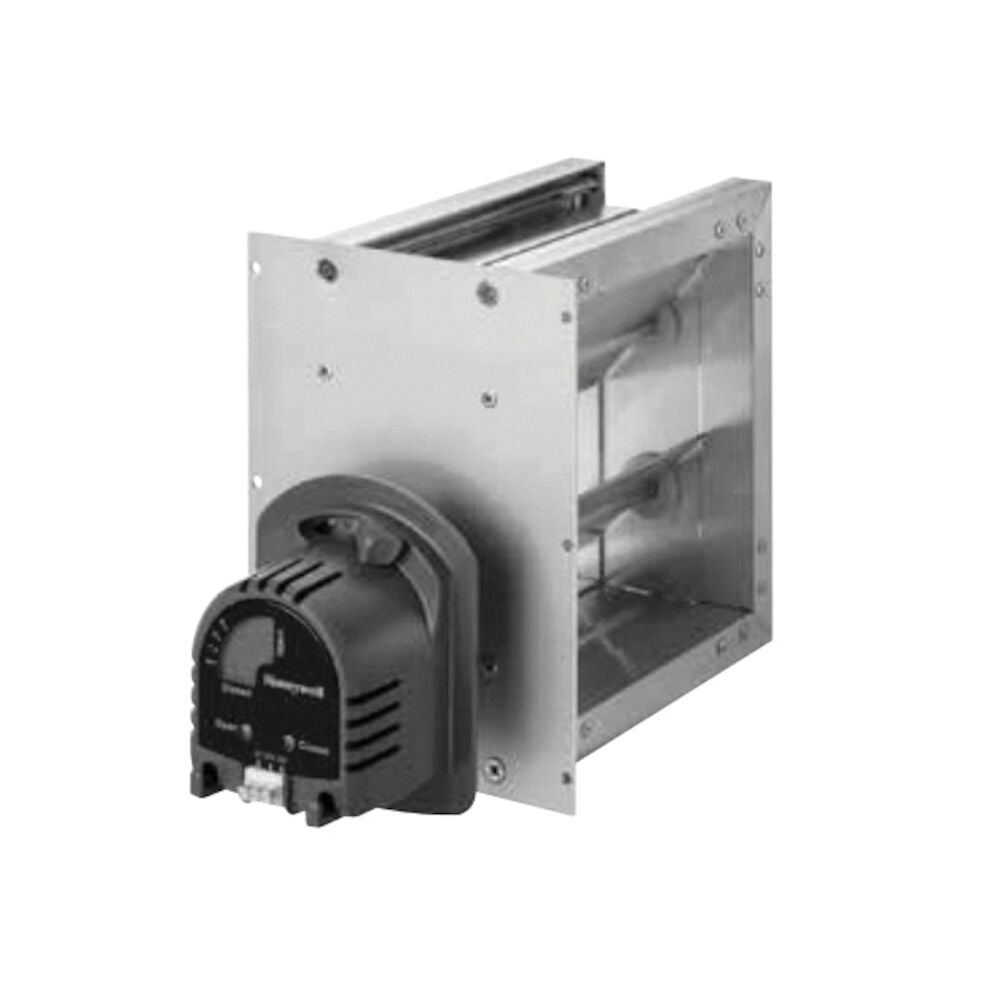

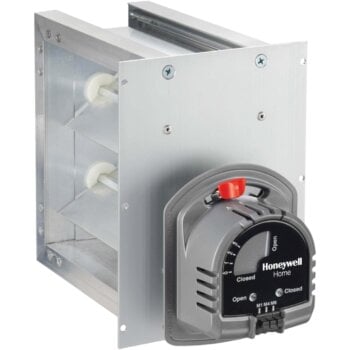

HONEYWELL ZD6X10TZ/U Damper

Product Description

The HONEYWELL ZD6X10TZ/U is a robust damper designed for HVAC systems. It features a power close and spring open mechanism, utilizing a twenty-four volt motor to effectively manage airflow in your HVAC setup. Ideal for use with TrueZONE and similar electronic zoning systems, this damper's design supports parallel blade action for efficient operation. It can be mounted in any position, making it versatile for various installations.

• Power close and spring open operation
• Compatible with HVAC zoning systems
• Can be installed in multiple orientations

Product Highlights

This damper is essential for regulating air distribution and maintaining comfort levels in any HVAC environment.

Product Information

Standard Information

• Manufacturer: Honeywell
• Manufacturer #: ZD6X10TZ/U

Technical Specifications

• Series: ZD Series
• Shape: Rectangle
• Size: Six by ten inches
• Material: Aluminum
• Motor Type: Power Open/Spring Closed
• Voltage Rating: Twenty-four VAC
• Amperage Rating: Zero point thirty-two A
• Rotation Angle: Ninety degrees
• Temperature Rating: Forty to one hundred forty degrees F
• Timing: Thirty seconds power open/ten seconds spring return
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Damper Type: Zone
• Damper Duct Shape Type: Rectangular
• Blade Action: Parallel
• Blade Material: Aluminum
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: Eight VA
• Actuator Torque: Seventy-one in-oz
• Leakage: Less than one percent at zero point five in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: Four
• Product Height: Ten inches
• Product Length: Six inches
• Product Width: Four inches
• Weight: Four point five lbs
