Resideo ZD10X6TZ/U Zone Control Damper 24 VAC 8 VA (10 in x 6 in)

Product Description

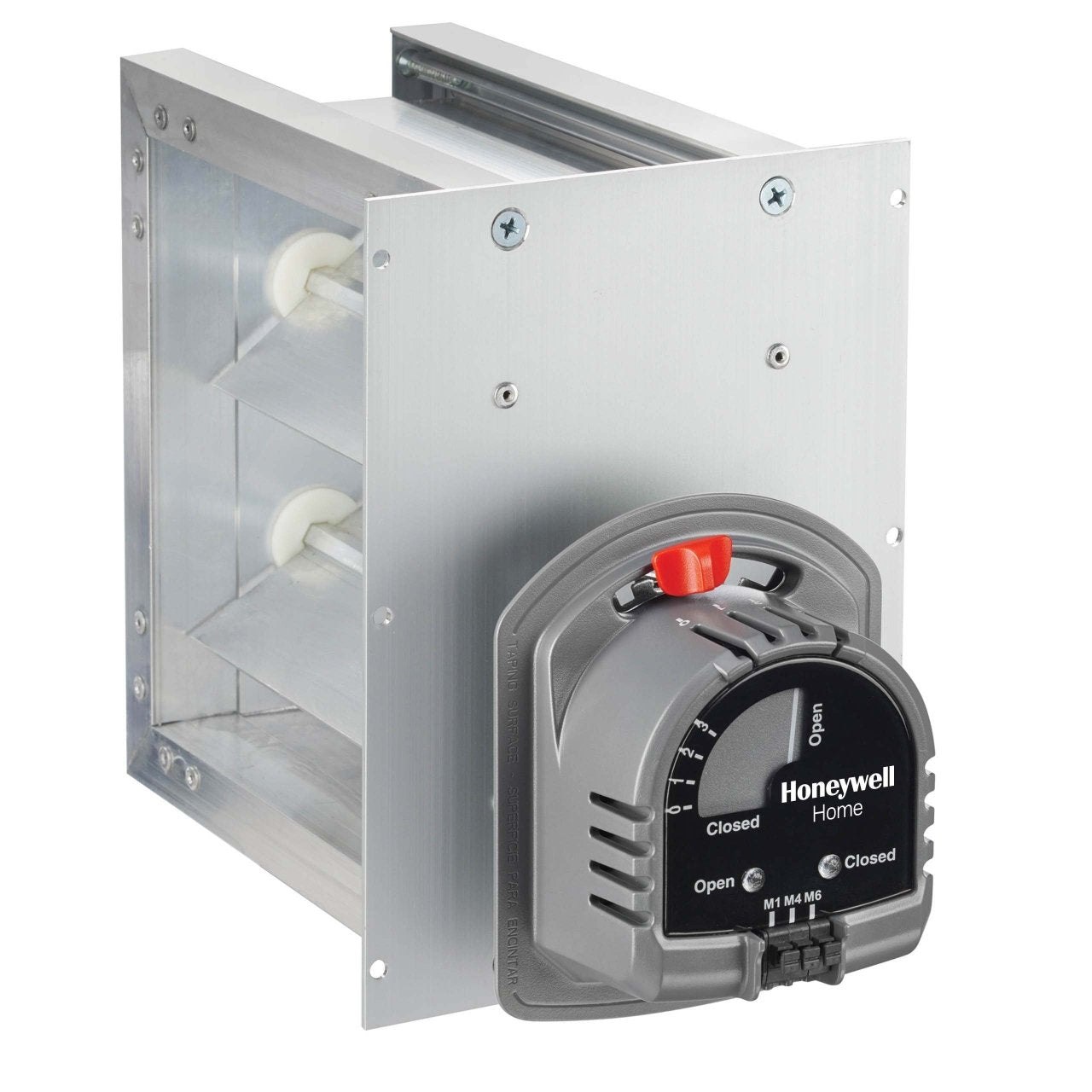

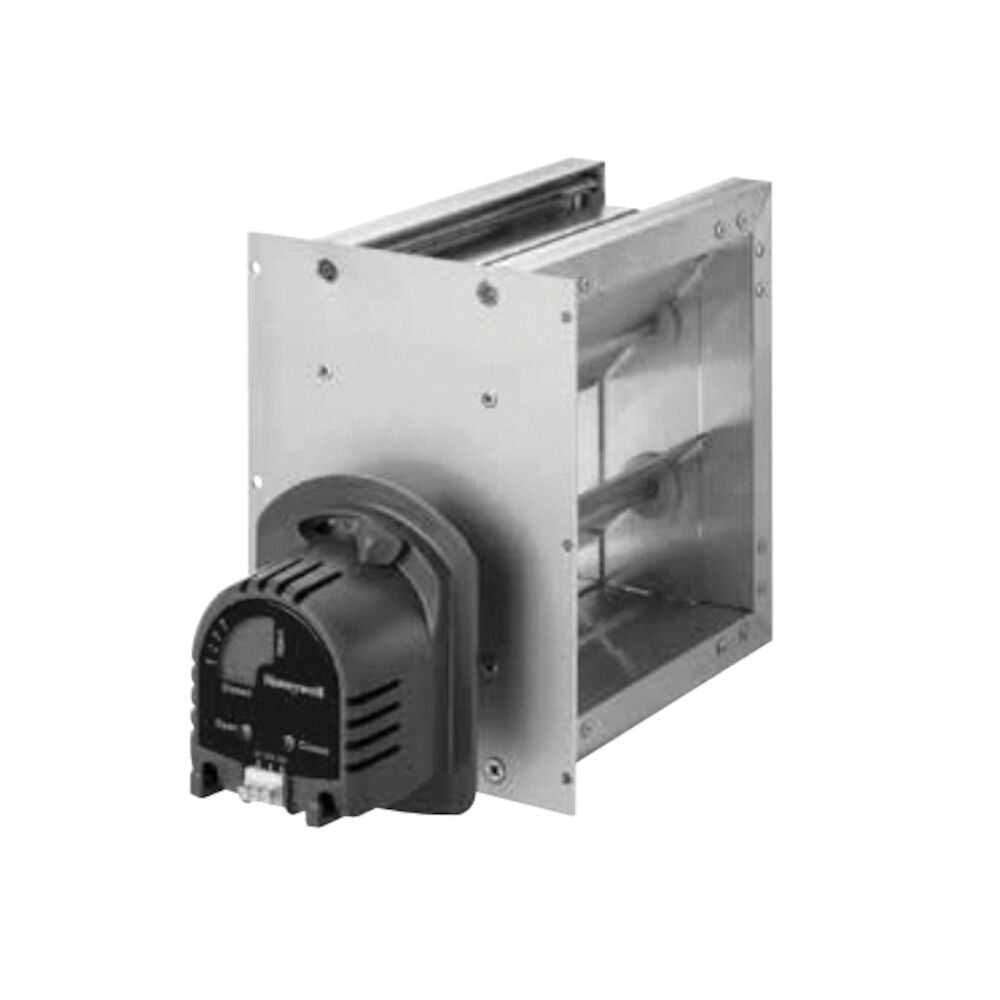

The Resideo ZD10X6TZ/U is a zone control damper with a parallel blade rectangular design and a 24 VAC, 60 Hz, 8 VA spring-return side-mount motor. It fits a 10 in x 6 in duct and uses extruded aluminum blades with a mechanical visual position indicator. Motor torque is 71 in-oz, maximum static pressure rating is 1 in WC, and motor timing is 30 seconds (power open) and 10 seconds (spring return). It is designed for HVAC electronic zoning and TrueZONE systems.

• 24 VAC, 60 Hz, 8 VA spring-return side-mount motor; 71 in-oz torque; 30 s power open / 10 s spring return
• Parallel blade rectangular damper with extruded aluminum blades for 10 in x 6 in ducts; mechanical visual position indicator
• Power-close / spring-open operation; maximum static pressure 1 in WC; pressure drop 0.0329 in WC at 800 ft/min

Product Highlights

Power-close, spring-open parallel blade damper with 24 VAC spring-return motor and 10 in x 6 in extruded aluminum blades for HVAC electronic zoning.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD10X6TZ/U
