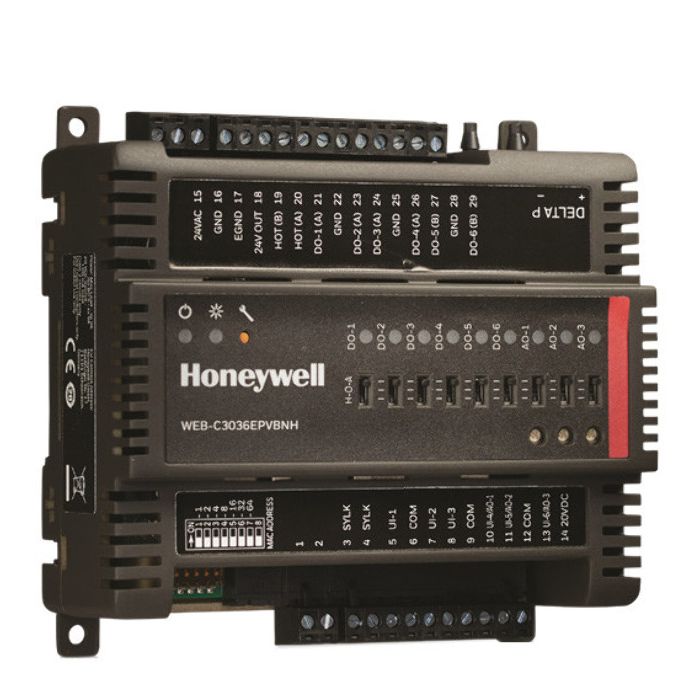

Honeywell WEB-C3036EPUBNH CIPer30 Controller, 12 IO

Product Description

The Honeywell WEB-C3036EPUBNH is a programmable unitary controller designed for robust building automation. This controller features six universal inputs and six digital outputs. It supports BACnet IP and Niagara Network protocols, making it ideal for integration into various automation systems. The device has four Ethernet ports equipped with Rapid Spanning Tree Protocol. It includes an air flow sensor and a Sylk interface for effective environmental monitoring.

• Supports up to three field devices with a capacity for 150 points.
• Compact design allows for easy installation on a DIN rail.
• Built-in functionalities include alarms, schedules, trends, and email notifications.

Product Highlights

Versatile I/O capabilities for diverse HVAC applications and continuous adaptation for improved performance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: WEB-C3036EPUBNH

Technical Specifications

• Input/Output: 12 I/O
• Type: Programmable
• Communication Ports: RS-485, Ethernet
• Mounting: DIN Rail
• Power Voltage: 20 to 30 VAC
• Operating Conditions: -4 F to 131 F (-20 C to 55 C), 5% to 95% non-condensing humidity
• Power Consumption: 100 VA maximum for controller and all connected loads
• Approval: UL/CUL Listed
