RESIDEO Resideo VR4300A4502/U Single Stage Gas Control 120 V AC (3/4 in x 3/4 in) VR4300A4502/U
RESIDEO Resideo VR4300A4502/U Single Stage Gas Control 120 V AC (3/4 in x 3/4 in) VR4300A4502/U

Resideo VR4300A4502/U Single Stage Gas Control 120 V AC (3/4 in x 3/4 in) VR4300A4502/U

Brand: RESIDEO
SKU: VR4300A4502/U
Availability: In Stock

Ships same day if ordered by 12 pm
$300.88
$300.88
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

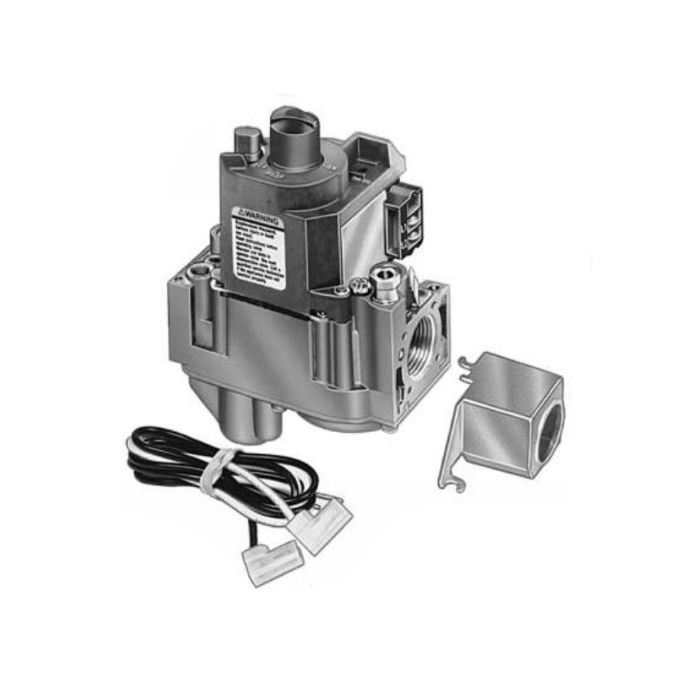

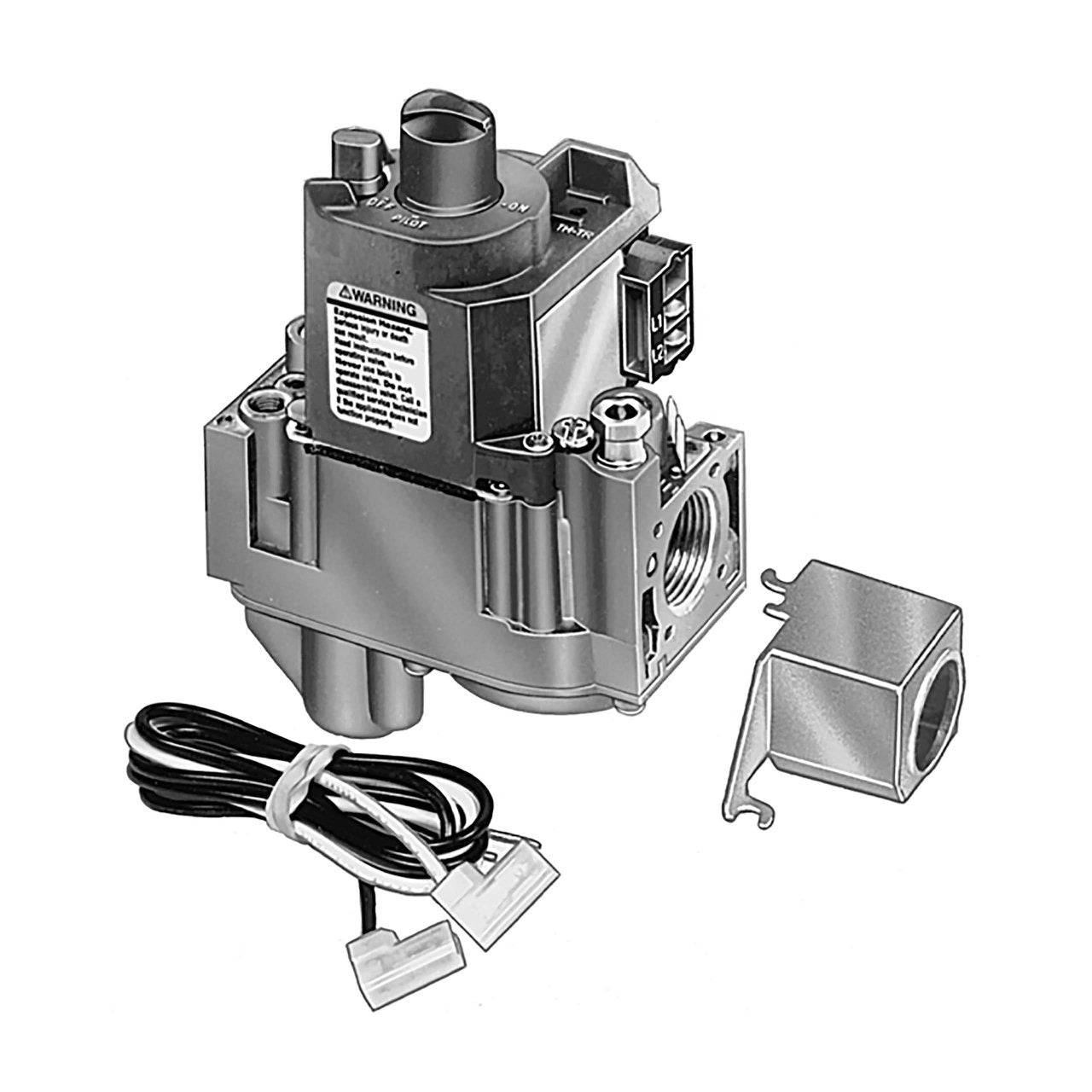

Resideo VR4300A4502/U is a combination gas control designed for 120 V AC, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. The control provides safety shutoff, a manual valve, two automatic operators (solenoid and diaphragm), an adjustable servo pressure regulator, and top-accessible pilot adjustment and wiring. It supports natural gas and LP with available conversion kits and features LITE-RITE lighting and ECO connector compatibility.

  • Dual safety shutoff with manual valve plus solenoid and diaphragm automatic operators
  • Adjustable servo regulator for near-constant gas output pressure and top access to pilot adjustment and wiring
  • 3/4 in x 3/4 in inlet/outlet, 120 V AC operation, supports 30 to 300 cfh and natural/LP conversion kits

Product Highlights

Single stage standing-pilot gas control with dual safety shutoff and adjustable regulator

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: VR4300A4502/U
Technical Specifications
Brand
Resideo
MPN
VR4300A4502/U
Model description
Single stage, standing pilot combination gas control
Type
Gas valve / combination gas control
Input Voltage
120 V AC
Inlet/Outlet Size
3/4 in x 3/4 in
Opening Type
Standard opening
Capacity
30 to 300 cfh
Gas Compatibility
Natural gas and LP (conversion kits available)
Pressure Rating
3.5 kPa (1/2 psi)
Safety Features
Safety shutoff and manual valve; meets dual safety shut-off code requirements
Automatic Operators
Solenoid-operated valve and diaphragm-operated valve
Regulator
Adjustable servo regulator for near-constant gas output pressure
Pilot Adjustment
Pilot adjustment accessible from top
Mounting / Access
All adjustments, wiring connections and pilot outlet accessible from top
Compatibility
Compatible with ECO connector
Lighting Sequence
LITE-RITE (OFF-PILOT-ON)
Includes
Two 3/4 x 1/2 in reducer bushings; one 1/2 in x 3/8 in reducer bushing; 393691 Natural to LP conversion kit
Approvals and Standards
UL Component Recognized MCCZ2.MH5323; CSA International: 112395; AGA Design Certified: File No. L2025006; CGA Design Certified: File No. L2025006; Australian Gas Assoc. Design Certificate: 4717
