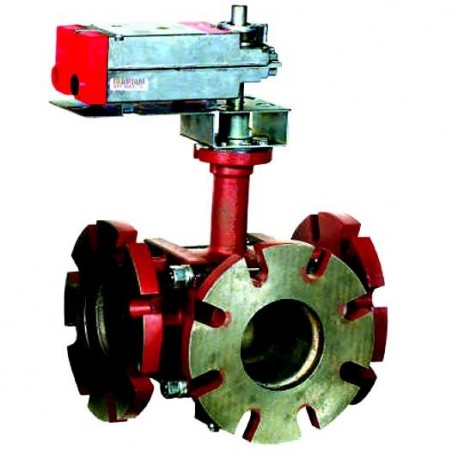

HONEYWELL VBF3J21SRC Three-Way Ball Valve Assembly

Product Description

The HONEYWELL VBF3J21SRC is a three-way ball valve assembly suitable for controlling hot and chilled water along with up to 50% glycol solutions in closed-loop HVAC systems. This valve supports both two-position and modulating functions, making it versatile for different system requirements.

• Flanged connection conforms to ANSI Class 125 standards.
• Equipped with a removable manual handle for operation during power outages.
• Constructed with a durable 316 stainless steel valve ball and stem.

Product Highlights

This assembly can be used as either a mixing or diverting valve, ensuring fluid control is efficient and effective.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3J21SRC

Technical Specifications

• Valve Sizes: from four to six inches
• Connection Type: ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Four factory-installed options available
• Fail-Safe Position: Configurable for normally open or normally closed
• Manual Operation: Removable handle included
• Seat Leakage: ANSI Class IV A-port leakage
• Enclosure: Optional NEMA 3R rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from ninety-one to six hundred fifty
• Valve Ball and Stem: Made of 316 stainless steel
• Control: Non-isolating mixing or diverting
