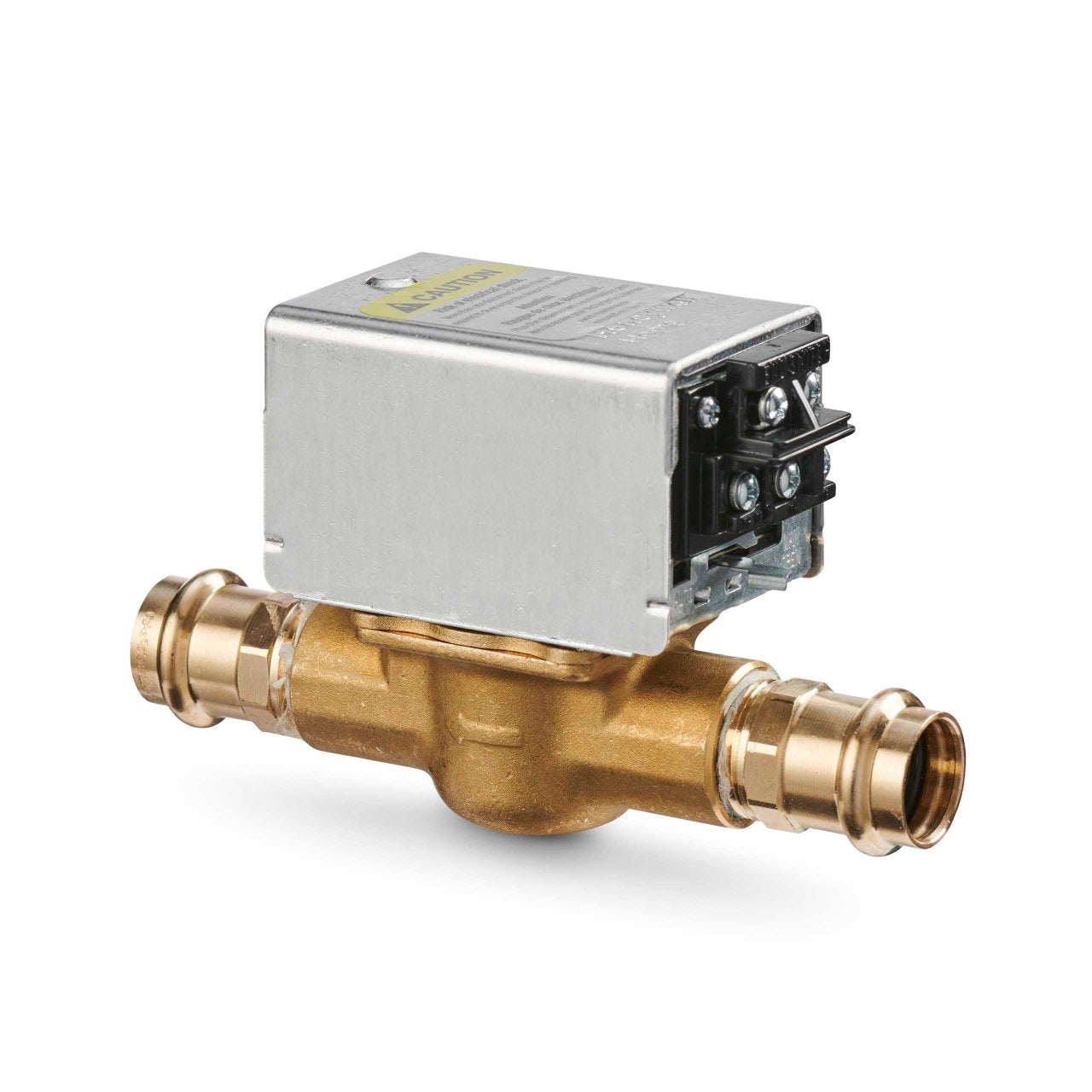

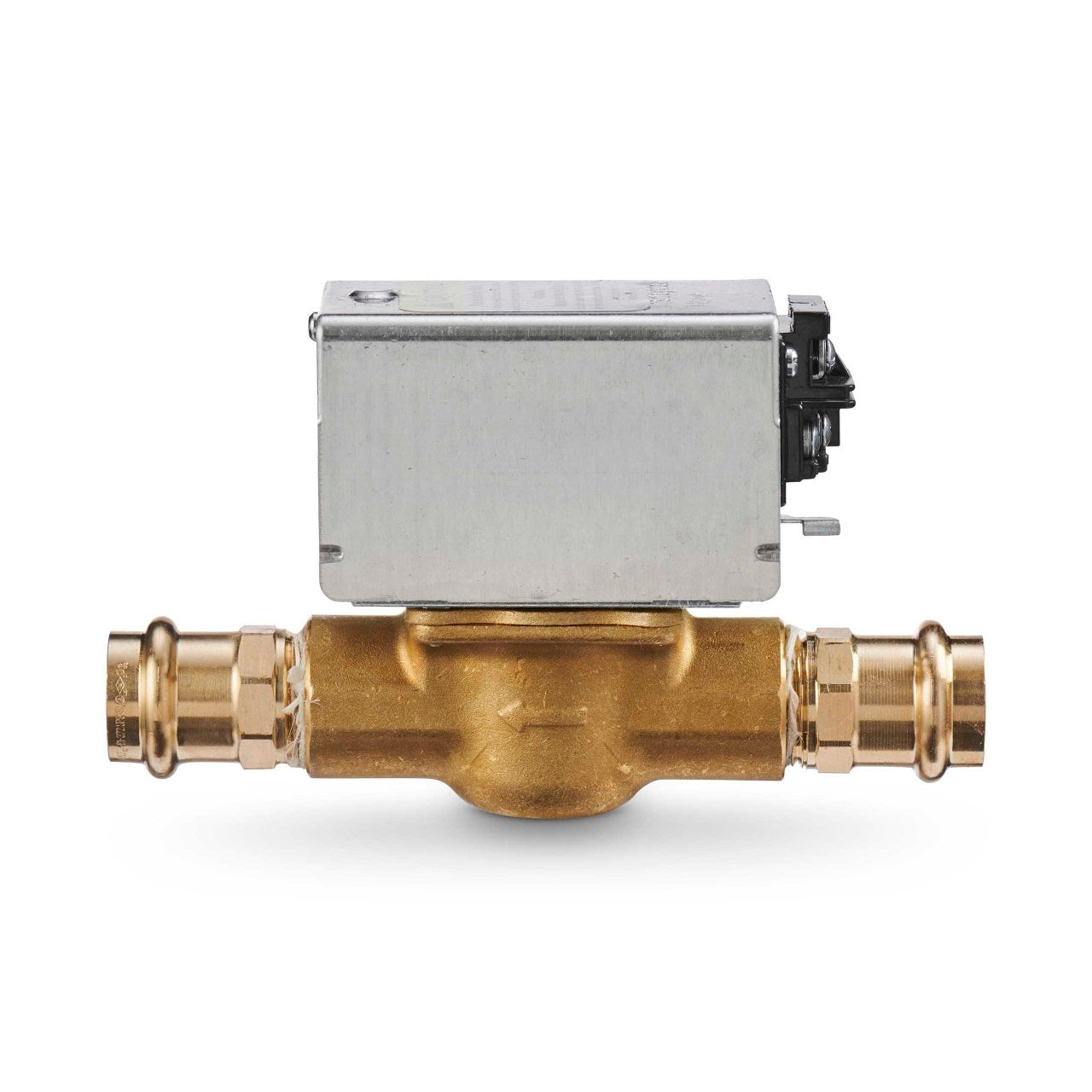

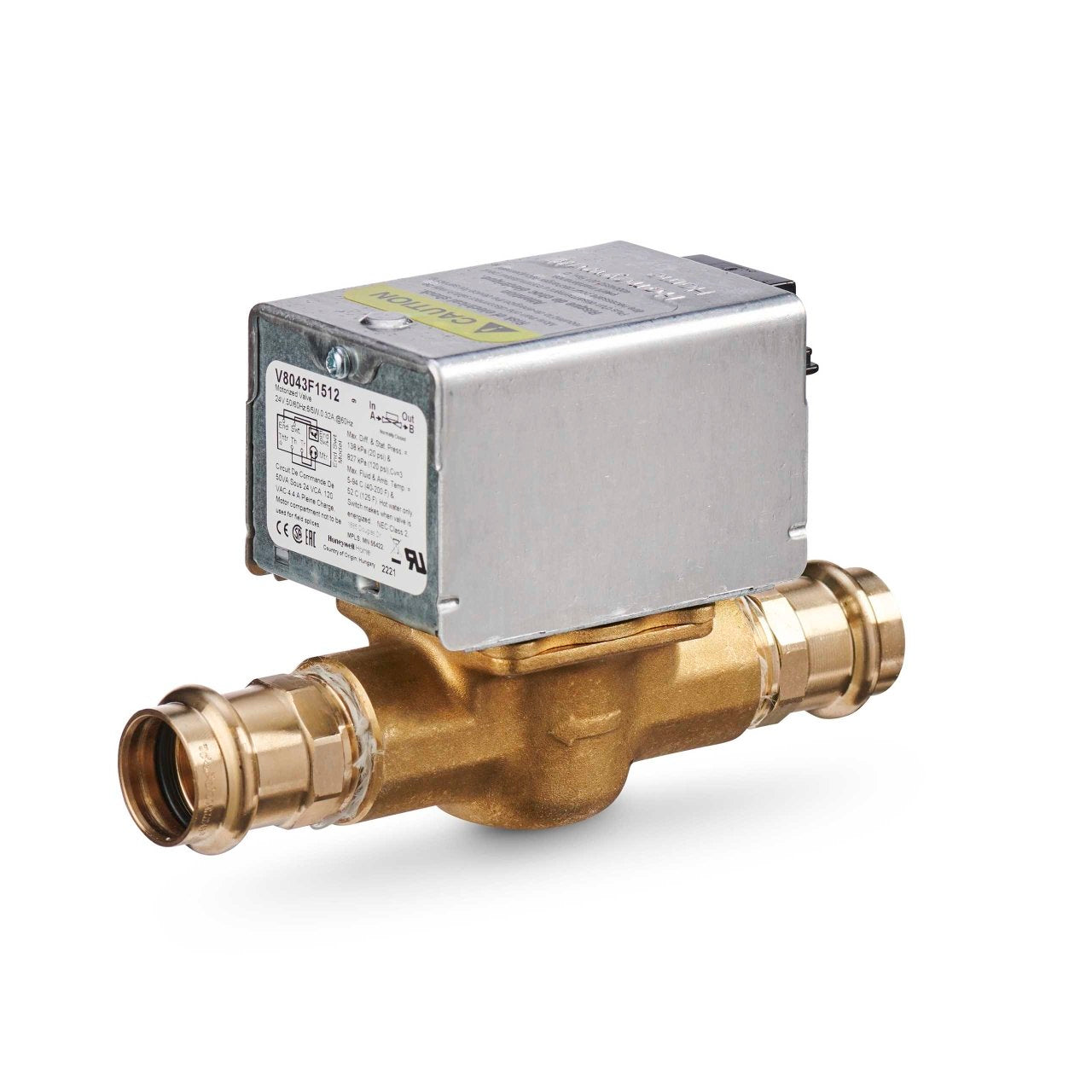

HONEYWELL V8043F1812 3/4-Inch Pro Press Zone Valve

Product Description

The Honeywell V8043F1812 is a zone valve for controlling hot water flow in plumbing systems. This unit integrates both an actuator and valve assembly. It features a manual opener, allowing operation during power outages and will return to its default position once power is restored. The valve allows for two-position straight-through water control. The complete powerhead can be replaced without the need to disconnect plumbing or drain the system.

• Includes end switch enclosure and manual opener.
• Spring return feature to close.
• Suitable for both residential and commercial use.

Product Highlights

This zone valve is designed for reliable and efficient water flow regulation.

Product Information

Standard Information

• Manufacturer Part Number: V8043F1812
• Connection Size: 3/4 inch

Technical Specifications

• Connection Type: Pro Press
• Valve Body Pattern: Two-way, Straight Through
• Flow Coefficient: 8.0 Cv, 8.0 Kv
• Static Pressure Rating: 120 psi, 827 kPa
• Differential Pressure (Max): 20 psi, 138 kPa
• Media Temperature (Min): 40 °F, 4 °C
• Media Temperature (Max): 200 °F, 93 °C
• Ambient Operating Temperature (Max): 125 °F, 52 °C
• Input Voltage: 24 V
• Electrical Connection: Screw Terminals with End Switch
• Fail-Safe Operation Type: Spring return to close
• Valve Body Material: Brass
• Valve Ball Material: Buna-N (NBR) Rubber
• Valve Plug Material: Buna-N (NBR) Rubber
• Valve Seat Material: Brass
• Valve Stem Material: Stainless Steel
• Valve Start Position: Closed
• Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
• Product Height: 4 inches
• Product Length: 6.88 inches
• Product Width: 2.37 inches
