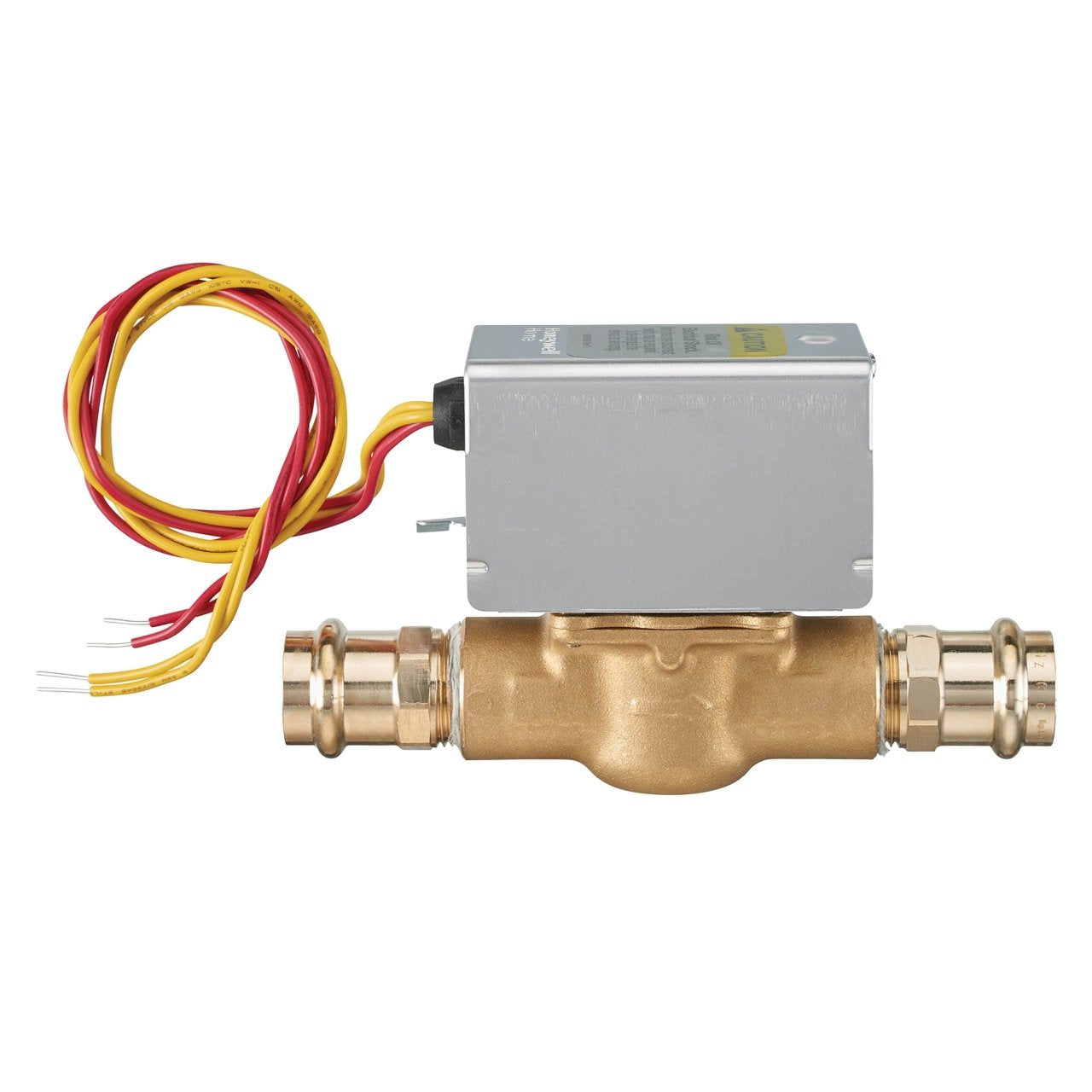

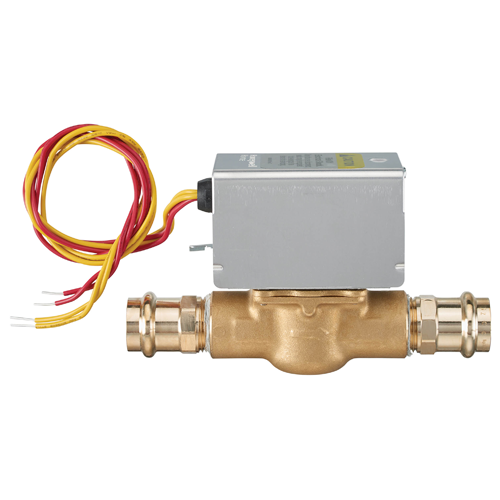

Honeywell V8043E1712 Zone Valve

Product Description

The Honeywell V8043E1712 is a zone valve that controls hot water flow in hydronic systems. It features a motorized actuator and a valve assembly designed for efficient operation. This valve allows for two-position, straight-through control of water supply. It is suitable for heat exchangers like radiators, convectors, and in-floor radiant coils. The installation process does not require disassembly.

• Provides two-position, straight-through control.
• Features a motorized actuator.
• Compatible with various hydronic systems.

Product Highlights

This zone valve is reliable for managing water flow in heating systems and is essential for maintaining optimal temperatures.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V8043E1712

Technical Specifications

• Connection Size: 3/4
• Connection Type: Press
• Flow Capacity (Cv): 3.5
• Product Type: Zone Valve
• Valve Body Material: Brass
• Valve Body Style: Straight
• Maximum Temperature: 125
• UL Listed: Yes
• CSA Certified: Yes
• FM Approved: Yes
• IAPMO Listed: Yes
• Height: 4 inches
• Length: 6.78 inches
• Width: 2.37 inches
