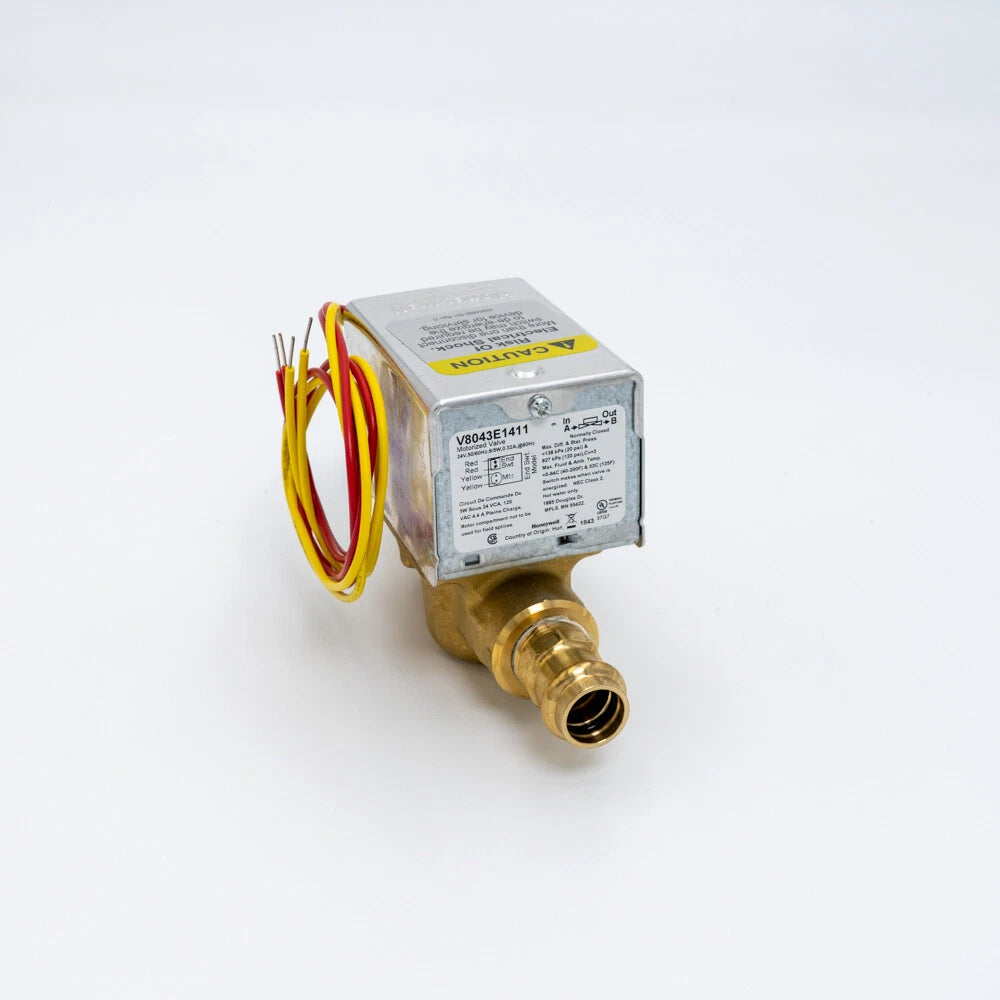

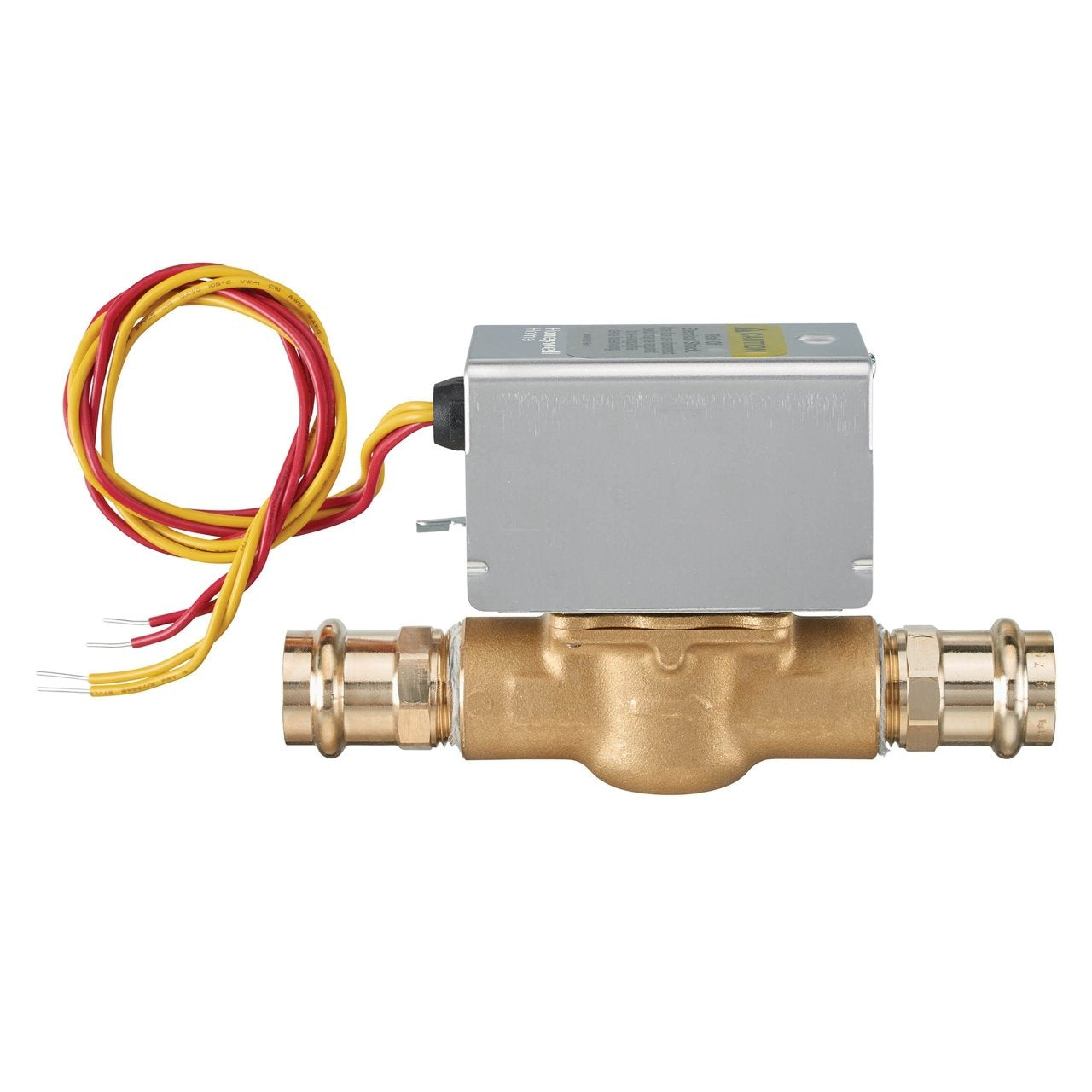

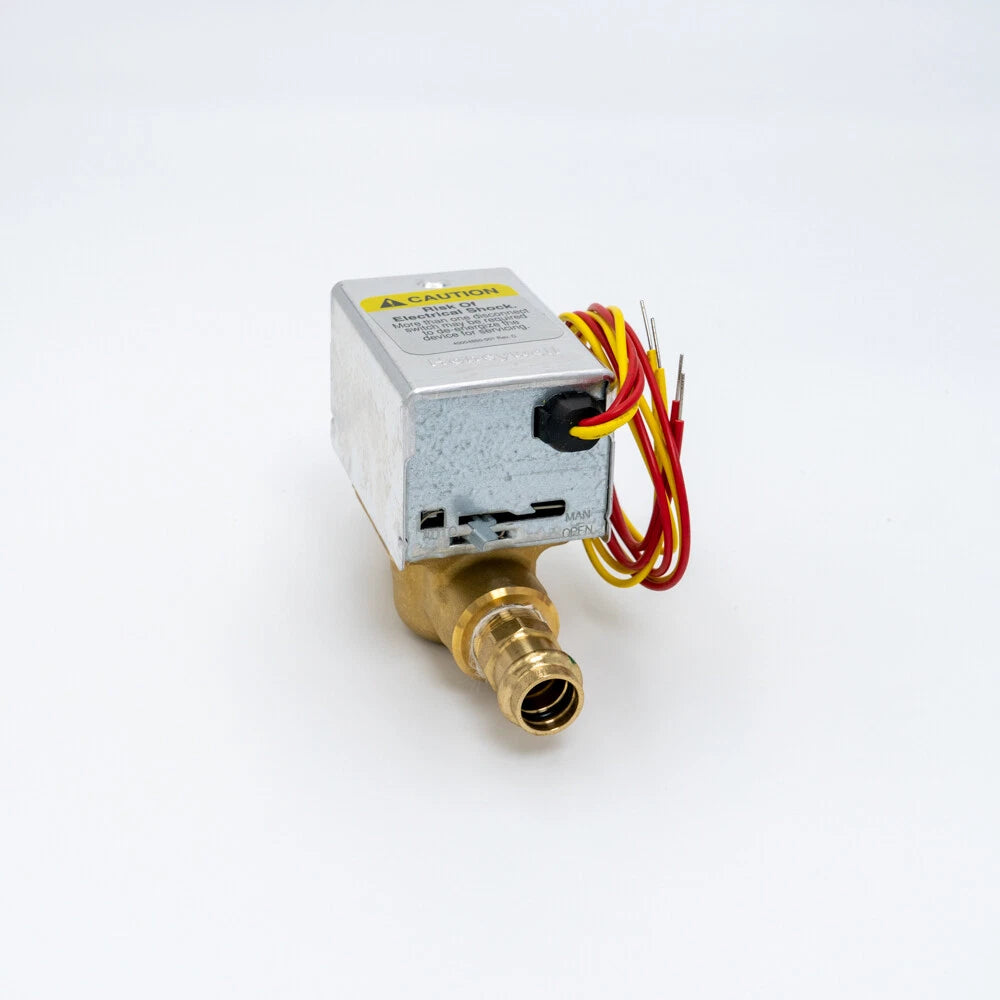

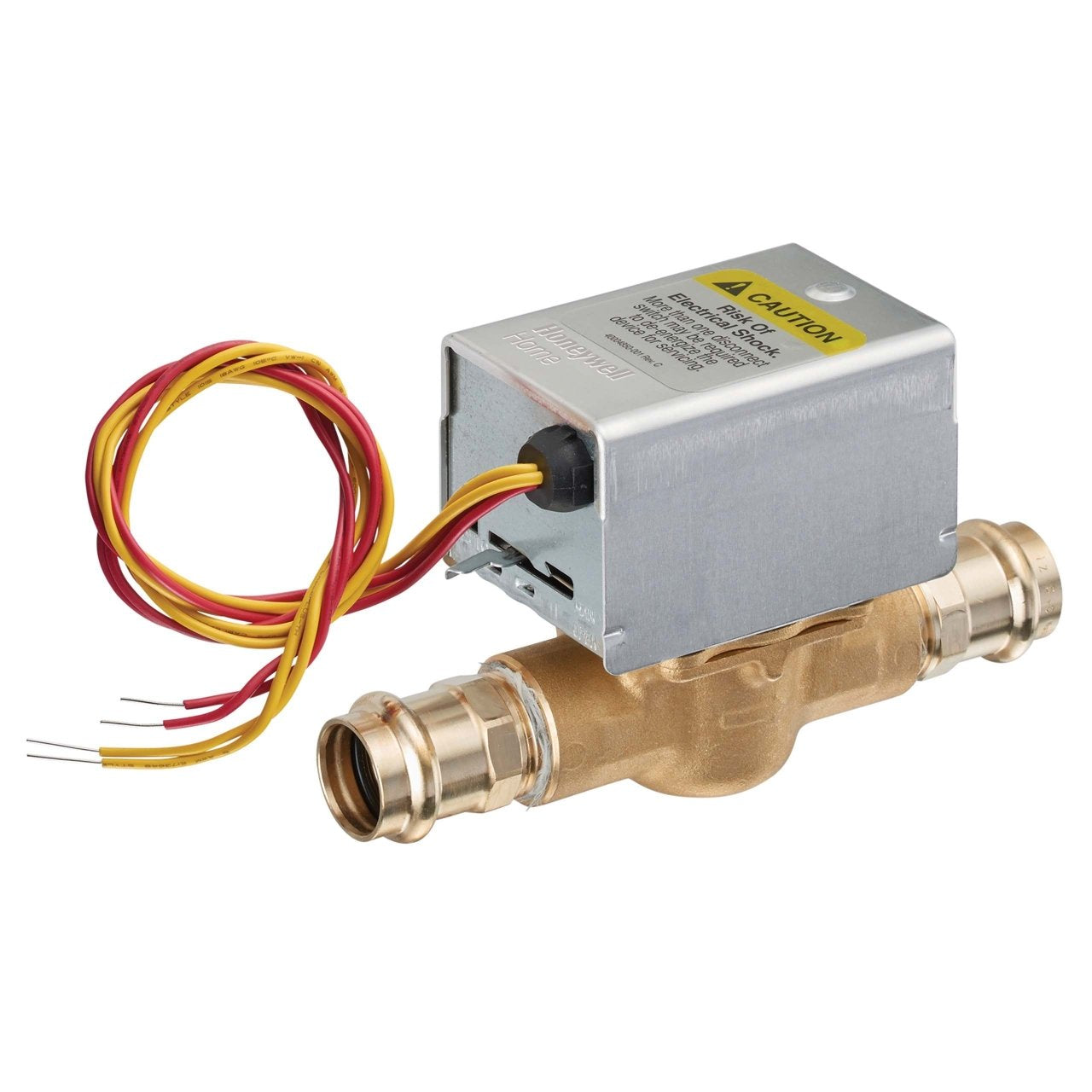

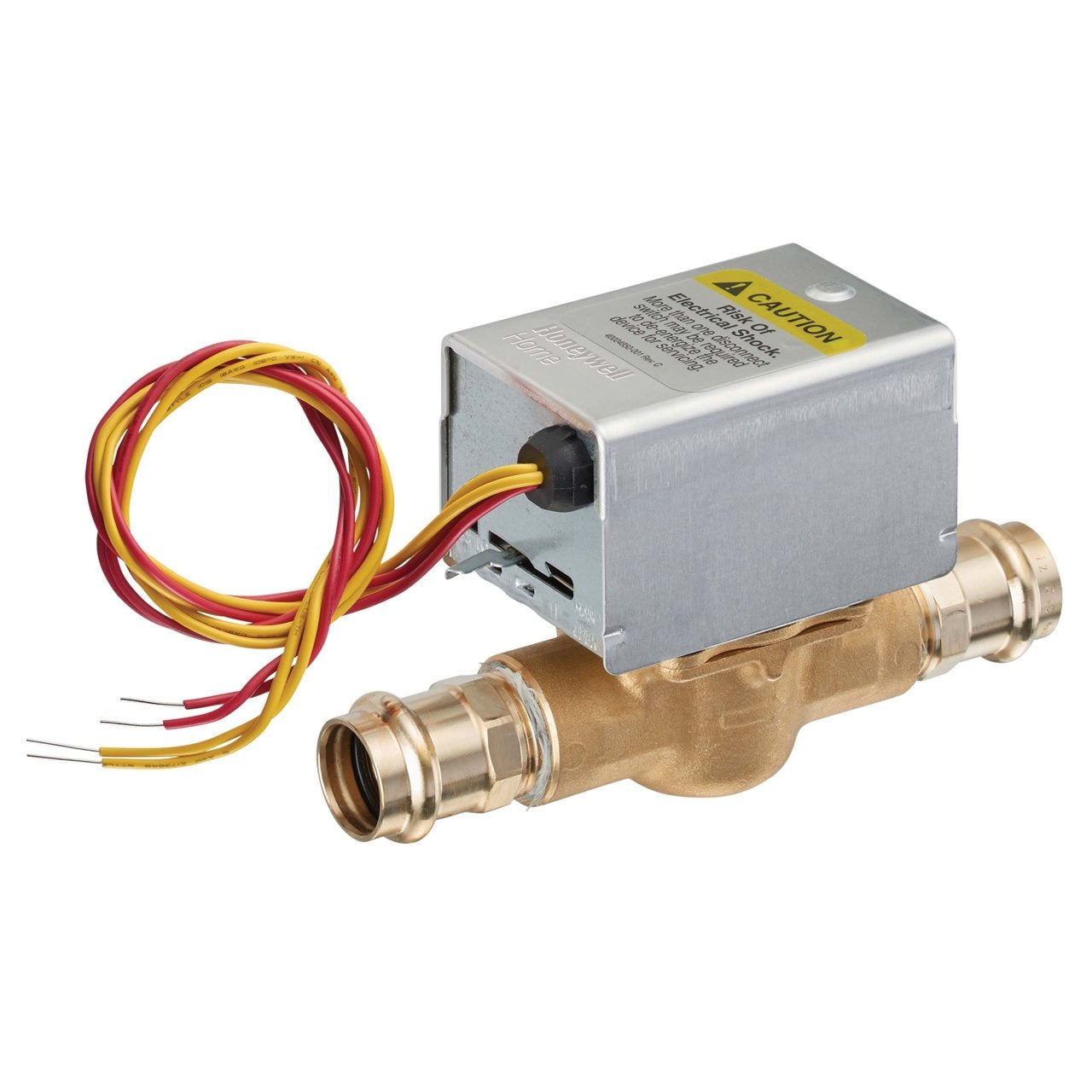

HONEYWELL V8043E1411 1/2-Inch Pro Press Zone Valve

Product Description

The Honeywell V8043E1411 is a low voltage, normally closed zone valve that offers efficient control of hot or cold water supply. It features a motorized actuator and valve assembly that provides two-position, straight-through control.

• Allows for easy installation without disassembly.
• Features spring return to close upon power loss.
• Includes manual operation for emergencies.

Product Highlights

This valve is ideal for HVAC systems, offering reliable performance in managing water flow. It is built with a brass body and Buna-N rubber components, ensuring durability and resistance to wear.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V8043E1411

Technical Specifications

• Connection Type: Pro Press
• Size: 1/2 inch
• Flow Coefficient: 3.0 Cv
• Static Pressure Rating: 120 PSI
• Actuator Control Signal: Two position
• Input Voltage: 24V
• Media Temperature (Min): 40 °F
• Media Temperature (Max): 200 °F
• Weight: 2.6 lbs
