Product Description

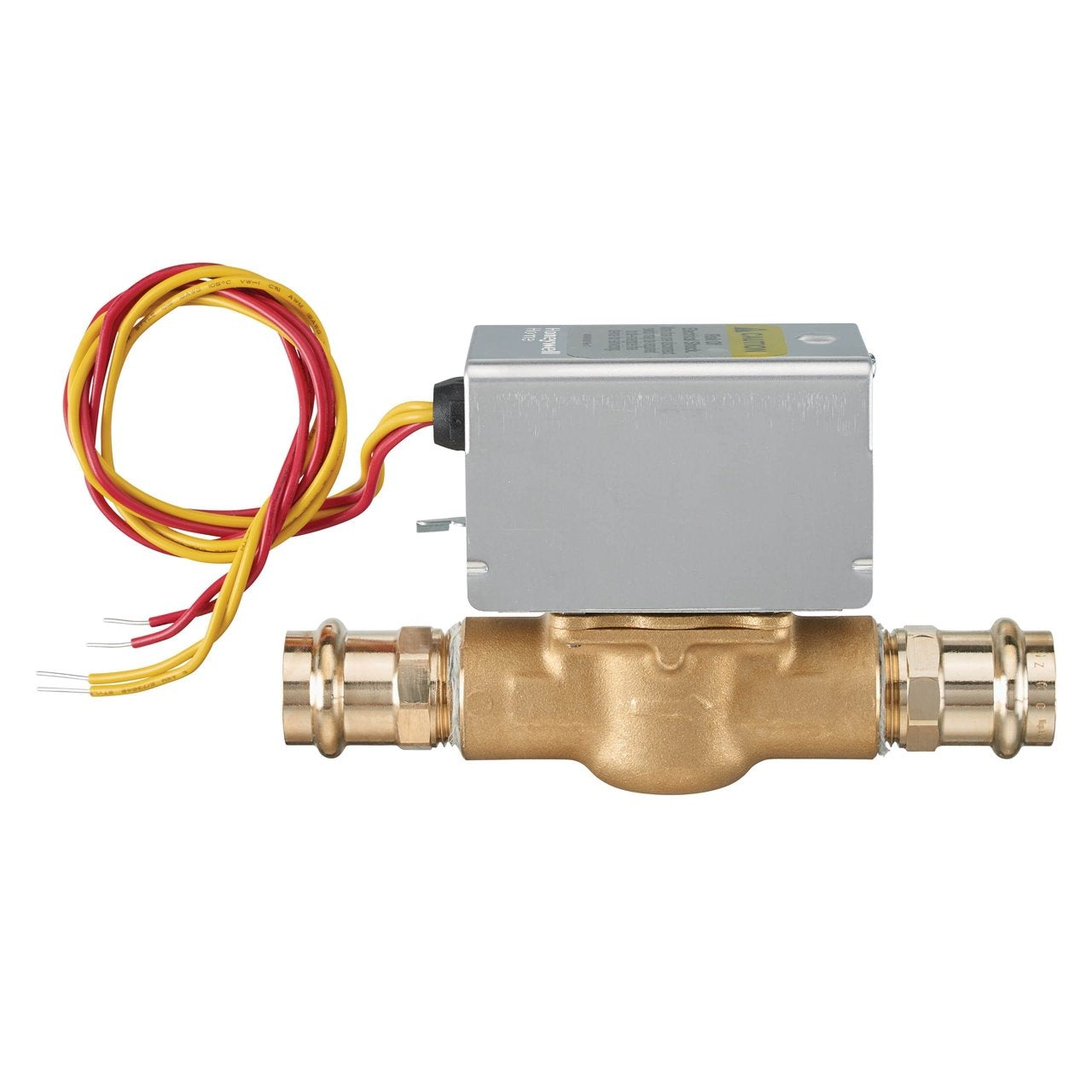

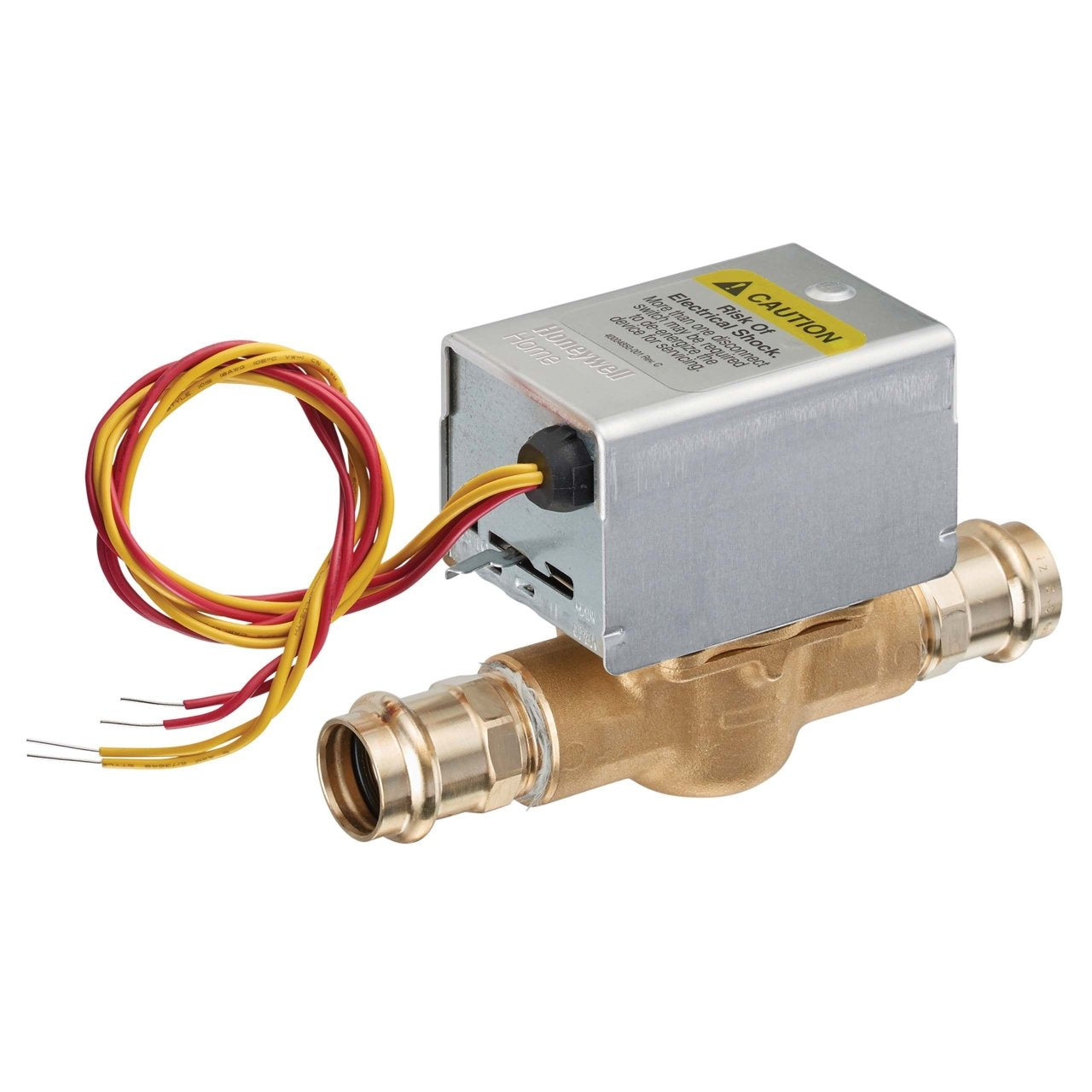

The Honeywell V8043A1612 is a zone valve for managing hot water flow in heating and cooling systems. This model consists of a motorized actuator and valve assembly designed for reliable function in both heating and potable water applications.
- Controls hot water flow to heat exchangers.
- Features a two-way, straight-through valve body pattern.
- Includes eighteen-inch lead wires for electrical connections.
Product Highlights
This valve delivers efficient control in systems like radiators, convectors, and radiant coils. Its spring return to close function ensures reliable operation when de-energized.
Product Information
Standard Information
-
Brand: Honeywell
-
MPN: V8043A1612
Technical Specifications
-
Connection Size: three-fourths
-
Connection Type: Pro Press
-
Valve Body Material: Brass
-
Valve Body Pattern: Two-way, Straight Through
-
Valve Ball Material: Buna-N (NBR) Rubber
-
Valve Plug Material: Buna-N (NBR) Rubber
-
Valve Seat Material: Brass
-
Valve Stem Material: Stainless Steel
-
Flow Coefficient: 8.0 Cv, 8.0 Kv
-
Flow Capacity (Cv): 3.5
-
Static Pressure Rating: 120 psi, 827 kPa
-
Differential Pressure for Close-off (Max): 20 psi, 138 kPa
-
Media Temperature (Min): forty degrees Fahrenheit, four degrees Celsius
-
Media Temperature (Max): two hundred degrees Fahrenheit, ninety-three degrees Celsius
-
Ambient Operating Temperature (Max): one hundred twenty-five degrees Fahrenheit, fifty-two degrees Celsius
-
Fail-Safe Operation Type: Spring return to close
-
Valve Start Position: Closed
-
Electrical Connection: two wires eighteen leads
-
Volts: twenty-four
-
Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
-
Product Height: four inches
-
Product Length: six point four one inches
-
Product Width: two point three seven inches
