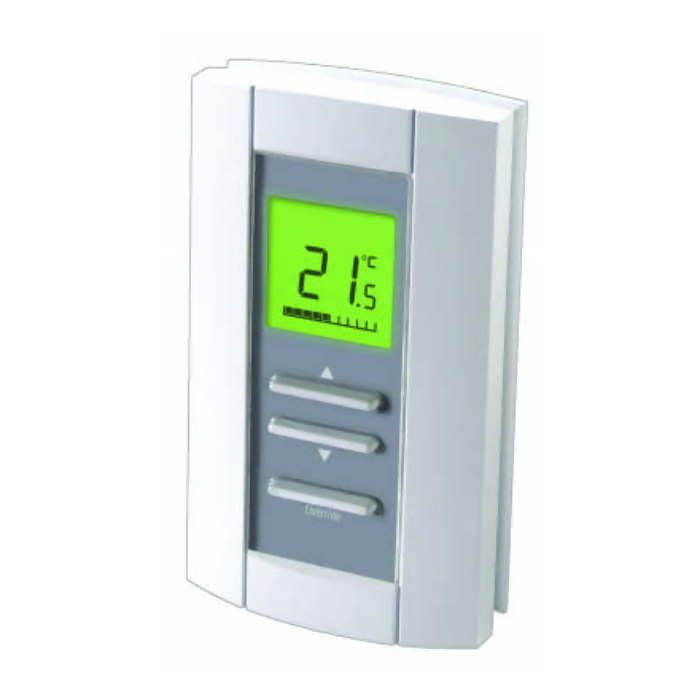

Honeywell TB7980B1005/U ZonePRO Modulating Thermostat

Product Description

The Honeywell TB7980B1005/U is a ZonePRO modulating thermostat designed for low voltage pressure dependent VAV applications. It operates within a set point temperature range of fifty degrees Fahrenheit to ninety-five degrees Fahrenheit. The thermostat features two output signal types: zero to ten VDC or two to ten VDC.

• Suitable for low-voltage pressure-dependent VAV systems.
• Additional outputs include one TRIAC and one analog output.
• Energy-saving night setback terminal is included.

Product Highlights

This thermostat supports modulating control for precise temperature management in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: TB7980B1005/U

Technical Specifications

• Dimensions: Two and five-eighths inches wide x four and nine-sixteenths inches high x one inch deep
• Supply Voltage: Twenty-four VAC
• Output Signal: Zero to ten VDC or two to ten VDC
• Setting Temperature Range: Fifty degrees Fahrenheit to ninety-five degrees Fahrenheit
• Mounting Type: Vertical
• Frequency: Sixty Hz
• Output Signal Burden: Zero point five amps max at twenty-four VAC
