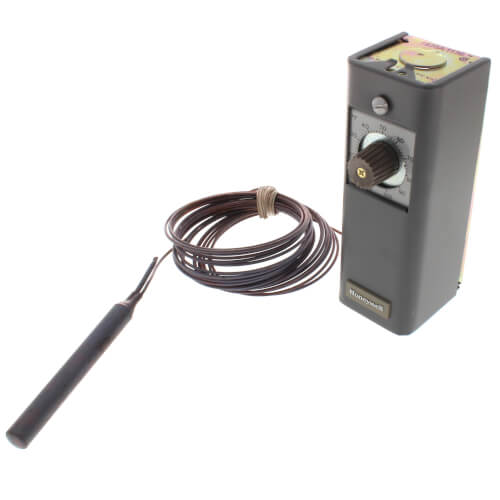

Honeywell T675A2118 Remote Bulb Commercial Temperature Controller 170 F to 260 F 5 ft Capillary

Product Description

The Honeywell T675A2118 is a remote bulb commercial temperature controller designed for regulating the temperature of air or liquids in various settings, including ducts, pipes, tanks, and boilers. This device features a temperature range of one hundred seventy degrees Fahrenheit to two hundred sixty degrees Fahrenheit and comes with a five-foot capillary tube and a copper bulb sensing element. Some applications include controlling dampers and valves in heating, cooling, and combined heating-cooling systems.

• Fast response model available for return air ducts.
• Can be mounted in any position.
• Ambient temperature compensation for enhanced control.

Product Highlights

The T675A2118 offers robust functionality for temperature regulation in commercial applications.

Product Information

Standard Information

• Application: Regulates temperature of air or liquids in ducts, pipes, tanks, and boilers
• Output Type: Relay

Technical Specifications

• Type: Remote Bulb
• Output: SPDT
• Voltage: 120 Vac or 240/277 Vac
• Frequency: 50, 60 Hz
• Dimensions: 5.625 inches high x 2 inches wide x 2.625 inches deep
• Sensor Element: Copper bulb
• Number of Sensor Inputs: 1
• Shipping Dimensions: 12.8 inches deep x 5 inches wide x 2.2 inches high
