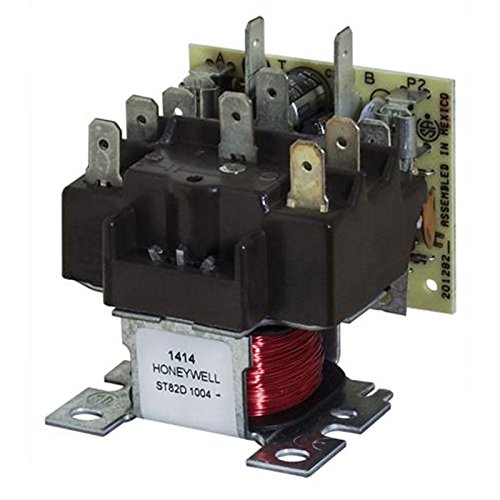

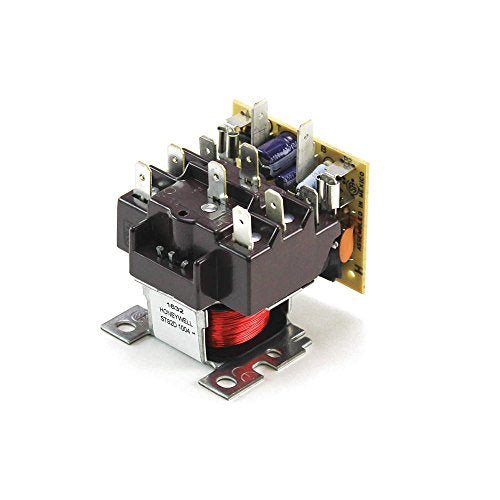

Honeywell ST82D1004 Relay/Printed Circuit 24V

Product Description

The HONEYWELL ST82D1004 is used in compressor-run air conditioning, heat pump systems, and heating-cooling systems, delaying the indoor blower shutoff after the compressor shuts off. It features an eighty-second delay on break and saves wiring time with its combination electronic time delay board and R8222 relay. Molded terminal numbers and a circuit diagram facilitate easy wiring and system checkout.

• Eighty-second delay on break
• Combination electronic time delay board and R8222 relay saves wiring time

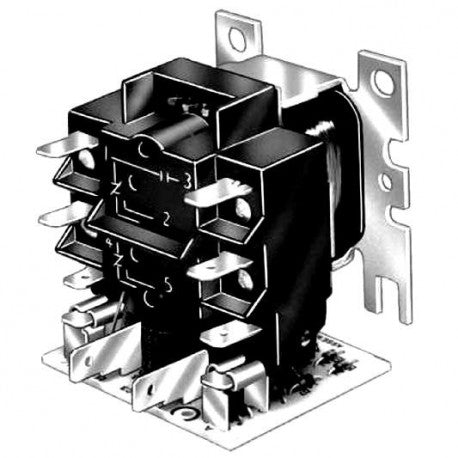

• Molded terminal numbers and circuit diagram on top of relay and letter-coded terminals on time delay board provide easy identification for wiring and system checkout

Product Highlights

The HONEYWELL ST82D1004 is ideal for HVAC systems, improving efficiency and ease of installation with its time delay function and clear terminal identification.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ST82D1004
• Country of Origin: MEXICO

Technical Specifications

• Coil Ratings Voltage: 24 Vac
• Switching: DPDT
• Electrical Connections: 1/4 in. quick-connect terminals
• Electrical Ratings (Full Load): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
• Electrical Ratings (Locked Rotor): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
• Electrical Ratings (Resistive): 15 A @ 208 Vac, 240 Vac, 277 Vac; 15 A @ 120 VAc; 10 A @ 480 Vac
• Delay Timing: 80 seconds
• Frequency: 50 Hz, 60 Hz
• Temperature Range: -20 F to 150 F
• Type: DPDT
• Voltage: 24v
• Brand: Honeywell
• Manufacturer: Honeywell, Inc.
• Model / MPN: ST82D1004
• Product Type: ELECTRONIC_COMPONENT_FAN
• Approvals, Underwriters Laboratories Inc.: UL Listed: File No. MP466, Vol. 22, Sec. 1, Guide No. MBPR2
• Approvals, Canadian Standards Association: Certified: File No. LR95329-17
• Coil Voltage: 24
• Switch Action: DPDT
• Compliance/Notes: Harmonize Code 8536.41.0050
