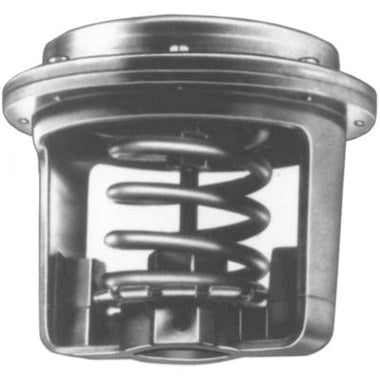

Honeywell MP953C1067/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953C1067/U is a pneumatic fail-safe spring return actuator designed for HVAC systems. It operates within a pressure range of two psi to seven psi and features a three-fourths inch stroke. This actuator is suitable for controlling the flow of steam or liquids in various HVAC applications.

• Rolling diaphragm for long life and low hysteresis.
• Direct and reverse action control.
• Can be installed after piping the valve.

Product Highlights

This actuator is essential for pneumatic control systems, ensuring reliable operation in commercial applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: MP953C1067/U
• Minimum Order Quantity: 1
• Availability: In Stock

Technical Specifications

• Dimensions: Diameter: eight inches, Height: six and a half inches
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: Zero to 140 degrees Fahrenheit
• Operating Humidity Range: 5 to 95% RH
• Stroke: Three-fourths inch
• Actuator Type: Valve Fail Safe Mode
• Actuator Force: Medium
• Air Connections: Dual barbed fitting for five thirty-seconds inch O.D. and one-quarter inch O.D. plastic tubing
