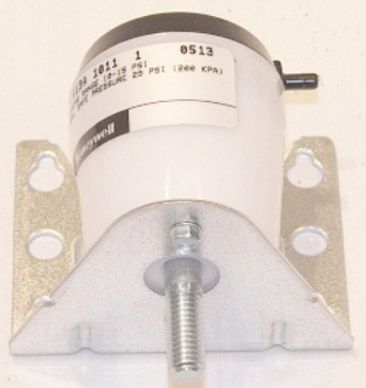

Honeywell MP913A1037 Damper Actuator 5-10 Psi

Product Description

The Honeywell MP913A1037 is a pneumatic damper actuator designed to provide proportional control of variable volume dampers in small, high-velocity air systems. It has a 5-10 psi spring range, ideal for precise positioning tasks in HVAC systems.

• Honeywell brand, model MP913A1037
• 5-10 psi spring range
• Suitable for high-velocity air systems

Product Highlights

This compact actuator includes a roll pin shaft and 90-degree bracket. It features a neoprene rolling diaphragm and can be used with or without a crank arm, making it versatile for various applications. The actuator is compatible with 1/8 NPT air connections and barbed fittings for 1/4 inch O.D. plastic tubing.

Product Information

Standard Information

• Brand: Honeywell
• Model: MP913A

Technical Specifications

• MPN: MP913A1037
• Weight: 0.55 lbs
• Size: 1-inch stroke
• Air Connections: 1/8 NPT, barbed fitting for 1/4 O.D. plastic tubing
• Spring Range: 5 to 10 psi
• Temperature Range: 50°F to 140°F
• Fail Safe Mode: Spring Return
• Max Pressure: 30 psi
