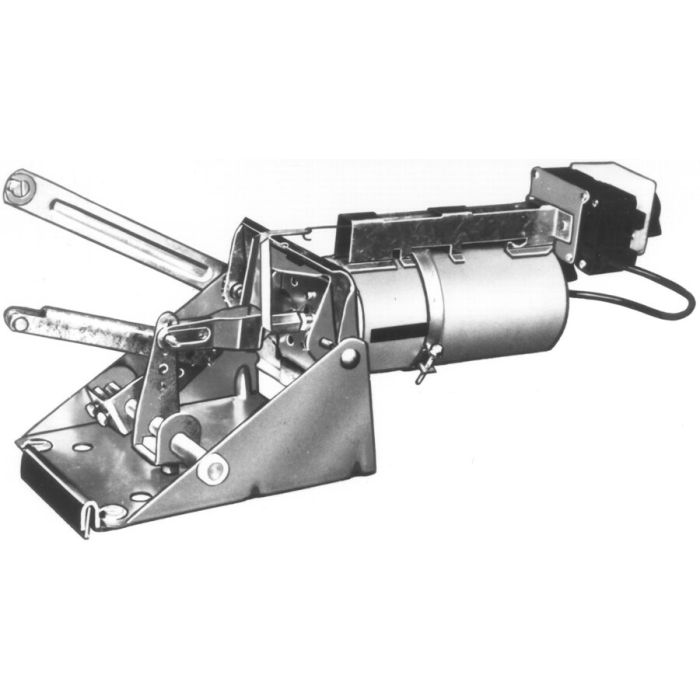

Honeywell MP909H1368/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP909H1368/U is a pneumatic fail-safe spring return actuator designed for reliable control of dampers in HVAC systems. This actuator features a combination barb connection that makes installation straightforward. Its rugged aluminum body ensures durability in various operating conditions.

• Suitable for small to medium-sized dampers
• Positive positioner with a span of 10 psi
• Spring return feature enhances fail-safe operation

Product Highlights

Perfect for proportional control in HVAC applications, offering versatility in installation and operation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP909H1368/U

Technical Specifications

• Operating Temperature: -28 F to 160 F (-33 C to 71 C)
• Stroke Length: 4 inches
• Maximum Operating Pressure: 25 psi
• Humid Operating Range: 5 to 95% RH
• Actuator Type: Damper
• Actuator Force: Medium
• Spring Range: Positive positioner 10 psi span (5 psi spring included)
• Diaphragm Effective Area: 6.6 square inches
