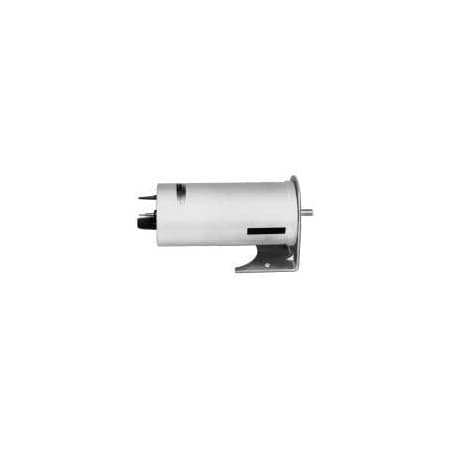

Honeywell MP909E1398 Damper Actuator Medium Force Spring Return 9 to 13 PSI Replacement MP909E1398

Product Description

Experience reliable and efficient control with the Honeywell MP909E1398 Damper Actuator. This pneumatic device is essential for managing air flow in HVAC systems, ensuring optimal environmental conditions. The actuator is crafted with a focus on durability and performance, featuring a temperature range of -28°F to 160°F and operating at pressures from 9 to 13 PSI.

• Equipped with internal N.C. trunnion mounting bracket.
• Spring return functionality for fail-safe operations.
• Dual barbed fitting for 5/32 to 1/4 O.D. tubing.

Product Highlights

The MP909E1398 is designed for applications requiring medium force actuation, with an adjustable 3-inch stroke to handle different operational demands. It excels in environments ranging from variable volume terminal units to mixing boxes and medium-sized dampers.

Product Information

Standard Information

• Brand: Honeywell
• Max Pressure (PSI): 30

Technical Specifications

• Actuator Type: Pneumatic
• Product Type: Damper Actuator
• Air Connections: 1/8 NPT, Dual Barbed fitting for 5/32 or 1/4 O.D. tubing
• Weight: 6.5 lbs
• Temperature Range (F): -28 to 160
• Dimensions: 19.1 inches (depth) x 8 inches (width) x 6.2 inches (height)
