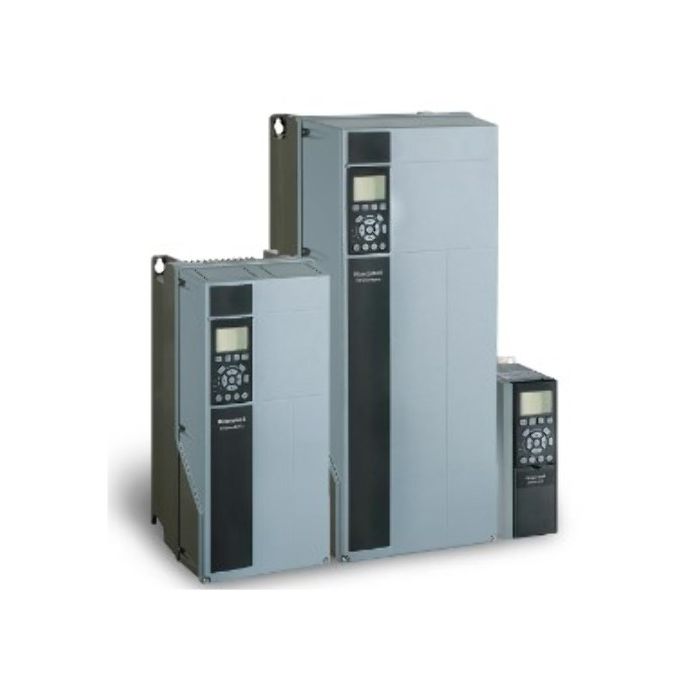

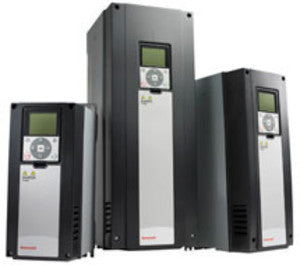

HONEYWELL HVFD3D3C1000G100C Variable Frequency Drive 100 HP

Product Description

The Honeywell Variable Frequency Drive, model HVFD3D3C1000G100C, is designed to control the speed of electric motors efficiently. It operates at four hundred sixty VAC and delivers up to one hundred horsepower, suitable for various applications including pumps and fans. This drive is capable of managing both constant-torque and variable-torque loads.

• Compatible with BACnet, Modbus, and JCI N2 for flexible communication.
• Features adjustable acceleration and deceleration times from 0.1 to 3000 seconds.
• Includes six configurable digital inputs and two relay outputs for versatile control.

Product Highlights

The VFD is built to NEMA 1 standards, offering protection for indoor usage against dust and solid objects. It is suitable for both low and high horsepower installations.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: HVFD3D3C1000G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 100 hp
• Motor Rating: 0.75 to 250 hp
• Input Voltage: 460 VAC
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs: 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Relay Outputs: Two SPDT
• Operating Temperature: 14°F to 104°F
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed, CE, RoHS
