Honeywell 1309A0041 E3pt Sensor Cartridge - C3h8

Product Description

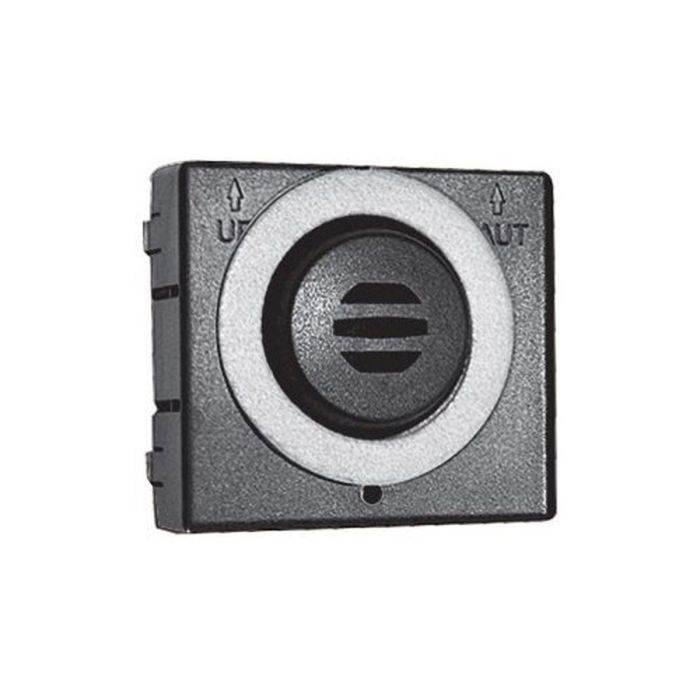

The HONEYWELL 1309A0041 E3PT sensor cartridge is a replacement sensor for E3Point toxic and combustible monitors. The E3Point is a gas detection system with a gas sensor, a control unit, and outputs such as 4-20 mA current loop, buzzer, and relays. It detects toxic and combustible gases in commercial building spaces and outbuildings.

• Detects CO, NO2, O2, H2, H2S, CH4 and C3H8 gases
• Saves energy through Demand Control Ventilation (DCV)
• Simplifies installation/maintenance through plug-n-play sensor

Product Highlights

This sensor cartridge is designed for use with Honeywell Analytics' E3Point Toxic and Combustible Monitors. It is pre-calibrated and auto-configures upon set-up.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: 1309A0041
• Country of Origin: United States

Technical Specifications

• Display: 8 character, 2 line backlit LCD
• Application: Industrial,Oil & Gas,Labs,Agriculture,Transportation,Mining
• Output Signal: Current
• Configuration: Cartridge
• Enclosure: Polycarbonate
• Mounting: Snap In Mount
• Sensors Application: Gas Specialty
• ADI Part Number: H8-1309A0041
• Brand Name: Honeywell Analytics / Vulcain
• Manufacturer Part Number: 1309A0041
• Country of Origin: US
• Brand: Honeywell
• Sub-Category: Gas Detection Sensors & Transmitters
• Minimum Temperature: -40 CO: -20 to 50 CO: -4 to 122
• Alarm Included: Yes
• Alarm Type: >85 dBA @3m (10 ft)
• Analog Output Signal Current: 4 to 20 mA
• Analog Output Signal Type: mA
• Display Included: Yes
• Display Matrix: 8 Character, 2 Line Backlit LCD
• Features & Benefits: Advanced Sensing Technology|Cost Effective|Flexible Operation|Plug-N-Play Ease|Range of Accessories|Versatile Communications
• Relay Output Configuration: 2 DPDT
• Relay Rated Load: 5A @250 VAC, 5A @30 VDC
• Relay Included: Yes
• Sampling Pump Included: No
• Sensors Included: 1
• Maximum Operating Current: 20 mA
• Visual Indicators: Amber LED 1: Alarm/Fault|Amber LED 2: Alarm/Fault|Green LED: Power
• Accuracy:
• Enclosure Material: Polycarbonate
• Power Requirement: 24 VAC Nominal (17 to 27 VAC), 50/60 Hz, 0.35A|24 VDC Nominal (20 to 38 VDC) with Remote Sensor: 7W
• Product Type: Commercial Gas
• Industry: Energy

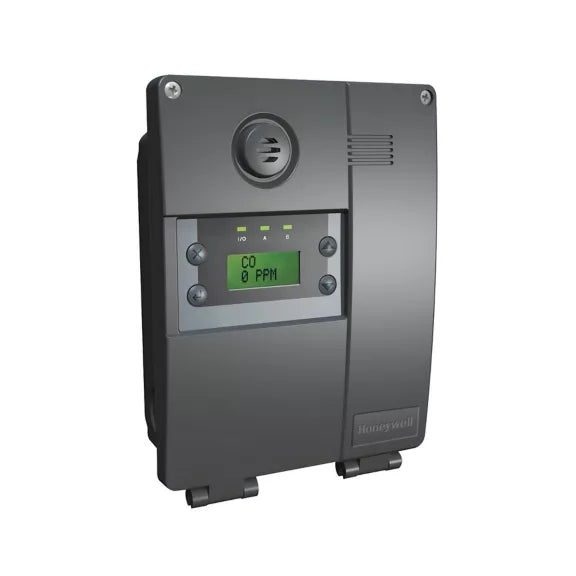

• Use: Wall or duct-mounted gas detector for monitoring carbon monoxide (CO), nitrogen dioxide (NO2), oxygen (O2), methane (CH4), hydrogen (H2), hydrogen sulphide (H2S), and propane (C3H8), installed as a standalone device with single-gas or dual-gas monitoring.
• Optional Main AC Input: 120Vac nominal,
• Relay Output: 2 DPDT relays, 5A @ 250Vac; 5A @ 30Vdc
• Communications: 4-20mA
• Operating Environment: Commercial, Indoor, Extreme Temperature Environments
• Operating Temperature: H2S, NO2, O2, CH4, H2, C3H8: -40 to 50 CO: -20 to 50
• Sensor Type: Electrochemical cell (CO, NO2, H2S, O2); catalytic (CH4, H2, C3H8,)
• Response Time: T90 < 50 seconds With ECLAB T90 < 240 seconds
• Audible Alarm: >85 dBA at 3 m (10 ft)
• Gas: CO (Carbon monoxide)
• Resolution: 1 ppm
• Range: 0-100% LEL
• Alarm A: 25% LEL
• Alarm B: 50% LEL
• Alarm C: 90% LEL
• H2S (Hydrogen sulfide): 0.1 ppm
• NO2 (Nitrogen dioxide): 0.1 ppm
• O2 (Oxygen): 0.1% vol.
• H2 (Hydrogen): 0.5% LEL
• CH4 (Methane): 0.5% LEL
• C3H8 (Propane): 0.5% LEL
• Certification: CSA C22.2 No. 61010-1, UL 61010-1; FCC part 15; ICES-003 issue 4; ISO 9001-2008
