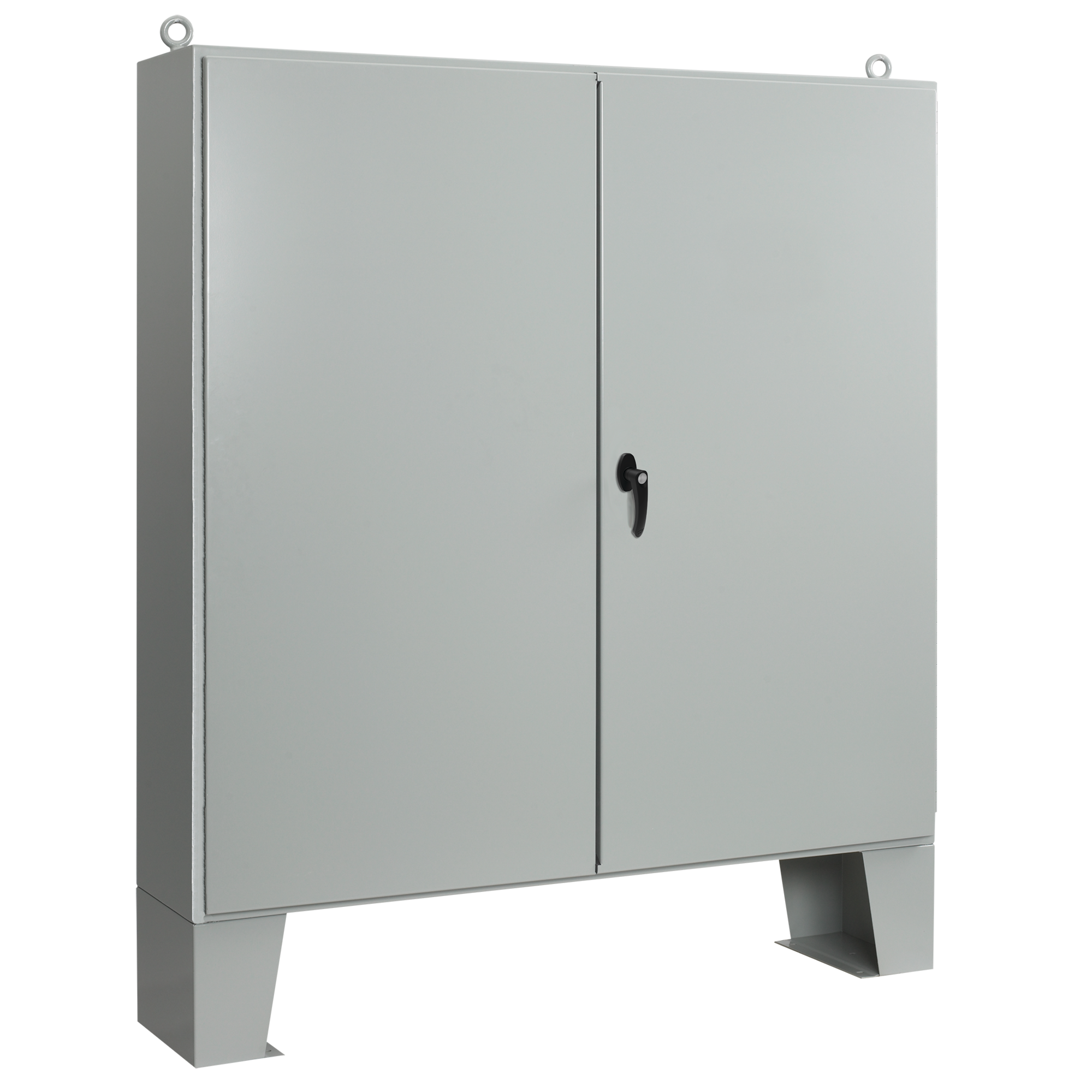

Hoffman A604816LP Two Door W/Floor Stands Type 12 Enclosure

Product Description

The Hoffman A604816LP is a two-door enclosure with floor stands. It is a Type 12 enclosure measuring sixty point six by forty-eight point six by sixteen point six inches. The design includes gasketed, overlapping doors for protection from outdoor conditions. Floor stands offer added height and easier access. The design allows for quick panel installation and removal due to the absence of a centerpost.

• Conductive panels include A60P48G.
• Seams are continuously welded and ground smooth.
• The enclosure has a three-point latch operated by an oil-tight key-lock handle.

Product Highlights

This enclosure provides reliable protection for electrical equipment in challenging environments.

Product Information

Standard Information

• Type: 12
• Brand: Hoffman

Technical Specifications

• Material: Steel
• Gauge: 12 ga
• Panel Gauge: 10
• A x B x C: sixty point six x forty-eight point six x sixteen point six inches
• Panel Size: fifty-six x forty-four inches
• Interior Color: White
• Finish: Powder Coated
• IP Rating: IP55
• NEMA Rating: 12 Indoor; dust-resistant
• Weight: four hundred thirteen lb
