Hestan 26363 Wire Harness Rangetop Range 485GD

Product Description

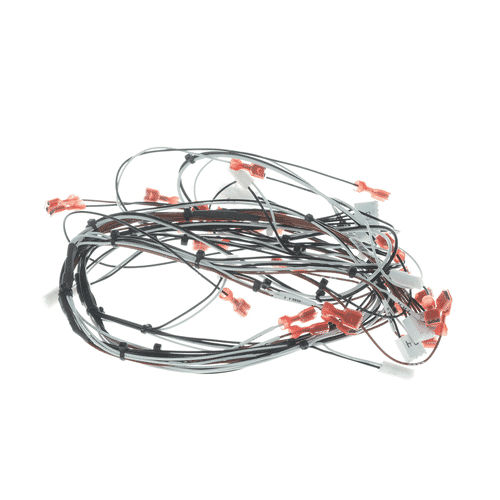

The HESTAN 26363 is a replacement wire harness designed for use in HESTAN 485GD series rangetops and ranges. Wire harnesses route and protect the low-voltage and line-voltage wiring that connects ignition modules, control boards, burner valves, and other electrical components throughout the appliance. This harness carries a VW-1 and FT1 flame rating, indicating it meets recognized standards for flame resistance in appliance wiring applications. Installation is typically performed by a licensed appliance technician or qualified service professional during a range or rangetop service call.

This wire harness is intended for HESTAN 485GD series cooking appliances, including rangetop and range configurations. It is a direct service replacement part, suited for restoring proper wiring continuity when the original harness is damaged, chafed, melted, or has failed continuity testing. Compatible service units include KRD485GD-SERVICE, KRG485GD-SERVICE, and KRT485GD-SERVICE configurations.

Key Features

• VW-1 and FT1 flame-rated insulation for appliance wiring safety compliance
• Direct OEM-style replacement for 485GD series rangetops and ranges
• Routes and protects wiring between ignition, control, and valve components
• Designed for service replacement in KRD485GD, KRG485GD, and KRT485GD units

Compatibility

Compatible with HESTAN 485GD series rangetops and ranges serviced under the following units: KRD485GD-SERVICE, KRG485GD-SERVICE, and KRT485GD-SERVICE.

Installation Notes

Installation should be performed by a licensed appliance technician or qualified service professional. Before beginning any wiring harness replacement, disconnect the appliance from its power source at the circuit breaker or by unplugging the unit. Route the replacement harness along the original path, securing all connectors fully before restoring power. Consult the appliance service manual for connector locations and proper harness routing to avoid contact with hot surfaces or sharp edges.

Technical Specifications

• Flame Rating: VW-1 / FT1
• Application: Rangetop and Range, 485GD Series

Standard Information

• Brand: HESTAN
• Manufacturer Part Number: 26363
