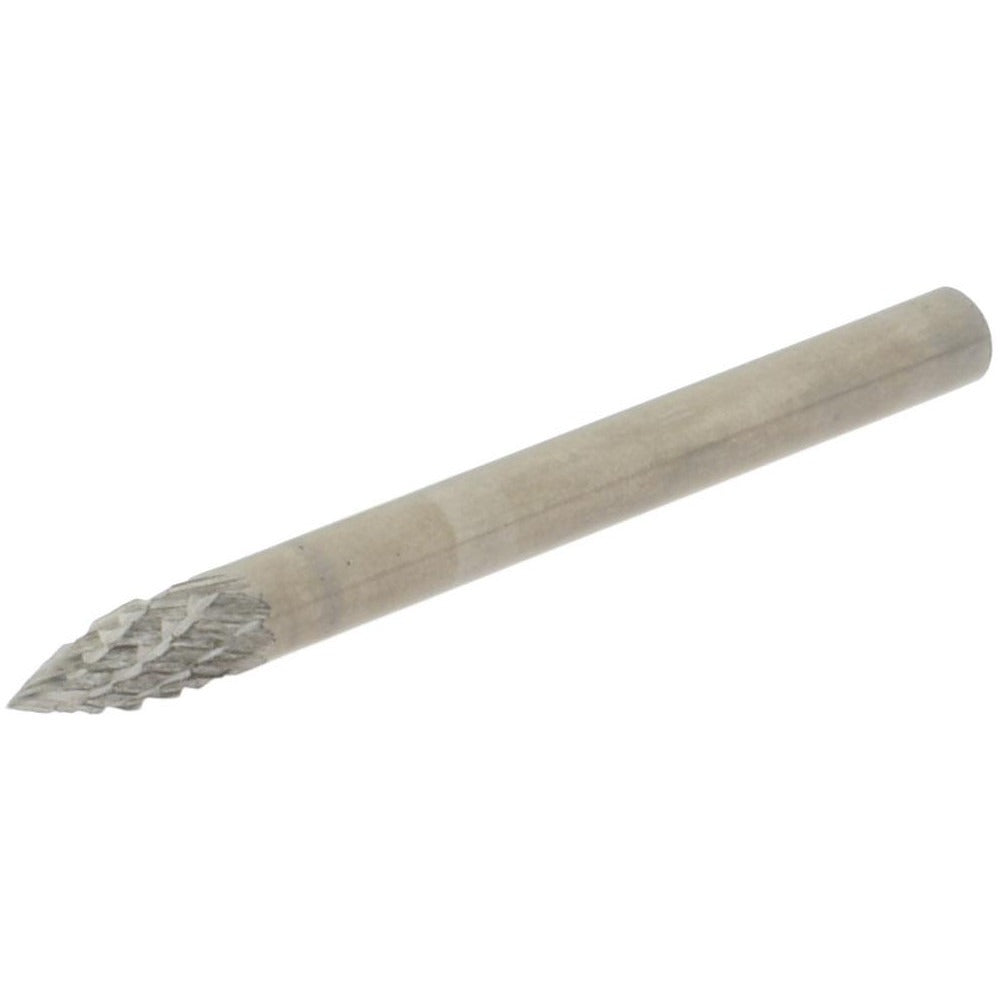

Hertel SZ20008T Abrasive Bur Tree Solid Carbide 1/8 in

Product Description

The HERTEL SZ20008T is a solid carbide abrasive bur with a tree with pointed end head shape, designed for material removal, deburring, and contouring in metalworking and fabrication applications. It features a double cut tooth style, which delivers faster stock removal and produces a smoother finish compared to single cut tools. The shank diameter measures 1/8 inch and the length of cut measures 1/4 inch. This bur is uncoated solid carbide construction, offering hardness and wear resistance suitable for use on ferrous and non-ferrous metals, plastics, and composite materials. It is installed by machinists, toolmakers, and die grinders operators working in production or maintenance environments.

The SZ20008T is suited for use in die grinders, rotary tools, and flexible shaft machines. Its tree with pointed end geometry makes it effective for working in contoured cavities, angled surfaces, and tight access areas. The 1/8 inch shank is a standard size compatible with a wide range of collet-equipped rotary power tools used in metal fabrication shops, maintenance facilities, and general machining operations. The double cut pattern handles cross-cutting tasks efficiently and clears chips well during continuous use.

Key Features

• Tree with pointed end head shape for contoured cavity and angled surface work
• Double cut tooth style for faster stock removal and improved chip clearing
• Solid carbide construction for hardness and extended tool life
• Uncoated finish — no additional coating to delaminate under heat or pressure
• 1/8 inch shank fits standard collets on most rotary and die grinder tools
• 1/4 inch length of cut provides focused material engagement

Compatibility

Designed as a standard SG-41 specification abrasive bur for use in die grinders and rotary tools accepting a 1/8 inch shank collet.

Installation Notes

Installation is performed by machinists or fabricators using a collet-equipped die grinder or rotary tool. Ensure the tool is fully powered down and the collet is securely tightened before operation. Follow the tool manufacturer guidelines for maximum RPM rating to avoid bur failure. Wear appropriate eye protection and follow applicable shop safety procedures when operating rotary cutting tools.
