Hertel SZ0031B Abrasive Bur Ball Double Cut Solid Carbide

Product Description

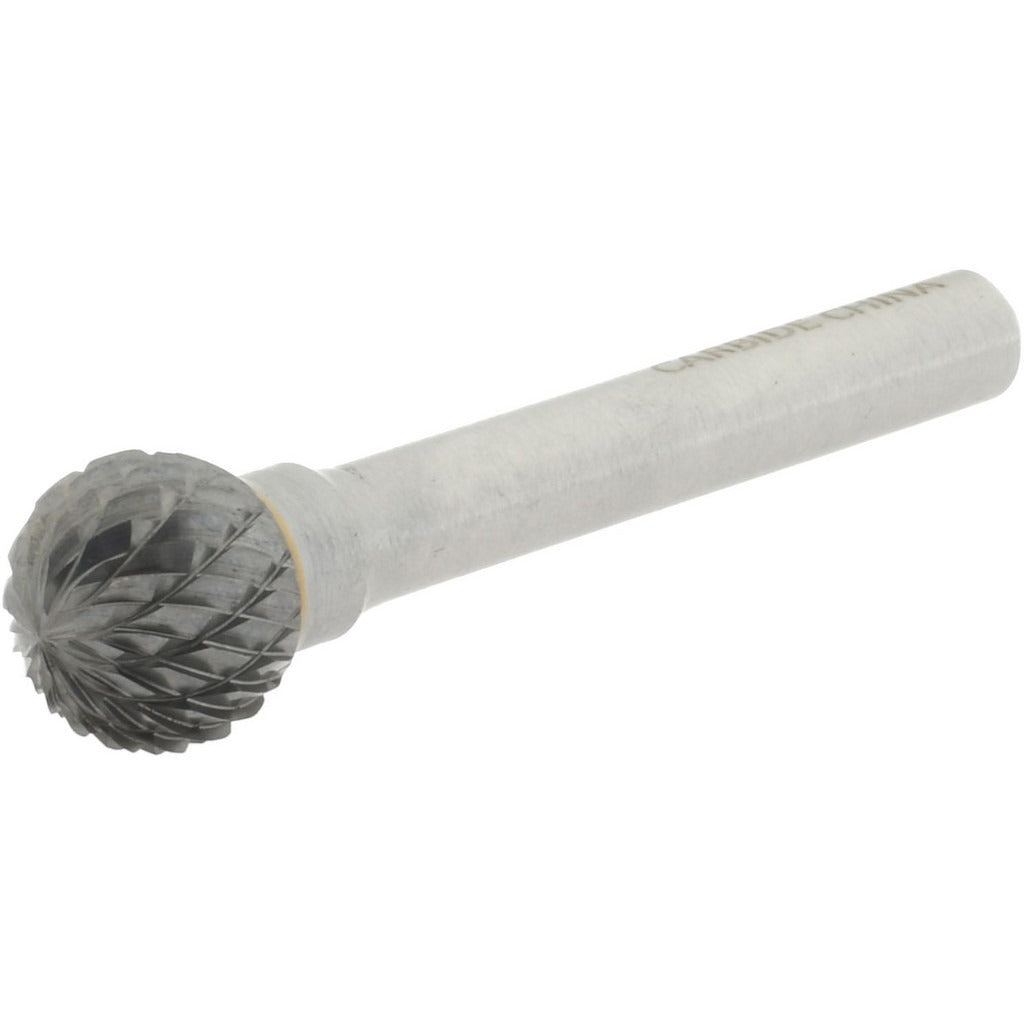

The HERTEL SZ0031B is a solid carbide abrasive bur in a ball head shape, designed for material removal, deburring, and surface finishing in metalworking and fabrication applications. Built to the SD-5 industry specification, this bur features a 1/2-inch cutting diameter and a 1/4-inch shank diameter. The double-cut tooth style produces a faster cut rate with a finer finish than single-cut burs, making it well-suited for work on ferrous and non-ferrous metals, hardened steel, and cast iron. The uncoated solid carbide construction provides consistent hardness and wear resistance across the cutting surface.

This bur is used in die grinders and rotary tools in industrial, tool-and-die, and maintenance repair operations. Typical applications include weld blending, port and cavity work, chamfering, and contour finishing on metal workpieces. The ball shape allows access to concave surfaces, internal radii, and rounded cavities where flat or cylindrical burs cannot reach. It is sold individually and suits both production floor and bench work environments.

Key Features

• SD-5 industry specification ball-shape carbide bur
• 1/2-inch cutting diameter for moderate material removal
• Double-cut tooth style for faster stock removal with smoother finish
• Solid carbide head construction for hardness and long service life
• Uncoated head — no coating buildup or flaking during use
• 1/4-inch shank fits standard die grinder and rotary tool collets

Compatibility

Designed as an OEM-style replacement or direct-fit bur for die grinders and rotary tools accepting a 1/4-inch shank collet.

Installation Notes

Installation and use should be performed by machinists or fabricators familiar with rotary cutting tools. Always confirm the tool spindle is fully stopped and the grinder is powered off before inserting or removing the bur. Inspect the shank and cutting head for cracks or chips before each use and do not exceed the maximum RPM rating of the rotary tool. Use appropriate eye protection and work-holding devices when operating carbide burs on metal workpieces.
