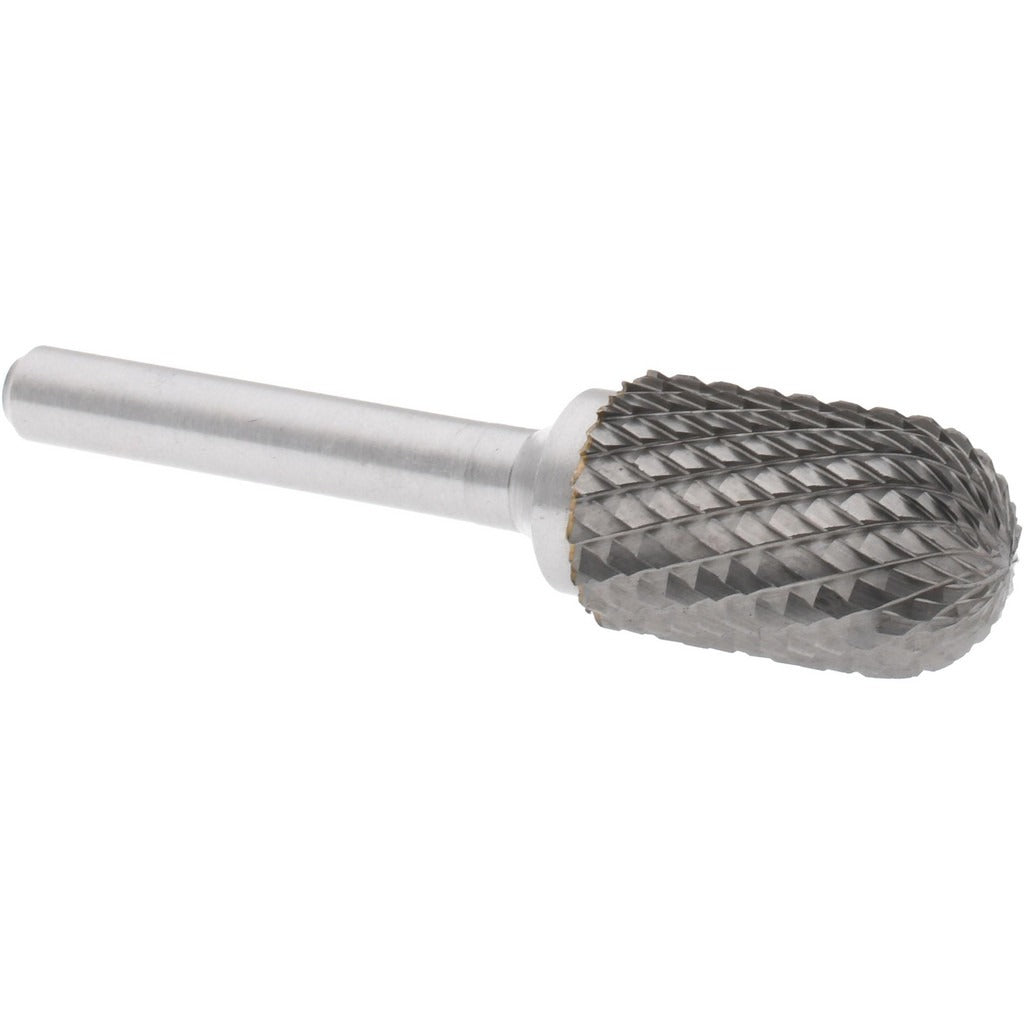

Hertel SZ0030CW Abrasive Bur Cylinder Radius Double Cut

Product Description

The HERTEL SZ0030CW is a solid carbide rotary abrasive bur ground to the SC-6 industry specification with a cylinder and radius end head geometry. It is designed for material removal, deburring, shaping, and finishing in metal, composites, and hard materials. The cutting head measures 5/8 inch in diameter with a 1-inch length of cut and mounts on a 1/4-inch shank. The double-cut tooth pattern produces faster stock removal than single-cut styles while leaving a smoother surface finish. Machinists, tool-and-die technicians, fabricators, and maintenance mechanics install this bur in pneumatic die grinders and rotary tools.

This bur is suited for precision deburring and contouring operations on workpieces where the cylinder-with-radius profile is required to blend internal radii, clean up welds, or shape pockets. The SC-6 designation identifies the head shape within the standard rotary file and bur classification system, making it straightforward to cross-reference against equivalent tooling from other manufacturers. It is a single-piece unit sold individually and fits standard 1/4-inch collet die grinders used across metalworking, maintenance, and manufacturing environments.

Key Features

• SC-6 industry specification cylinder with radius end geometry for blending and contouring
• Double-cut tooth style for fast material removal with a controlled surface finish
• Solid carbide construction provides hardness and wear resistance in demanding applications
• 5/8-inch cutting diameter with a 1-inch length of cut
• 1/4-inch shank diameter fits standard die grinder collets
• Uncoated head — no coating to chip or delaminate during aggressive cutting

Compatibility

Designed as a direct-fit replacement for SC-6 rotary burs in any pneumatic or electric die grinder or rotary tool equipped with a 1/4-inch collet.

Installation Notes

Install in a pneumatic die grinder or rotary tool with a 1/4-inch collet. Ensure the collet nut is securely tightened before operation and that the workpiece is properly secured. Wear appropriate eye and face protection when operating rotary burs. Do not exceed the maximum RPM rating of the tool or the bur.
