Hertel SZ0024C Abrasive Bur Cylinder 5/8 in Solid Carbide

Product Description

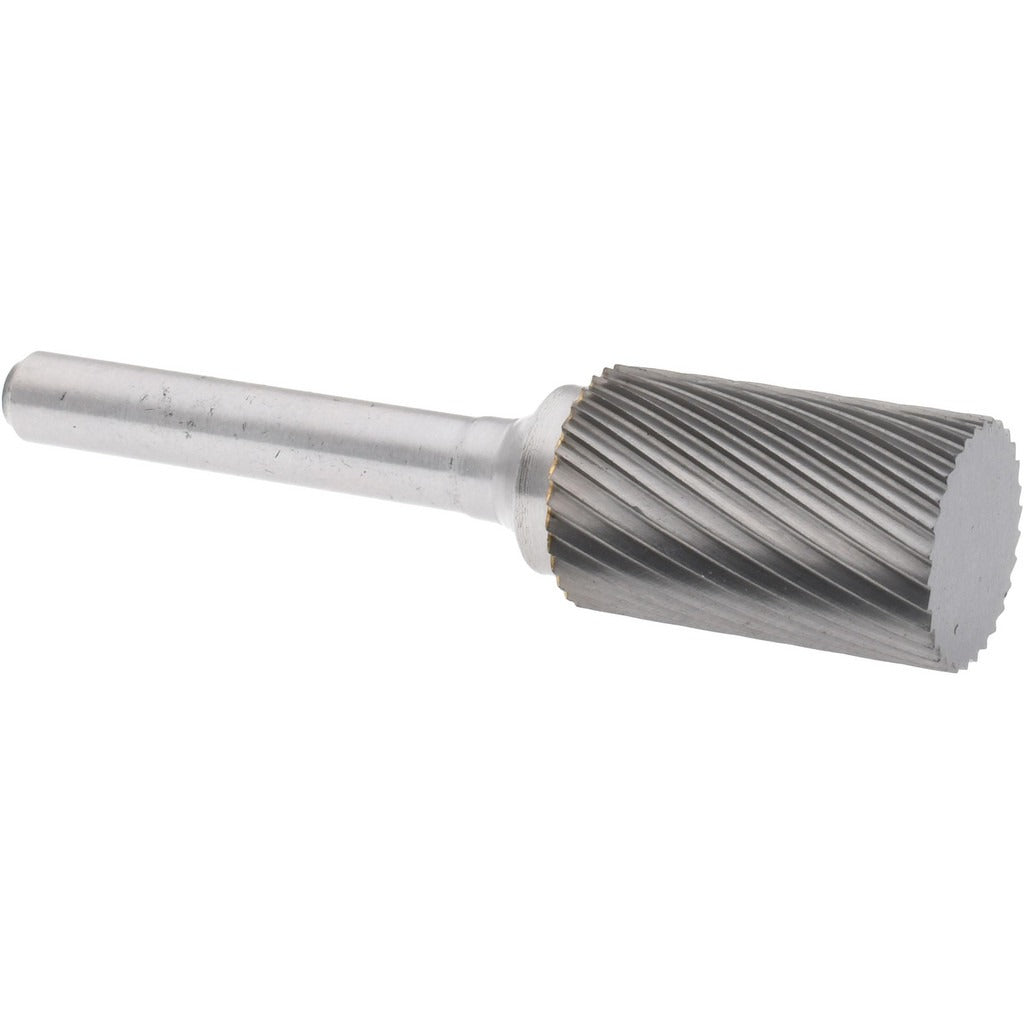

The HERTEL SZ0024C is a solid carbide abrasive bur designed for material removal, deburring, and surface blending in metalworking applications. This bur features a cylinder with flat end head shape and meets industry specification SA-6. The 5/8-inch cutting diameter and 1-inch length of cut provide consistent stock removal across a range of workpiece geometries. The single-cut tooth style delivers moderate chip clearance and a smooth finish, making it well-suited for ferrous metals. The 1/4-inch shank fits standard die grinders and rotary tool chucks. Solid carbide construction gives the bur durability and resistance to heat buildup during extended use.

This abrasive bur is used in fabrication shops, maintenance facilities, and production environments where die grinders or pneumatic rotary tools are employed. Typical applications include deburring weld seams, porting and shaping metal components, and removing casting flash. The cylinder with flat end geometry makes it particularly effective on flat surfaces, inside corners, and straight-sided slots. Machinists, tool-and-die workers, and maintenance technicians are the primary installers and users of this tool type.

Key Features

• Industry specification SA-6 cylinder with flat end head shape
• 5/8-inch cutting diameter for substantial material engagement
• 1-inch length of cut for full-depth passes on flat and slotted surfaces
• Single-cut tooth style for smooth finish on ferrous metals
• Solid carbide construction for heat resistance and extended tool life
• 1/4-inch shank diameter compatible with standard die grinder chucks

Compatibility

Designed as an SA-6 industry-standard replacement bur compatible with 1/4-inch collet die grinders and rotary tools used in metalworking and fabrication applications.

Installation Notes

Installation is performed by machinists or maintenance technicians using a standard die grinder with a 1/4-inch collet. Ensure the tool is fully de-energized and the collet is tightened securely before operation. Always wear appropriate eye protection and follow ANSI safety guidelines for rotary cutting tools. Do not exceed the maximum RPM rating of the host tool for the bur diameter in use.
