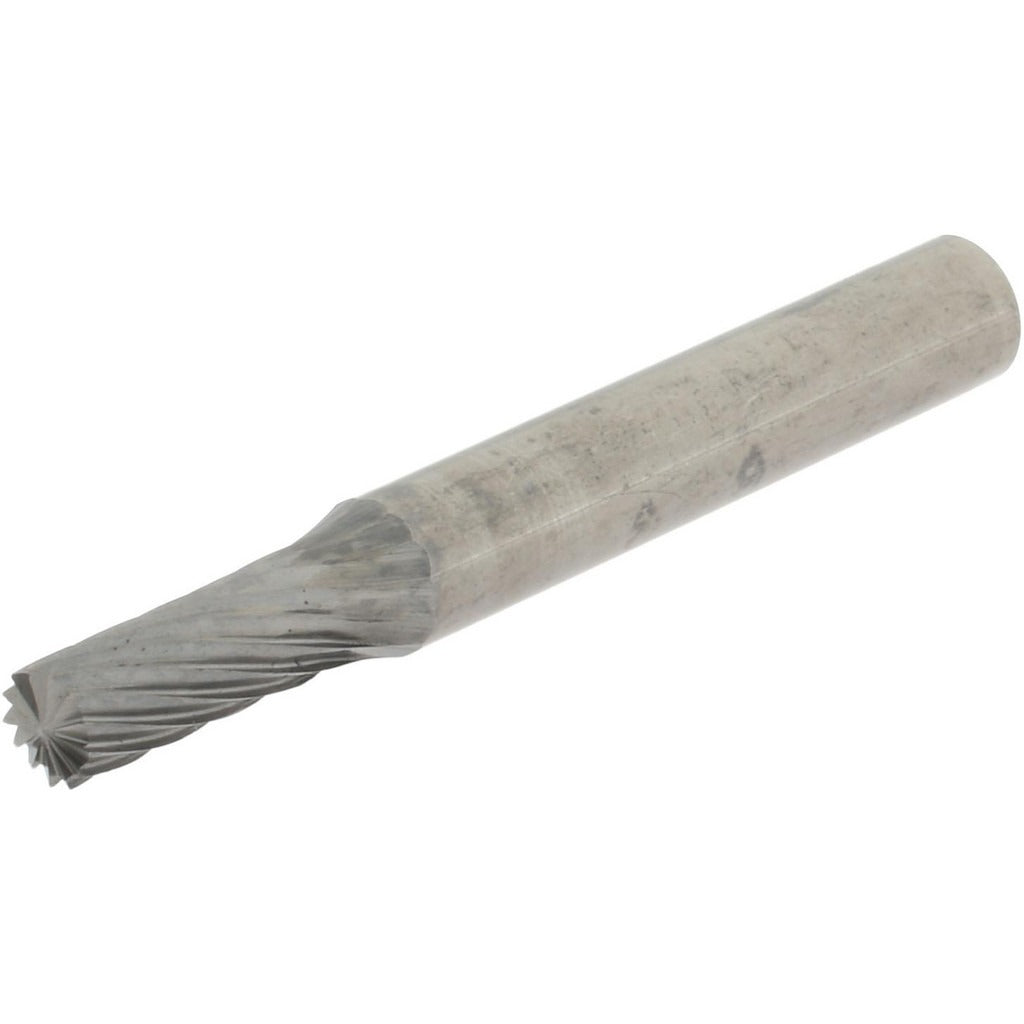

Hertel SZ0015CE Abrasive Bur Cylinder End Cut Solid Carbide

Product Description

The HERTEL SZ0015CE is a solid carbide abrasive bur with a cylinder-with-end-cut head geometry, conforming to industry specification SB-14. It features a single-cut tooth style suited for controlled material removal on metals, plastics, and composite materials. The cutting head measures 3/16 inch in diameter with a 5/8 inch length of cut. The 1/4 inch shank fits standard die grinders and rotary tools commonly used in metalworking, tool and die, and maintenance machining applications. The uncoated solid carbide construction delivers consistent cutting performance and resistance to wear during precision deburring, shaping, and surface blending operations.

This bur is intended for use in die grinder, rotary tool, and flex-shaft applications where a cylinder profile with end-cut capability is required. The end-cut geometry allows the tool to plunge into blind cavities and work flat-bottomed recesses, making it suitable for mold work, weld blending, port work, and general metalworking in both shop and field environments. It is installed and operated by machinists, tool and die makers, maintenance technicians, and fabricators working with ferrous and non-ferrous metals.

Key Features

• Cylinder with end-cut head shape allows flat-bottom cavity work and plunge cutting
• Single-cut tooth style provides smooth material removal with good chip clearance
• Solid carbide head construction for durability and wear resistance
• Uncoated finish suitable for general-purpose deburring and shaping
• 1/4 inch shank diameter fits standard die grinders and rotary tool collets
• Conforms to SB-14 industry specification for consistent sizing and geometry

Compatibility

Designed as an SB-14 specification cylinder-with-end-cut carbide bur for use in 1/4 inch collet die grinders and rotary tools standard to metalworking and fabrication trades.

Installation Notes

Install the shank fully into the collet of the die grinder or rotary tool and tighten securely before operation. Confirm the tool is powered off and depressurized before changing burs. Always wear appropriate eye protection and follow the tool manufacturer's maximum RPM rating for the bur size. Do not exceed the rated speed of the die grinder or apply side-loading force beyond the tool's design limits.
