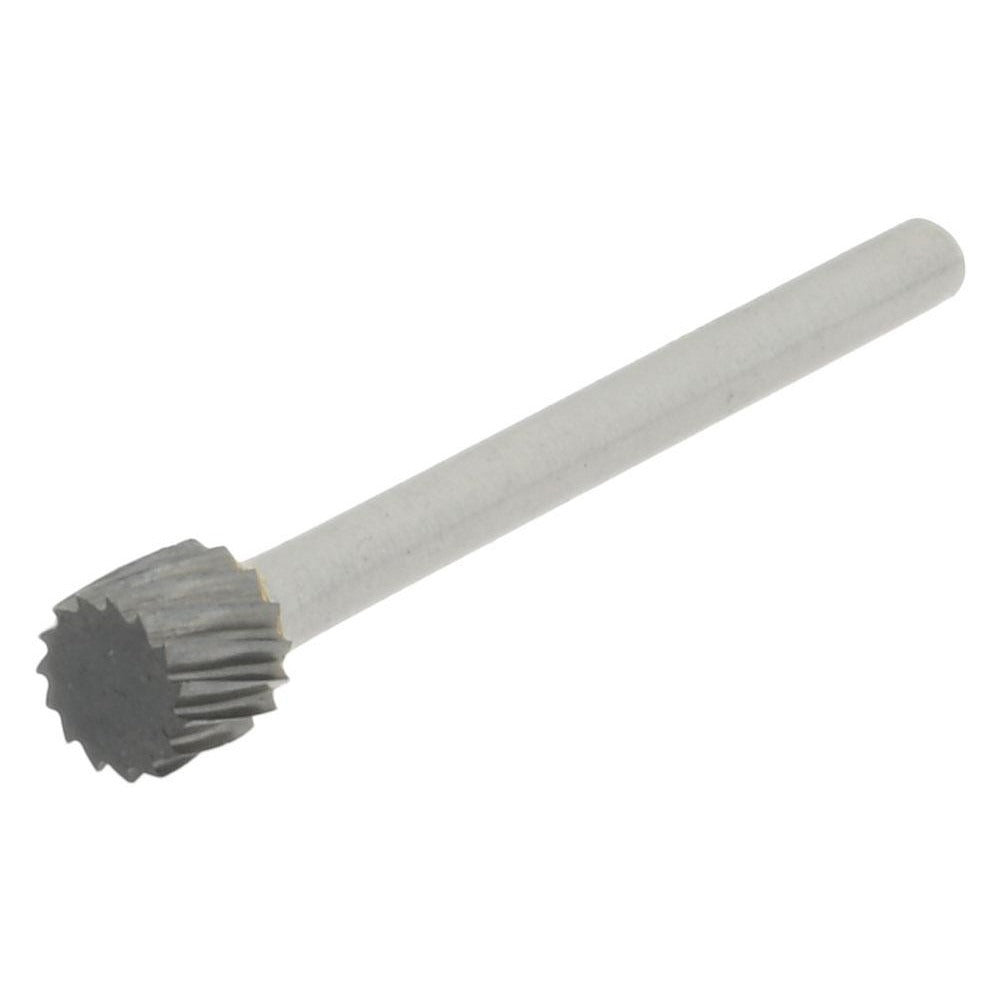

Hertel SZ0011C Abrasive Bur Cylinder Solid Carbide

Product Description

The HERTEL SZ0011C is a solid carbide abrasive bur with a cylinder and flat end head shape, designed for precision material removal in metalworking, deburring, and surface finishing applications. The bur meets SA-50 industry specifications and features a single cut tooth style, producing a smooth finish with efficient chip clearance. The cutting diameter measures 1/4 inch, the length of cut is 1/8 inch, and the shank diameter is 1/8 inch, making it compatible with standard die grinders and rotary tools. Machinists, tool and die makers, and fabricators rely on this type of bur for controlled stock removal on ferrous and non-ferrous materials.

This bur is suited for use in job shops, maintenance and repair operations, and production environments where precise deburring, chamfering, or contouring is required. The cylinder with flat end geometry allows the operator to work on flat surfaces, bottom-finish cavities, and right-angle edges. The solid carbide construction provides durability and maintains cutting geometry longer than high-speed steel alternatives, particularly on hardened materials and cast iron. It is sold individually and fits standard 1/8 inch collet tooling.

Key Features

• Solid carbide head construction for extended tool life on hard and abrasive materials
• Cylinder with flat end geometry for flat surface finishing and right-angle edge work
• Single cut tooth style for smooth finish and efficient chip removal
• 1/4 inch cutting diameter with 1/8 inch length of cut for controlled material removal
• 1/8 inch shank diameter fits standard die grinder and rotary tool collets
• Uncoated head for direct carbide performance without coating-related build-up concerns

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/8 inch collet or chuck, conforming to SA-50 industry specification for abrasive burs.

Installation Notes

Installation is performed by machinists or maintenance technicians using a die grinder or rotary tool with a compatible 1/8 inch collet. Ensure the tool is fully powered down and disconnected from the power source before inserting or removing the bur. Tighten the collet securely according to the tool manufacturer's guidelines to prevent slippage during operation. Always wear appropriate eye protection and follow shop safety protocols when operating rotary cutting tools.
