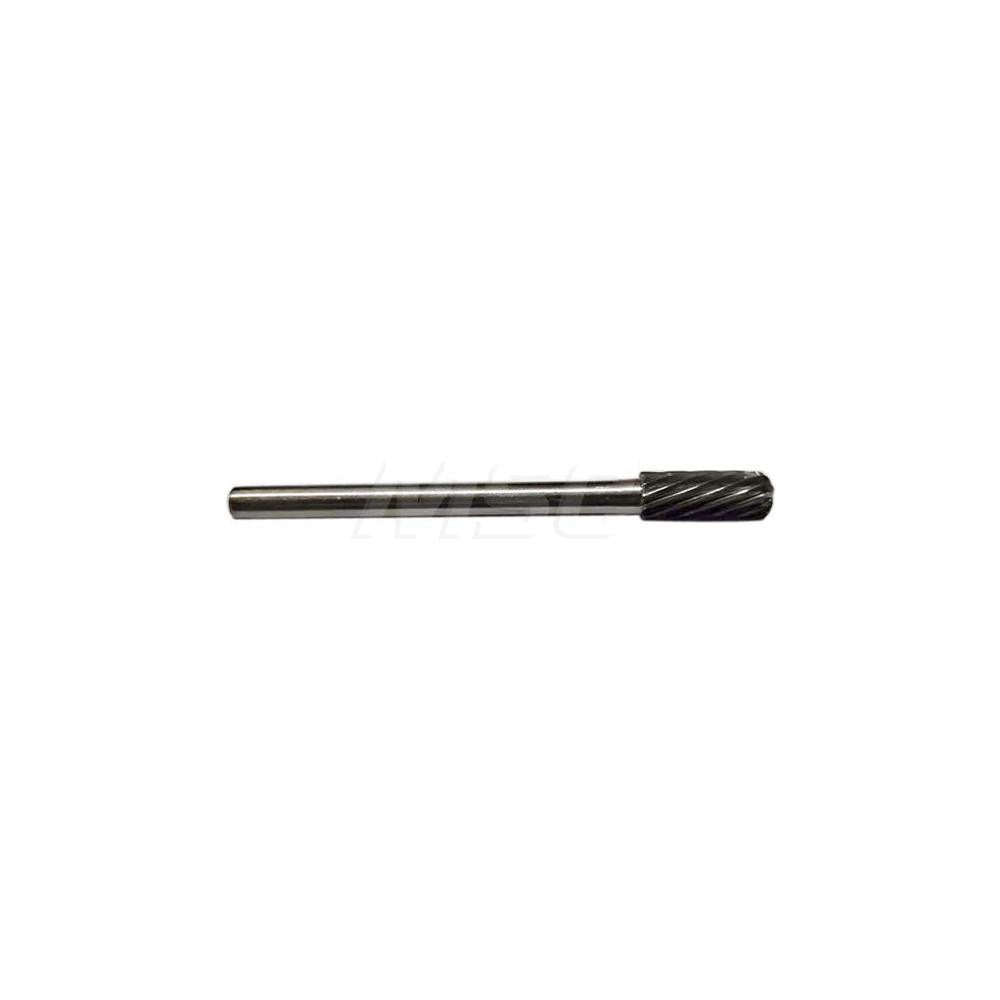

Hertel SZ0010CW Abrasive Bur Cylinder Radius End SC-51

Product Description

The HERTEL SZ0010CW is a solid carbide abrasive bur with a cylinder and radius end head geometry, conforming to industry specification SC-51. It features a single-cut tooth style, a cutting diameter of 0.25 inches, and a length of cut of 0.5 inches. The 0.125-inch shank diameter is a standard fit for die grinders and rotary tool handpieces commonly used in metalworking, deburring, and surface finishing applications. The uncoated solid carbide head provides hardness and wear resistance suitable for working on ferrous and non-ferrous metals, plastics, and composite materials. Licensed machinists, tool and die makers, and maintenance technicians are the primary installers and users of this tool.

The SZ0010CW is suited for precision deburring, port work, gasket surface preparation, and material removal in confined areas where a cylindrical profile with a radius end is required. The radius end geometry allows it to blend into curved or contoured surfaces without leaving sharp transitions. This bur is appropriate for use in both production and maintenance environments where controlled material removal is needed on small-to-medium workpieces. It is compatible with standard 0.125-inch collet die grinders and rotary tools.

Key Features

• SC-51 industry specification cylinder with radius end head shape
• Solid carbide head construction for durability and cutting performance
• Single-cut tooth style for smooth material removal with reduced chatter
• 0.25-inch cutting diameter with 0.5-inch length of cut
• 0.125-inch shank diameter fits standard die grinder collets
• Uncoated head — no coating to chip or delaminate under load

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.125-inch shank collet. Conforms to SC-51 industry specification for cylinder with radius end carbide burs.

Installation Notes

This bur is installed by machinists and maintenance technicians using standard die grinders or rotary handpieces. Ensure the collet is properly tightened and the tool is fully powered down before changing burs. Always operate within the maximum RPM rating of the host tool and wear appropriate eye and hand protection per applicable shop safety standards.
