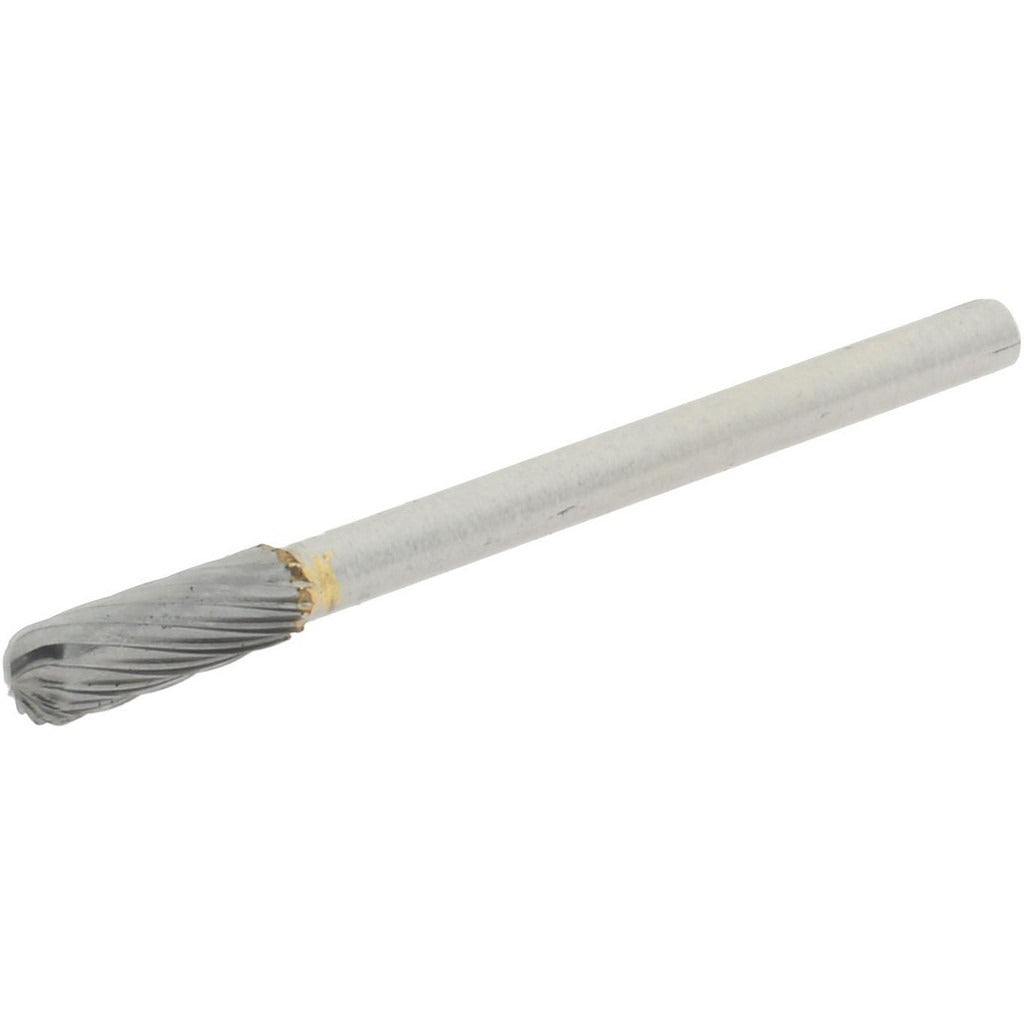

Hertel SZ0008CW Abrasive Bur Cylinder Radius Solid Carbide

Product Description

The HERTEL SZ0008CW is a solid carbide abrasive bur designed for material removal, deburring, and surface finishing in metal fabrication and machining applications. Configured to the SC-52 industry specification with a cylinder-with-radius-end head shape, this bur features a single cut tooth style that produces a smooth surface finish with controlled chip flow. The cutting diameter measures 5/32 inches with a 1/2-inch length of cut, and the 1/8-inch shank fits standard die grinders, rotary tools, and pneumatic handpieces. The uncoated solid carbide head delivers consistent hardness across a wide range of workpiece materials. Machinists, tool-and-die makers, and fabricators use this bur for precise contouring and finishing work.

This bur is suited for use on ferrous and non-ferrous metals, hardened steels, cast iron, and similar materials where controlled stock removal is required. Its cylinder-with-radius-end geometry allows access to internal profiles, fillets, and blended contours that straight-end tools cannot reach efficiently. The compact 1/8-inch shank makes it compatible with the wide range of high-speed handpieces and collet chucks commonly found in job shop and production environments. It is sold individually and ships as a single unit.

Key Features

• SC-52 industry specification for consistent sizing and interchangeability
• Cylinder with radius end geometry for contouring, blending, and fillet work
• Single cut tooth style for smoother finishes and reduced chatter
• Solid carbide head construction for hardness and wear resistance
• Uncoated head — no coating delamination risk on abrasive workpiece materials
• 1/8-inch shank fits standard die grinders and rotary tool collets

Compatibility

Designed as a standard SC-52 specification abrasive bur compatible with die grinders, rotary tools, and pneumatic handpieces accepting a 1/8-inch shank collet.

Installation Notes

Installation is performed by machinists, fabricators, or tool-and-die technicians using a die grinder or rotary handpiece equipped with the appropriate 1/8-inch collet. Ensure the tool is fully powered down and the collet is securely tightened before operation. Do not exceed the maximum RPM rating of the handpiece or the bur. Wear appropriate eye protection and follow shop safety procedures when operating rotary carbide tooling.
