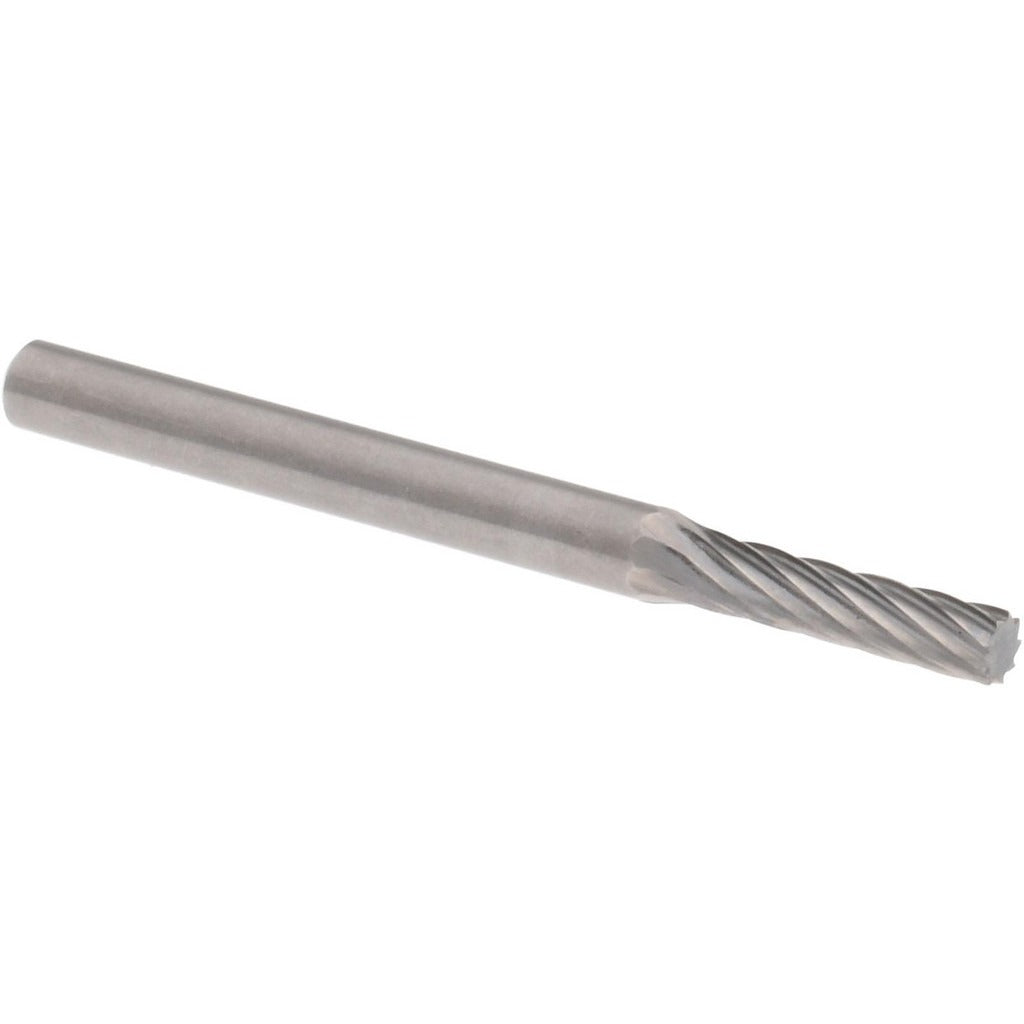

Hertel SZ0008C Abrasive Bur Cylinder 3/32 Inch Solid Carbide

Product Description

The HERTEL SZ0008C is a solid carbide abrasive bur with a cylinder and flat-end head profile, designed for material removal, deburring, and surface finishing in metalworking and fabrication applications. The bur meets the SA-42 industry specification and features a single-cut tooth style, which produces a smoother finish with lower cutting resistance compared to double-cut configurations. The cutting head measures 3/32 inch in diameter with a 7/16-inch length of cut, mounted on a standard 1/8-inch shank. Solid carbide construction provides hardness and heat resistance suited to repeated use on ferrous and non-ferrous metals, hard plastics, and composite materials. Installation requires a compatible die grinder or rotary tool with a 1/8-inch collet.

This bur is appropriate for use in metal fabrication shops, tool and die operations, maintenance and repair environments, and precision finishing tasks where controlled stock removal is needed. The cylinder with flat-end geometry allows side cutting along a workpiece profile as well as flat-bottom work in slots or recesses. Machinists, tool makers, and maintenance technicians are the primary users. The SA-42 specification ensures dimensional conformance to recognized industry standards for rotary bur geometry.

Key Features

• Cylinder with flat-end head shape for side cutting and flat-bottom finishing
• Single-cut tooth style for smoother surface finish and reduced clogging
• Solid carbide head material for extended tool life on hard materials
• Uncoated head for consistent cutting performance without coating delamination concerns
• 1/8-inch shank diameter compatible with standard die grinder collets
• Meets SA-42 industry specification for rotary bur geometry

Compatibility

Designed as an OEM-specification replacement or standard-stock abrasive bur for die grinders and rotary tools accepting a 1/8-inch collet, conforming to the SA-42 industry specification for cylinder-profile carbide burs.

Installation Notes

Installation and use of rotary carbide burs should be performed by machinists or trained trade professionals familiar with rotary cutting tools. Ensure the die grinder or rotary tool is fully powered down and disconnected from its power source before inserting or removing the bur from the collet. Do not exceed the maximum RPM rating of the host tool, and always wear appropriate eye and face protection when operating rotary burs. Inspect the bur shank and cutting head for cracks or chips before each use and remove from service if damage is found.
