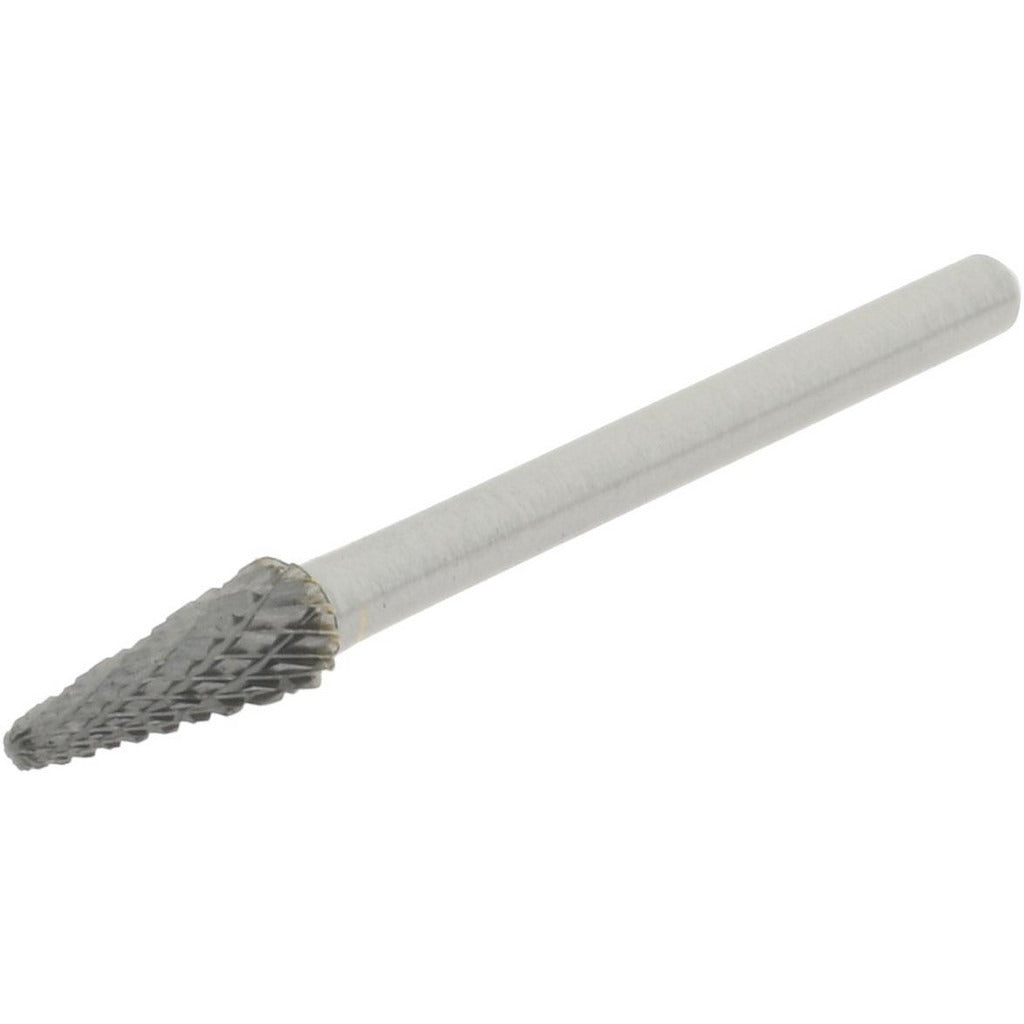

Hertel SZ0007T Abrasive Bur Taper Double Cut Solid Carbide

Product Description

The HERTEL SZ0007T is a solid carbide abrasive bur with a taper and radius end head shape, designed for precision material removal in metalworking, die grinding, and deburring applications. Conforming to industry specification SL-53, this bur features a double cut tooth style that produces a faster cut rate with a smoother finish compared to single cut configurations. The head measures 3/16 inch in cutting diameter with a 1/2 inch length of cut, mounted on a 1/8 inch diameter shank. The uncoated solid carbide construction delivers durability and heat resistance across ferrous and non-ferrous materials.

This bur is suited for use in die grinding operations, mold and die finishing, weld blending, and port matching work. The 1/8 inch shank fits standard die grinders and rotary tools commonly used by machinists, tool and die makers, and maintenance technicians. The taper with radius end geometry allows work in contoured recesses and angled surfaces where flat-ended tooling cannot reach effectively. It is packaged as a single unit and is appropriate for both production and repair environments.

Key Features

• Solid carbide head construction for extended tool life and heat resistance
• Double cut tooth style for fast material removal with a refined surface finish
• Taper with radius end geometry for access to angled and contoured surfaces
• Conforms to industry specification SL-53
• 3/16 inch cutting diameter with 1/2 inch length of cut
• 1/8 inch shank diameter compatible with standard die grinders and rotary tools

Compatibility

Designed as an OEM-style replacement and standard-fit abrasive bur for die grinders and rotary tools accepting a 1/8 inch shank, conforming to SL-53 industry specifications.

Installation Notes

Installation is performed by machinists or maintenance technicians using a compatible die grinder or rotary tool with a 1/8 inch collet. Ensure the tool is fully powered off and disconnected from the power source before changing burs. Inspect the collet and shank for wear or damage before seating the bur, and confirm the bur is secured to the manufacturer's recommended tightening procedure before operation. Always use appropriate eye protection and follow applicable shop safety standards when operating rotary cutting tools.
