Hertel SZ0003T Abrasive Bur Taper Solid Carbide 1/8 in

Product Description

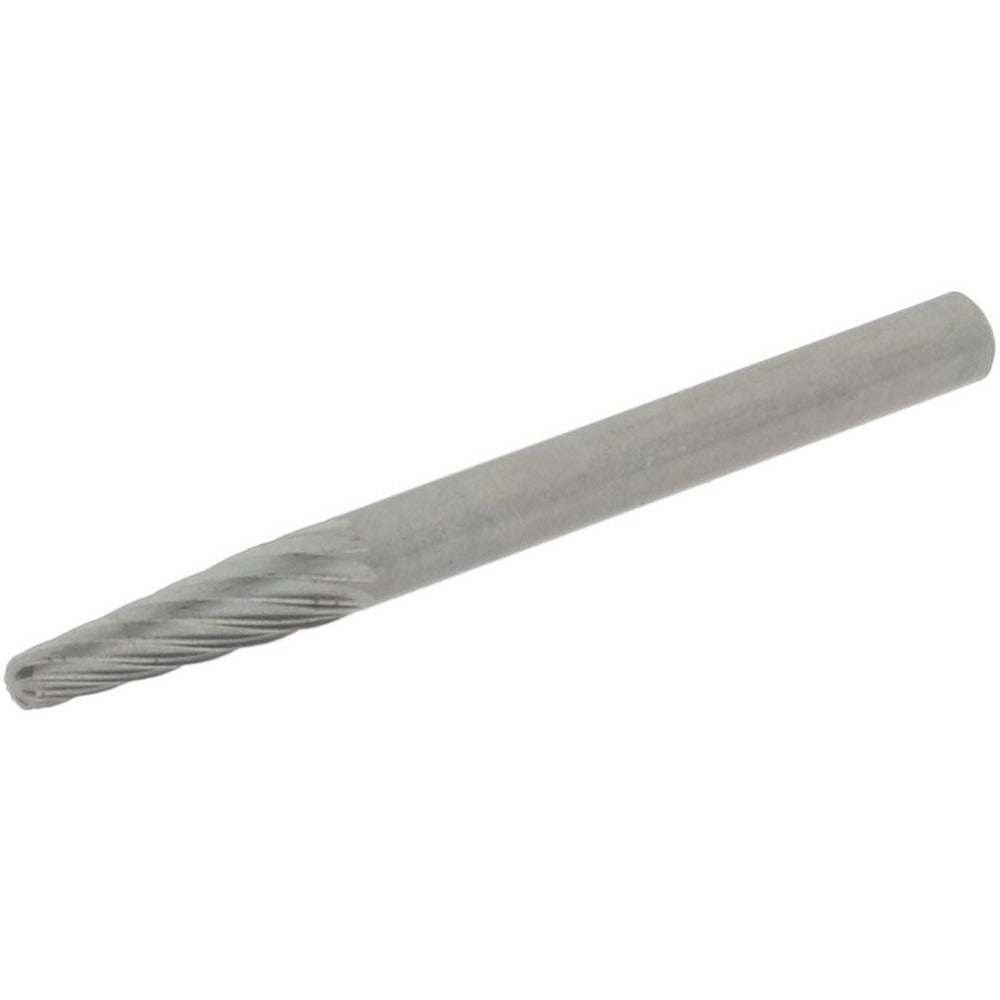

The HERTEL SZ0003T is a solid carbide abrasive bur in a taper with radius end head shape, designed for precise material removal in metalworking, deburring, and finishing operations. Conforming to industry specification SL-42, this bur features a 1/8 inch cutting diameter and a 1/2 inch length of cut, making it well suited for accessing tight contours and profiling curved surfaces. The uncoated solid carbide head delivers the hardness and edge retention required for extended use on ferrous and non-ferrous materials. A 1/8 inch shank fits standard die grinders and rotary tools commonly used in fabrication and maintenance shops.

This bur is used in applications requiring controlled stock removal on metal, composites, and hard plastics. The taper with radius end geometry is particularly useful for blending fillets, enlarging angled holes, and finishing concave contours. Single cut tooth style produces a smoother finish and generates longer, manageable chips compared to double cut patterns, making it a practical choice for finishing passes and port work. Typical users include machinists, tool and die makers, welders performing cleanup, and maintenance technicians working in industrial settings.

Key Features

• Taper with radius end head shape for contouring and fillet blending
• Single cut tooth style for smoother finishes and reduced chatter
• Solid carbide construction for high hardness and edge retention
• 1/8 inch shank compatible with standard die grinders and rotary tools
• Uncoated head for direct carbide-to-workpiece contact
• Meets industry specification SL-42

Compatibility

Designed as a standard SL-42 specification abrasive bur fitting any die grinder or rotary tool with a 1/8 inch collet or chuck.

Installation Notes

Installation is performed by machinists or maintenance technicians using a die grinder or rotary tool with a properly sized collet. Ensure the tool is powered off and the collet is fully tightened before operation. Always wear appropriate eye protection and secure the workpiece before grinding. Do not exceed the recommended RPM rating of the host tool.
