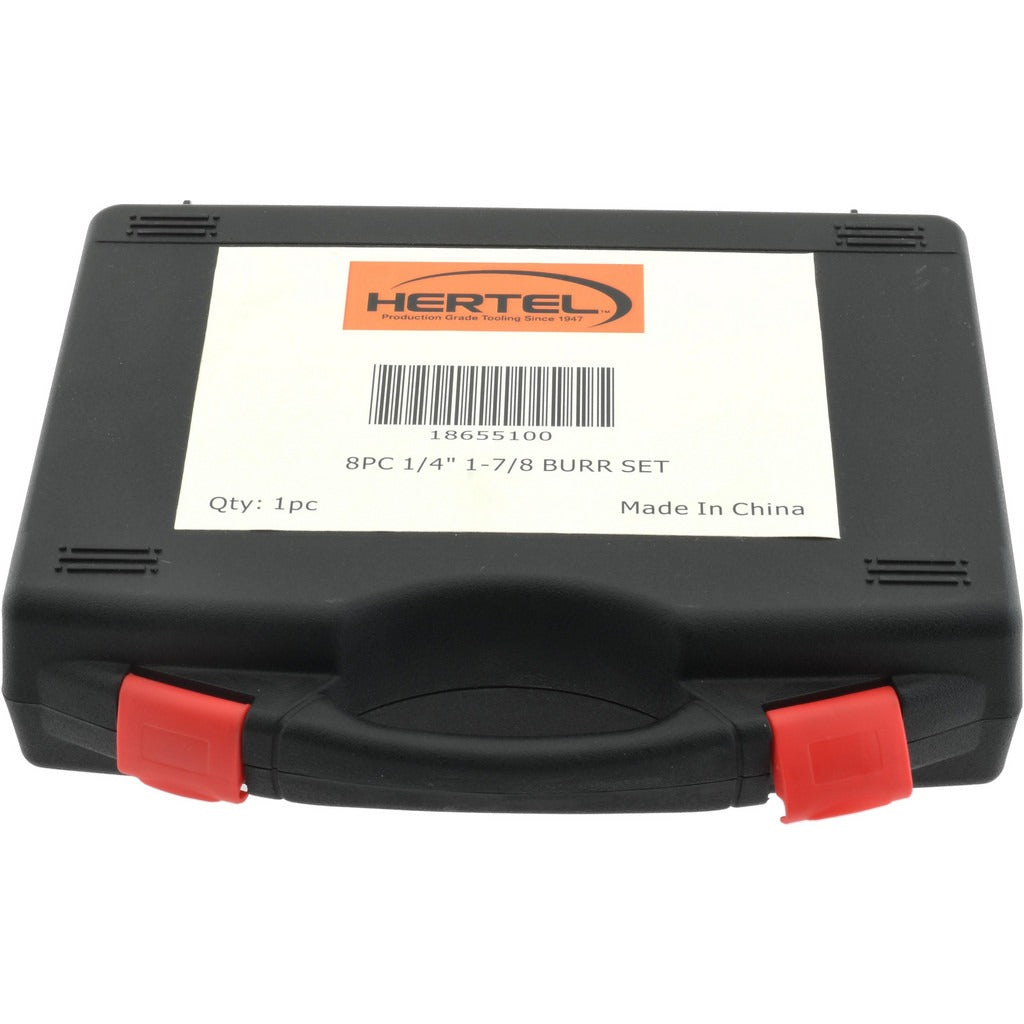

Hertel SZ00005 Double Cut Carbide Burr Set 8 Pc

Product Description

The HERTEL SZ00005 is an 8-piece double cut carbide rotary burr set built around the cylinder head profile. Each burr features a solid carbide head with a double cut tooth style that removes material quickly and leaves a smoother finish than single cut geometry. The 1/4 inch shank diameter fits standard die grinders and rotary tools used in metalworking, fabrication, and maintenance shops. This set covers the cylinder shape across eight industry-standard configurations, giving technicians and machinists a ready selection for porting, deburring, shaping, and surface finishing work in one package.

This set is suited for metal removal tasks on ferrous and non-ferrous stock in industrial, maintenance, and fabrication environments. The cylinder profile is particularly useful for straight-wall slot work, flat-bottom cavity finishing, and edge cleanup on castings or weldments. The double cut geometry performs well on steel, cast iron, and aluminum. Each burr meets industry specifications SA-5, SC-5, SD-5, SE-5, SF-5, SG-5, SL-4, and SM-5, making this set a direct fit for shops that source to those standards.

Key Features

• Solid carbide heads provide durability and resistance to heat buildup during extended cutting passes
• Double cut tooth style delivers faster material removal with reduced chatter compared to single cut
• Cylinder head shape suits flat-bottom and straight-wall applications including slots and cavities
• 1/4 inch shank fits most standard die grinders and flex-shaft rotary tools
• 1/2 inch cutting diameter across all eight pieces for consistent stock removal
• Meets industry specifications SA-5, SC-5, SD-5, SE-5, SF-5, SG-5, SL-4, and SM-5

Compatibility

Compatible with die grinders and rotary tools accepting a 1/4 inch collet. Meets industry specifications SA-5, SC-5, SD-5, SE-5, SF-5, SG-5, SL-4, and SM-5 as supplied by the manufacturer.

Installation Notes

Burr installation and removal should be performed with the grinder fully powered off and disconnected from its power source. Secure the shank fully into the collet and tighten to the tool manufacturer's specified collet torque before operation. Eye protection and appropriate gloves are required when operating rotary burrs. Inspect each burr for chips or cracks before use and remove any damaged piece from service immediately.
