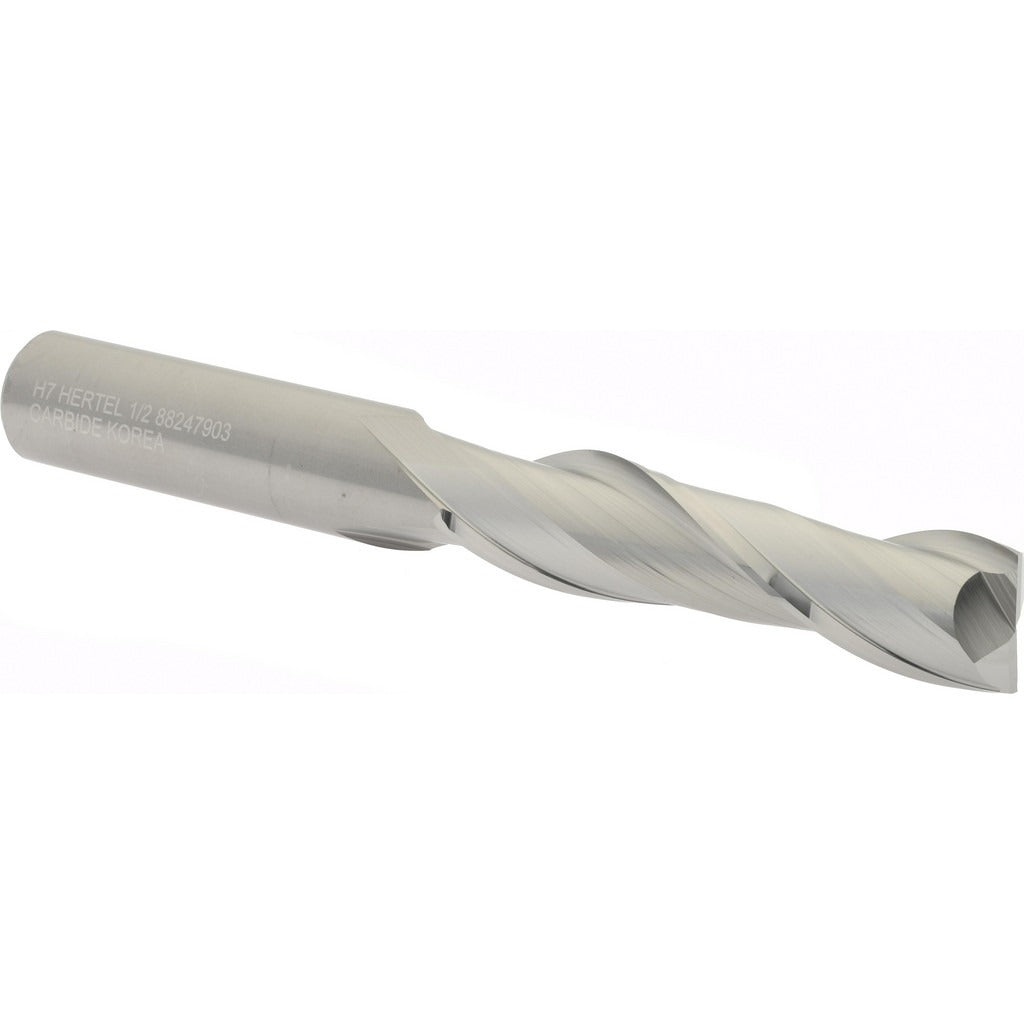

Hertel 750119 Square End Mill 0.5 in 2 Flute Solid Carbide

Product Description

The HERTEL 750119 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. With a 0.5-inch cutting diameter and a 2-inch length of cut, it delivers consistent material removal across a range of workpiece materials. The 2-flute geometry and 30-degree helix angle promote efficient chip evacuation, making this tool well-suited for slotting, profiling, and peripheral milling. The uncoated solid carbide construction provides rigidity and edge retention in applications where coating is not required or preferred. This end mill is installed and operated by machinists and CNC machine operators.

This end mill is intended for use in vertical machining centers, CNC mills, and manual knee mills where a 0.5-inch shank is compatible with the spindle toolholder. The 4-inch overall length and 0.5-inch shank diameter allow secure clamping in standard collets and end mill holders. The centercutting design enables plunge cutting as well as conventional side milling, expanding its versatility across common shop operations. It is appropriate for job shops, tool rooms, and production environments handling ferrous and non-ferrous materials.

Key Features

• Solid carbide construction for rigidity and wear resistance
• 2-flute spiral design supports chip clearance in slotting and plunge cuts
• 30-degree helix angle balances cutting force and surface finish
• Centercutting capability allows direct plunge entry into workpiece
• Right-hand cut with standard spiral flute geometry
• Uncoated finish suitable for applications where substrate performance is preferred over coated tooling

Compatibility

Designed for use in CNC machining centers and manual mills accepting a 0.5-inch shank diameter via standard collet or end mill holder tooling systems.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholder torque and runout procedures for the specific spindle and collet system in use. Ensure the machine spindle is fully stopped and the control is in an appropriate safe state before changing tooling. Verify shank engagement depth meets the toolholder manufacturer minimum grip length specification. Inspect the cutting edges for chips or damage before use.
