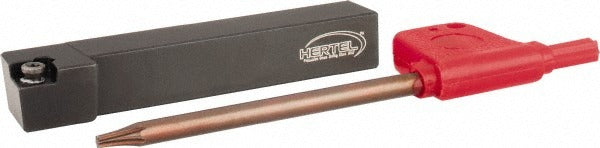

Hertel 1002926 Rh Sclp Indexable Turning Toolholder

Product Description

The HERTEL 1002926 is a right-hand SCLP-style indexable turning toolholder designed for precision external turning operations on CNC lathes and manual turning centers. Built on a screw-type insert clamping series, it accepts CP..21.51 inserts and features a positive rake geometry that reduces cutting forces and improves chip control on a range of workpiece materials. The shank measures 0.375 inches wide by 0.375 inches tall, with an overall length of 2.5 inches, making it suited for compact turret positions and tight tool post applications. Licensed machinists and CNC operators are the primary installers of this toolholder.

This toolholder is intended for use in light to medium-duty external turning applications where a positive rake insert geometry is specified. The compact 0.375-inch square shank fits standard boring bar and turning tool holders common in small CNC lathes and manual turning centers. It is a single-use configuration tool, not a multi-use style, so it is dedicated to the turning application for which it was selected. Applications include facing, straight turning, and shoulder work where CP..21.51 grade inserts are the specified cutting geometry.

Key Features

• Right-hand cut orientation for standard external turning setups
• SCLP toolholder style with screw-type insert clamping for secure insert retention
• Positive rake geometry reduces cutting forces and improves chip evacuation
• Accepts CP..21.51 indexable inserts
• Compact 0.375-inch square shank fits tight turret and tool post positions
• 2.5-inch overall length supports close-clearance machining setups

Compatibility

Designed for use with CP..21.51 series indexable inserts. Fits tool posts and turret stations sized for a 0.375-inch square shank. Verify turret pocket dimensions and insert seat geometry against your machine specifications before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before seating or removing the toolholder from the turret. Use the appropriate torque wrench and insert clamp screw driver to secure the CP..21.51 insert per the insert manufacturer's clamping specifications. Confirm shank seating depth and tool height alignment before resuming cuts.
