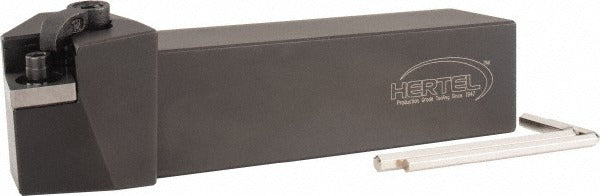

Hertel 1002853 Msrn Indexable Turning Toolholder Rh

Product Description

The HERTEL 1002853 is a right-hand MSRN-style negative rake indexable turning toolholder designed for precision metal-cutting operations on CNC and manual lathes. Built around a 1-1/4 inch by 1-1/4 inch square shank and measuring 6 inches in overall length, this toolholder accepts SN..543 series inserts and delivers the rigid setup geometry required for reliable external turning. Negative rake geometry suits harder workpiece materials and interrupted cuts where edge strength is a priority. Licensed machinists and CNC operators install this holder as part of a modular tooling system.

This toolholder is suited for external turning applications on production and job-shop lathes where MSRN-style insert seating is specified. The right-hand configuration positions the cutting edge for standard left-to-right feed direction. It fits into toolpost or turret setups that accommodate a 1-1/4 inch square shank. The Series Multi-Option designation indicates compatibility within a broader family of interchangeable tooling components, making it a practical choice for shops standardizing on a single insert platform.

Key Features

• MSRN toolholder style with negative rake geometry for increased edge strength on demanding cuts
• Right-hand orientation for standard left-to-right feed direction
• 1-1/4 inch by 1-1/4 inch square shank for secure toolpost or turret mounting
• 6-inch overall length provides clearance and reach for typical external turning setups
• Accepts SN..543 series inserts for quick, repeatable indexing without regrinding
• Part of the Multi-Option series for modular tooling flexibility

Compatibility

Designed to accept SN..543 series indexable inserts. Fits toolpost and turret systems that accommodate a 1-1/4 inch square shank. Specific machine compatibility depends on the toolpost or turret configuration of the lathe in use.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before mounting or indexing any toolholder. Seat the shank fully in the toolpost or turret pocket and tighten clamping hardware evenly to manufacturer torque specifications for the toolpost being used. Confirm insert seating and screw torque before resuming cutting operations.
