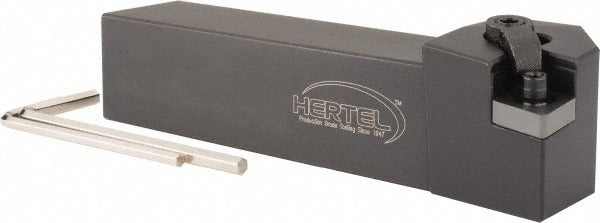

Hertel 1002829 Lh Mcln Indexable Turning Toolholder

Product Description

The HERTEL 1002829 is a left-hand MCLN-style indexable turning toolholder designed for negative-rake insert geometries. It accepts CN..543 series inserts and is built for use on manual and CNC turning lathes in production and job-shop environments. The shank measures 1-1/4 inches wide by 1-1/4 inches tall with an overall length of 6 inches, providing a rigid platform for interrupted and continuous turning operations. Machinists and tool crib personnel in metalworking facilities specify this holder for its compatibility with widely available CN..543 inserts and its left-hand orientation, which suits specific tooling setups and turret positions.

This toolholder fits standard turning center and engine lathe applications where a left-hand MCLN holder is required. It is suited to external turning operations on ferrous and non-ferrous materials when paired with the appropriate CN..543 insert grade. The Multi-Option series designation indicates compatibility across common turret and quick-change toolpost setups that accept a 1-1/4 inch square shank. It is not a multi-use tool and is intended as a dedicated turning application holder. Machine shops running production turning programs or maintenance facilities needing a reliable indexable holder will find this a direct-fit solution.

Key Features

• Left-hand (LH) MCLN toolholder style for specific turret and toolpost orientations
• Negative rake geometry for use with CN..543 series inserts
• 1-1/4 inch x 1-1/4 inch square shank for rigid clamping in standard tool blocks
• 6-inch overall length provides clearance and reach for common turning setups
• Part of the HERTEL Multi-Option series for broad turret compatibility

Compatibility

Designed to accept CN..543 series indexable inserts. Fits turning centers and engine lathes with toolposts or turrets that accommodate a 1-1/4 inch square shank. Left-hand orientation is required for proper installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling specialist. Power down and lock out the machine spindle before changing toolholders or inserts. Seat the shank fully in the tool block or turret pocket and torque the clamping screws per the machine tool manufacturer specifications. Inspect the insert seat and clamping screw for wear before mounting a new insert.
