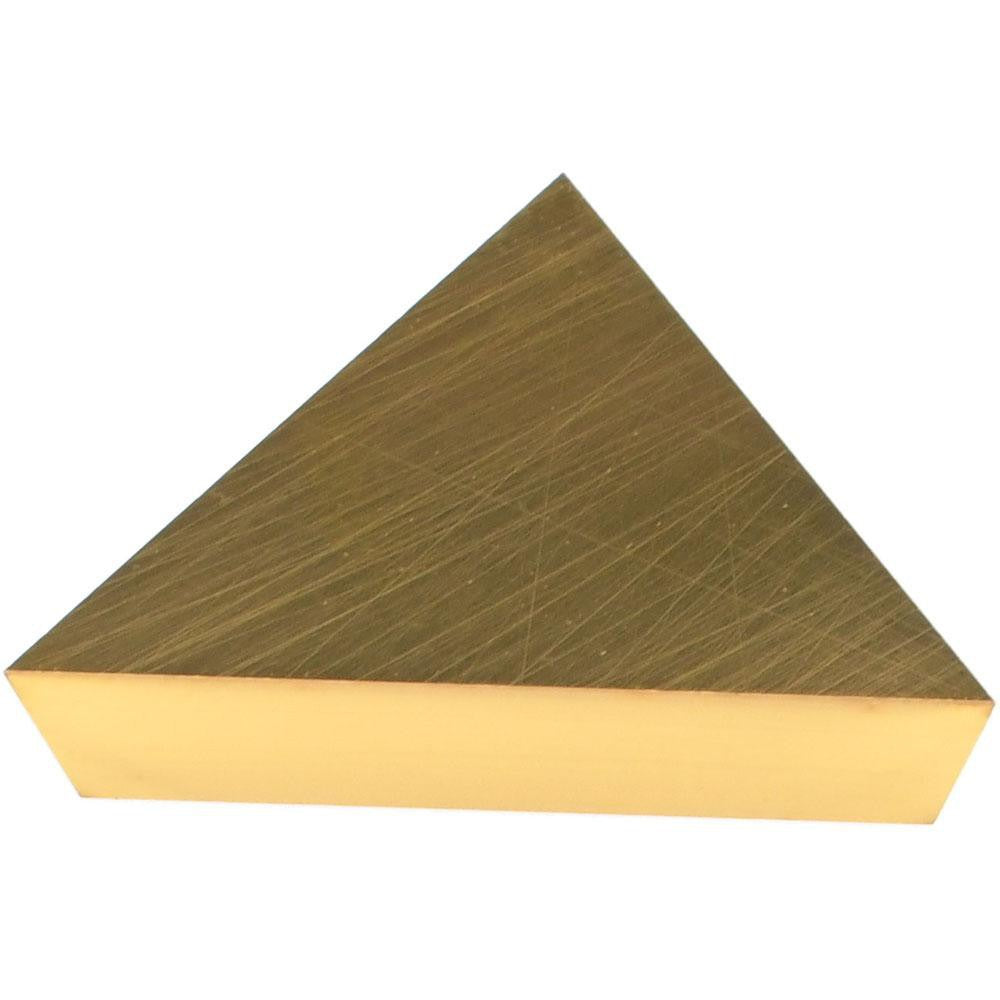

Hertel 1001223 TPG320 HC210 Carbide Turning Insert

Product Description

The HERTEL 1001223 is a solid carbide turning insert in the TPG320 style, designed for single-point turning operations on CNC and manual lathes. Coated with titanium nitride (TiN) via a PVD process, the HC210 grade insert offers wear resistance suited to finish and semi-finish turning. The triangular insert geometry features a 60-degree included angle, a 3/8-inch inscribed circle (0.375 inches), and a 0.004-inch corner radius. It is held in place with a clamp-style toolholder and is used by machinists and toolroom technicians across production and job-shop environments.

This insert is part of the HERTEL KENDEX series and carries a neutral hand designation, making it compatible with toolholders configured for either right- or left-hand operation without orientation preference. Primary workpiece materials include stainless steel (M), non-ferrous metals (N), and heat-resistant superalloys (S). Secondary workpiece material compatibility includes cast iron (K). The maximum depth of cut is 0.049 inches (1.25 mm), placing this insert in finish to light semi-finish turning applications. It is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with TiN PVD coating for extended tool life in finish turning
• TPG320 style with 60-degree triangular shape and 11-degree relief angle
• 0.004-inch corner radius suitable for fine surface finish requirements
• Neutral hand orientation for flexible toolholder compatibility
• Clamp-style holding method for secure seating under cutting loads
• HC210 grade rated for stainless, non-ferrous, superalloy, and cast iron workpieces

Compatibility

Designed for use in clamp-style TPG-style toolholders accepting a 3/8-inch inscribed circle triangular insert. Compatible with toolholders designated for TPG320 inserts. Verify toolholder seat and clamp geometry before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and de-energize the machine spindle before seating or removing inserts. Use the correct torque wrench and clamp hardware specified by the toolholder manufacturer when securing the insert. Handle carbide inserts with care to avoid chipping the cutting edge prior to use.
