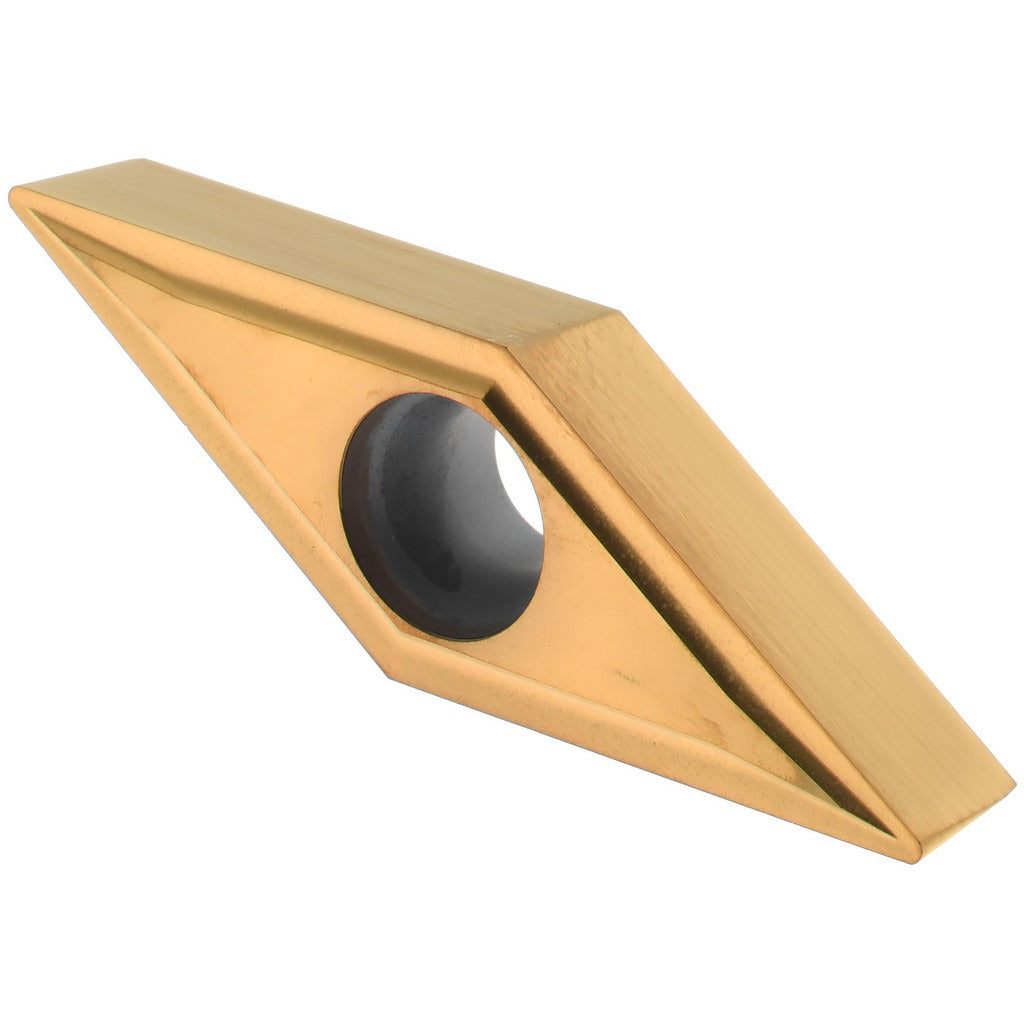

Hertel 1001129 Turning Insert VBMT331LF HC210 Carbide

Product Description

The HERTEL 1001129 is a VBMT331LF HC210 solid carbide turning insert designed for precision metal cutting on CNC and manual lathes. Coated with Titanium Nitride (TiN) via PVD process, this screw-on insert features a 35-degree diamond shape with a neutral hand orientation and a positive rake geometry. The inscribed circle measures 3/8 inches and the corner radius is 1/64 inches (0.0160 inches). Insert length is 16.61 mm (0.6539 inches) and insert thickness is 3/16 inches (0.1875 inches). The HC210 manufacturer grade delivers reliable wear resistance across a range of workpiece materials.

This insert is suited for turning operations on stainless steel, non-ferrous materials, and superalloys, consistent with primary workpiece material codes M, N, and S. Secondary workpiece compatibility includes cast iron (code K). It is commonly used in finish and semi-finish turning applications where consistent surface finish and dimensional accuracy are required. The screw-on holding method provides secure clamping and repeatable insert indexing on compatible toolholders. Maximum depth of cut is 1.25 mm (0.0492 inches).

Key Features

• Solid carbide substrate with PVD-applied Titanium Nitride (TiN) coating for extended tool life
• 35-degree diamond insert shape (V code) with positive rake and neutral hand for versatile turning setups
• Screw-on holding method for secure, repeatable indexing
• 1/64 inch corner radius suited for finish turning with controlled surface finish
• Compatible with primary workpiece materials M (stainless), N (non-ferrous), and S (superalloys)
• Chip breaker style T for effective chip control during cutting

Compatibility

Designed as an OEM-style screw-on turning insert compatible with VBMT-style toolholders accepting a 3/8 inch inscribed circle insert. Material grade equivalents C2 and C4 are noted. Verify toolholder seating and screw size before installation.

Installation Notes

Installation of turning inserts should be performed by a qualified machinist or tooling technician with the machine powered down and the spindle locked. Use the appropriate torx or hex key to seat the screw-on clamp to the toolholder manufacturer's specified procedure. Inspect the insert pocket for debris or wear before seating the insert, and never force an insert into a damaged pocket. Handle carbide inserts with care to avoid chipping the cutting edge prior to use.
