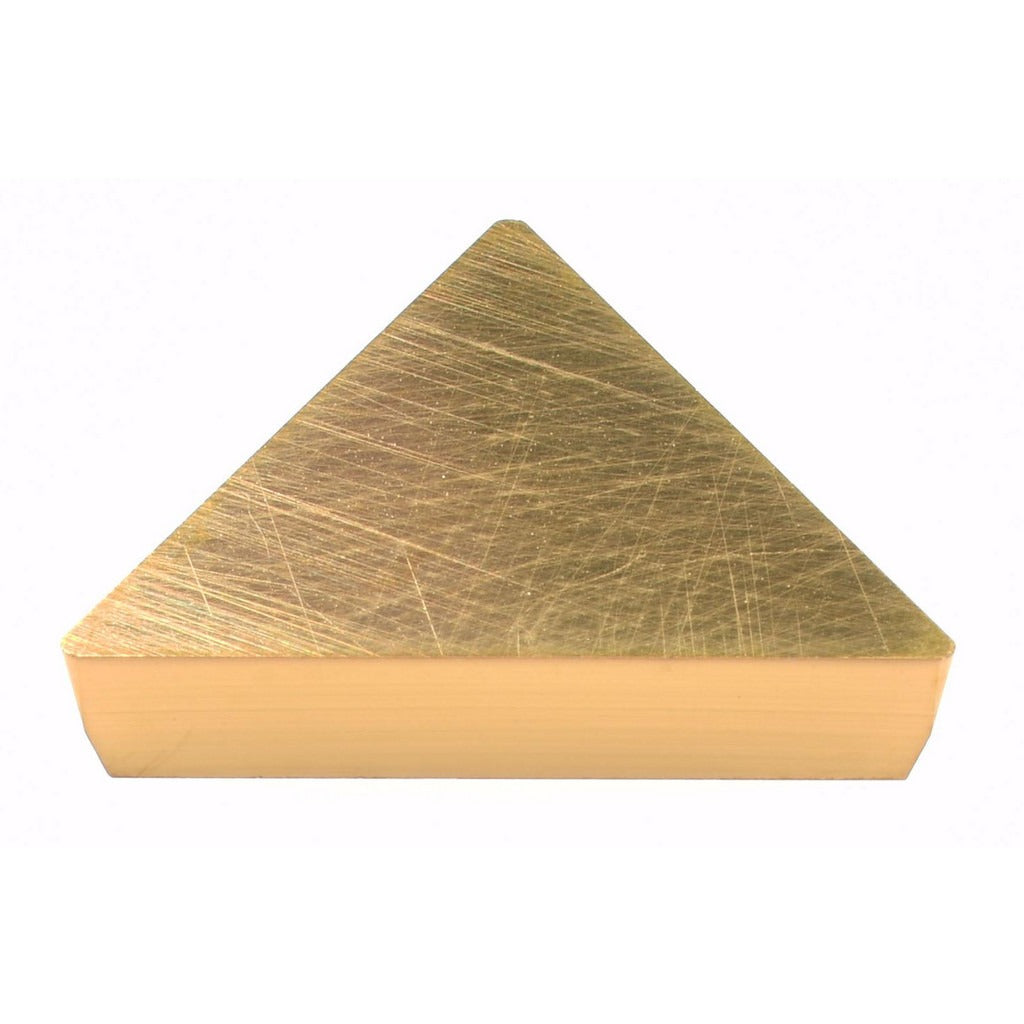

Hertel 1001125 TPG321 HC210 Carbide Turning Insert

Product Description

The HERTEL 1001125 is a solid carbide turning insert with a TPG321 style geometry designed for use in CNC and manual lathe turning operations. The insert features a Physical Vapor Deposition (PVD) TiN coating over the HC210 grade carbide substrate, providing wear resistance and thermal stability at the cutting edge. It carries a 60-degree triangular shape with a neutral hand orientation, a 3/8 inch inscribed circle, and a 1/64 inch corner radius. The insert measures 16.5 mm (0.6496 inches) in length and 1/8 inch in thickness. Licensed machinists and CNC operators working in production turning environments are the primary users of this insert.

This insert is suited for turning operations on stainless steel, non-ferrous metals, superalloys, and cast materials, corresponding to ISO workpiece material groups M, N, S, and K. It fits into standard TPG-style clamp-style toolholders with a clearance code of P and tolerance code of G. The KENDEX series designation identifies the toolholder system family for which this insert is engineered. Maximum depth of cut is 1.25 mm (0.0492 inches), making it appropriate for finishing and light semi-finishing passes.

Key Features

• Solid carbide substrate with HC210 grade for high hardness and thermal resistance
• PVD TiN coating extends edge life in multi-material turning applications
• 60-degree triangular geometry provides three usable cutting edges per insert
• 1/64 inch corner radius supports tight-tolerance finishing cuts
• Positive rake geometry reduces cutting forces on the workpiece
• Clamp-style holding method for secure, repeatable insert indexing

Compatibility

Designed for use with TPG-style clamp-type toolholders in the KENDEX series. Compatible with machining of ISO material groups M (stainless steel), N (non-ferrous), S (superalloys), and K (cast materials). Material grades C2 and C4 are applicable for this insert.

Installation Notes

Installation is performed by machining professionals using standard insert clamp toolholders. Power down and lock out the machine spindle before indexing or replacing inserts. Use proper insert seating and clamping torque per the toolholder manufacturer specifications to prevent insert movement during cutting. Handle carbide inserts with care to avoid chipping the cutting edges prior to use.
