Hertel 1000683 TPG222 HC210 Carbide Turning Insert

Product Description

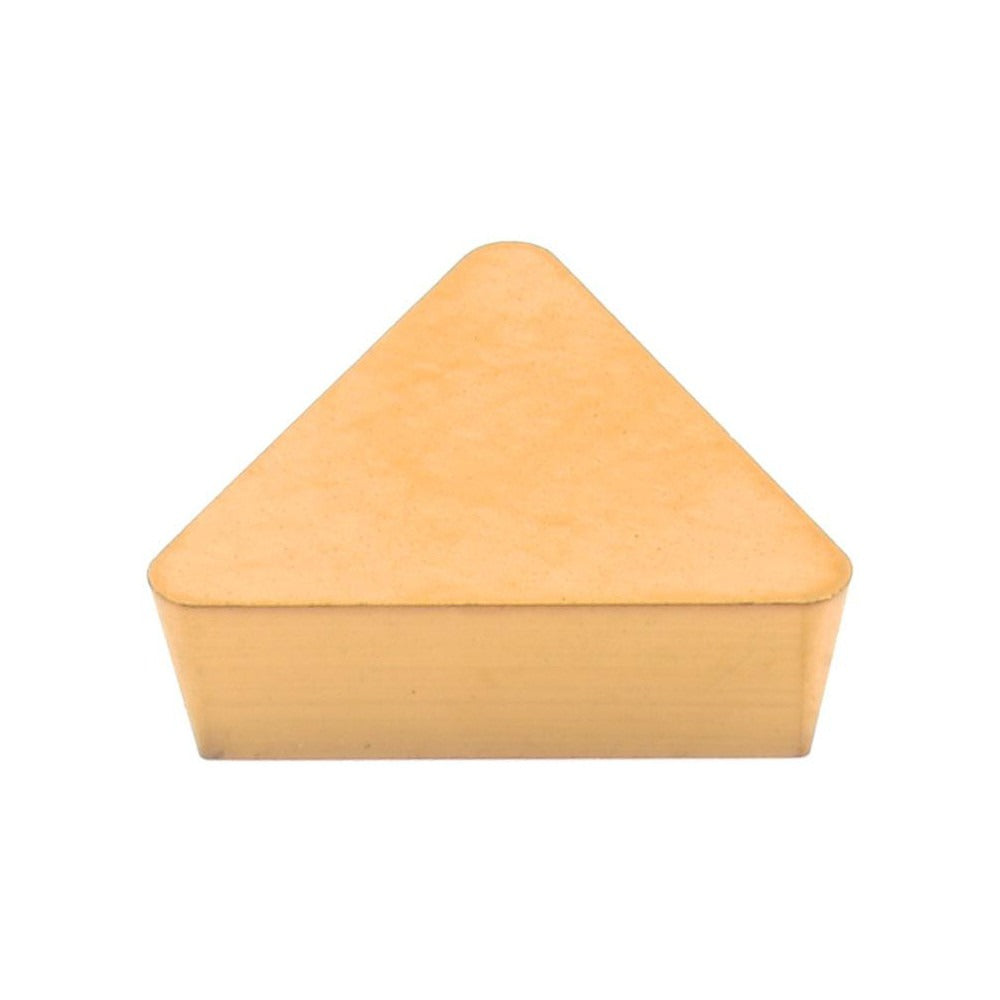

The HERTEL 1000683 is a solid carbide turning insert in the TPG222 style, designed for precision metal cutting on CNC and manual lathes. It carries a TiN coating applied via PVD process, which improves surface hardness and extends tool life in production turning applications. The insert has a 60-degree triangular shape with an 11-degree relief angle, a 0.25-inch inscribed circle, and a 1/32-inch corner radius. Grade HC210 positions this insert for use across a range of ferrous and non-ferrous workpiece materials. It is installed by machinists and toolroom technicians using a clamp-style holding method.

This insert is suited for light-to-moderate turning operations in both job shop and production environments. It fits toolholders that accept the TPG-style clamp seat. Primary workpiece material classifications are M, N, and S, covering stainless steels, non-ferrous metals, and high-temperature alloys. Secondary classification K covers cast iron. Material grade designations C2 and C4 apply. The KENDEX series designation identifies the insert within the broader HERTEL indexable tooling line. The neutral hand orientation allows use in both right- and left-hand toolholder setups.

Key Features

• Solid carbide substrate with PVD TiN coating for improved wear resistance
• 60-degree triangle insert shape with 11-degree relief angle (Clearance Code P)
• 1/32-inch corner radius for controlled surface finish on general turning passes
• Clamp-style holding method, Tolerance Code G for consistent seating
• Positive rake geometry reduces cutting forces on light finishing cuts
• Maximum depth of cut 1.25 mm (0.0492 inch) for controlled material removal

Compatibility

Designed as an OEM-style replacement insert for toolholders accepting TPG222 clamp-style seats in the KENDEX series.

Installation Notes

This insert is installed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench and clamp screw specified by the toolholder manufacturer to secure the insert seat — do not overtighten by hand. Inspect the insert pocket and clamp for wear or debris before seating a new insert to maintain dimensional accuracy.
