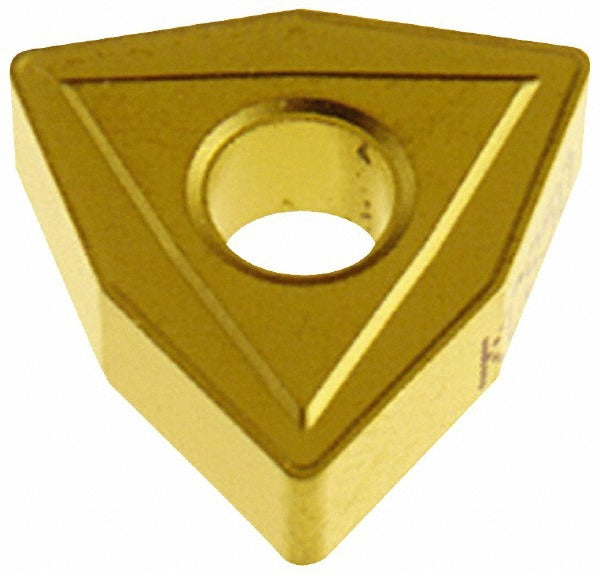

Hertel 1000630 WNMG431F HC335 Carbide Turning Insert

Product Description

The HERTEL 1000630 is a WNMG431F-style indexable turning insert manufactured from solid carbide and finished with a multilayer CVD coating of TiC, TiCN, and TiN under the HC335 manufacturer grade. The trigon insert shape features an 80-degree included angle, a neutral hand orientation, and a 1/64-inch (0.0156-inch) corner radius for general-purpose finishing operations. At 0.375 inches in length with a 0.5-inch inscribed circle and 0.1875-inch thickness, it is sized for standard WNMG431 toolholders. Licensed machinists and CNC lathe operators install this insert for turning applications on steel and stainless workpiece materials.

This insert is rated for primary workpiece material group P (carbon and alloy steels) and secondary material group M (stainless steels), making it well suited to general turning, light finishing, and semi-finishing passes on a variety of ferrous materials. The G-style chip breaker geometry supports controlled chip flow at moderate feed rates. It is compatible with clamp and pin insert-holding methods and is suited to both manual engine lathes and CNC turning centers used in production and job-shop environments.

Key Features

• HC335 grade solid carbide substrate with CVD-applied TiC, TiCN, and TiN multilayer coating for wear resistance
• WNMG431 style with 80-degree trigon shape and neutral hand for versatile toolholder compatibility
• 1/64-inch corner radius (0.0156 inches) suited to finishing and light semi-finishing cuts
• G-style chip breaker geometry for controlled chip evacuation on steel and stainless
• Compatible with clamp and pin holding methods; clearance code N, tolerance code M
• Rated for P and M workpiece material groups per ISO material classification

Compatibility

Designed as a direct-fit replacement for standard WNMG431 toolholders that accept clamp or pin insert retention; suited to C5 and C6 material grade applications on carbon steels and stainless steels.

Installation Notes

Installation is performed by qualified machinists following standard indexable insert seating procedures. Power down and lock out the machine spindle before changing inserts. Seat the insert fully against the toolholder pocket and verify clamp or pin engagement before resuming cuts. Do not exceed the toolholder manufacturer's recommended depth-of-cut or feed rate for this insert size.
