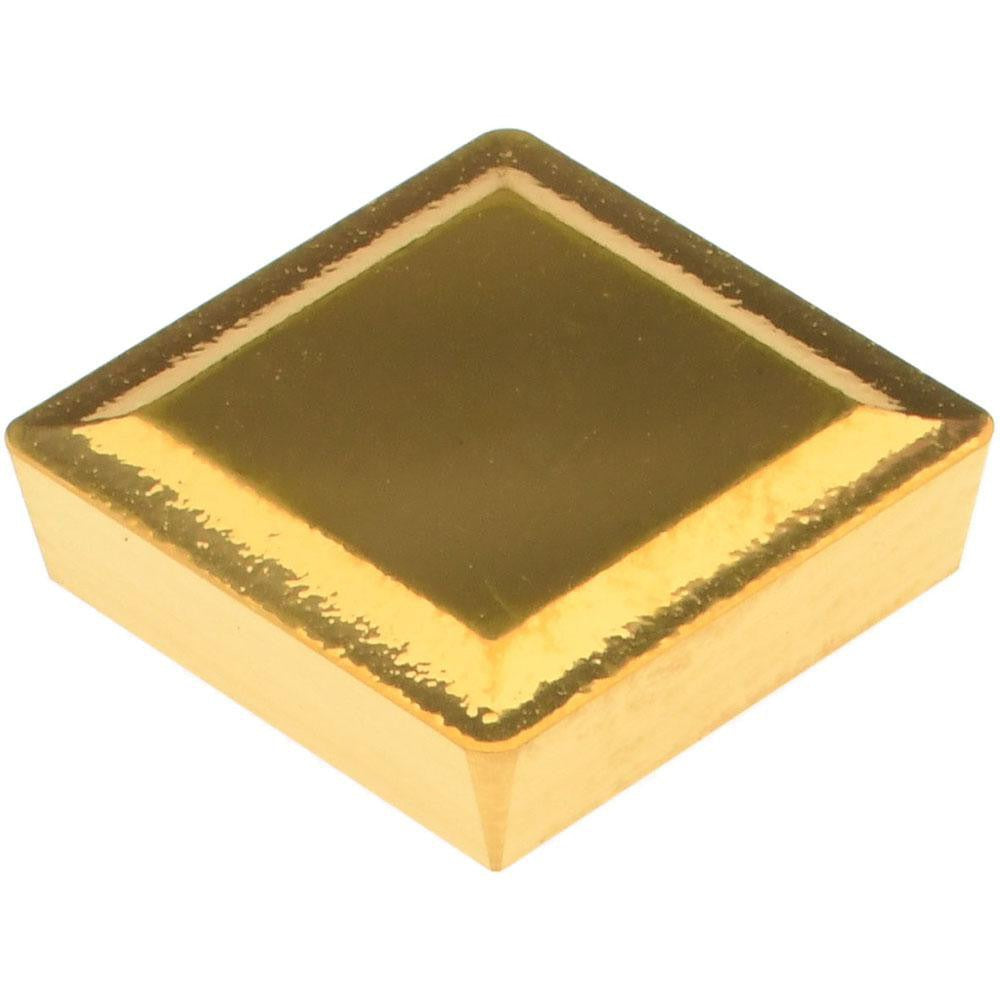

Hertel 1000397 Turning Insert SPMR422 HC335 Solid Carbide

Product Description

The HERTEL 1000397 is a solid carbide turning insert designed for precision external turning operations on CNC and manual lathes. Manufactured to the SPMR422 style with a 90-degree square shape, this insert features a CVD-applied multilayer coating of TiC, TiCN, and TiN in the HC335 manufacturer grade. The 0.5 inch inscribed circle and 0.0312 inch (1/32 inch) corner radius suit a wide range of finish and semi-finish turning cuts. The insert uses a clamp-style holding method and is rated for a maximum depth of cut of 0.0492 inch (1.25 mm). It is installed and changed by machinists and CNC operators in production and job-shop environments.

This insert is suited for turning steel and stainless steel workpiece materials, corresponding to ISO material groups P (steel) and M (stainless steel), and carries material grades C5 and C6. The KENDEX series geometry with a positive rake angle and R-style chip breaker supports controlled chip evacuation during turning. Typical applications include shaft turning, facing, and contour operations on ferrous materials in both production and repair machining contexts.

Key Features

• Solid carbide substrate with CVD-applied TiC, TiCN, and TiN multilayer coating in HC335 grade
• SPMR422 style, 90-degree square insert shape with positive rake geometry
• 0.5 inch inscribed circle and 0.125 inch insert thickness for rigid clamping
• 0.0312 inch corner radius suitable for finish and semi-finish turning passes
• R-style chip breaker for controlled chip formation on P and M workpiece materials
• Clamp-style holding method compatible with standard SPMR toolholders

Compatibility

Designed for use in toolholders that accept SPMR-style inserts with a 0.5 inch inscribed circle. Part of the KENDEX series by HERTEL.

Installation Notes

Installation is performed by a machinist or CNC operator. Always power down and lock out the machine spindle before changing inserts. Seat the insert fully against the toolholder pocket and torque the clamp screw according to the toolholder manufacturer's specifications. Inspect the insert seat and clamp for wear or debris before installation to ensure proper seating and repeatability.
