Hertel 1000180 Mtgn Negative Rake Indexable Turning Toolholder

Product Description

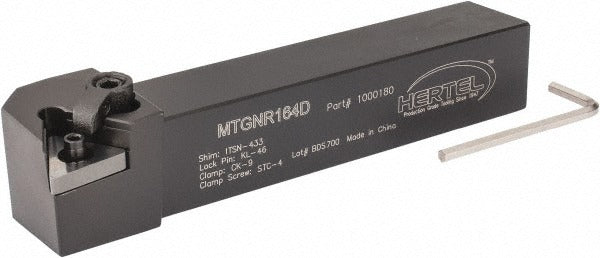

The HERTEL 1000180 is a right-hand MTGN-style indexable turning toolholder designed for negative-rake external turning operations on CNC and manual lathes. Built from steel, it features a 1 inch x 1 inch square shank and measures 6 inches in overall length. The holder uses a clamp-and-screw insert retention method and accepts TN..43. style inserts with a 0.5 inch inscribed circle. The negative 5-degree rake angle suits heavy interrupted cuts and hard materials where edge strength is a priority. Installed by machinists and tool-room technicians, this holder fits into standard boring bars and tool blocks commonly found in production turning centers.

This toolholder is suited for general-purpose external turning in both job-shop and production environments. The MTGN style is commonly used for straight turning, facing, and light profiling passes. The 1 inch x 1 inch shank fits standard tool blocks and quick-change toolpost holders sized for that shank cross-section. The 1.25 inch back-of-bar to cutting edge dimension positions the insert for consistent depth-of-cut control. This is a single-use-per-setup holder with no coolant-through capability, making it straightforward to set up without internal coolant plumbing.

Key Features

• MTGN toolholder style with right-hand cutting orientation
• Negative 5-degree rake angle for edge strength on interrupted or hard-material cuts
• 1 inch x 1 inch square shank, 6 inches overall length
• Accepts TN..43. series inserts with 0.5 inch inscribed circle
• Clamp-and-screw insert retention for secure, repeatable indexing
• Steel construction for rigidity and durability in turning applications

Compatibility

Accepts TN.. 432 series inserts as specified by the manufacturer. Compatible with standard tool blocks and quick-change toolpost systems sized for a 1 inch x 1 inch shank.

Installation Notes

Installation is performed by qualified machinists or tool-room technicians. Power down and lock out the machine spindle before changing inserts or seating the toolholder. Seat the shank fully in the tool block and torque the clamping screws evenly before taking a cut. Inspect the clamp, screw, and insert seating pocket for chips or damage each time the insert is indexed.
