Hertel 1000134 Msdn Neutral Turning Toolholder 0.5in Shank

Product Description

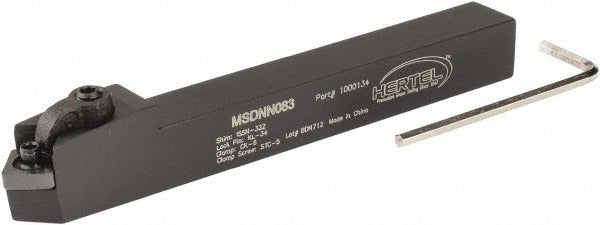

The HERTEL 1000134 is a neutral-hand MSDN-style indexable turning toolholder designed for negative rake metal cutting operations. It accepts SN..32. series inserts secured by a combination clamp and screw holding method, providing rigid, repeatable insert location during turning passes. The shank measures 0.5 x 0.5 inches with an overall length of 4.5 inches, fitting standard toolpost setups on CNC and manual lathes. With a rake angle of -7 degrees and steel construction, this holder is built for consistent performance in high-feed roughing and finishing applications across a range of workpiece materials.

This toolholder is suited for external turning operations on CNC turning centers and manual engine lathes where a neutral-hand approach is required. The MSDN configuration positions the insert for straight-line cuts and facing operations. It is installed by machinists and CNC setup technicians working in production shops, job shops, and toolrooms. The back of bar to cutting edge dimension of 0.25 inches keeps the cutting edge close to centerline for precise depth-of-cut control.

Key Features

• Neutral hand orientation supports straight turning and facing cuts without requiring left- or right-hand repositioning
• Negative -7 degree rake angle for improved edge strength and longer insert life in demanding cuts
• Clamp and screw insert holding method delivers secure, rigid insert retention under heavy cutting loads
• Accepts SN..32. series inserts with a 0.375-inch inscribed circle
• Steel toolholder body for durability in production turning environments
• No coolant-through feature keeps setup simple for external flood coolant applications

Compatibility

Compatible with SN..32. series inserts, specifically SN.. 322 insert style. Part of the HERTEL Multi-Option series. Manufacturer catalog reference MSDNN083.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Power down and lock out the lathe spindle before changing inserts or mounting the toolholder in the turret or toolpost. Ensure the shank seating surfaces are clean and free of chips before tightening. Follow the machine manufacturer torque and clamping specifications for toolpost or turret pocket fasteners.
