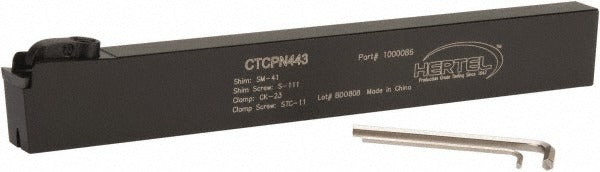

Hertel 1000086 Ctcp Indexable Turning Toolholder 0.5x1 Shank

Product Description

The HERTEL 1000086 is a neutral-hand CTCP-style indexable turning toolholder designed for external turning operations on CNC lathes and manual turning centers. It features a 3-degree positive rake angle that reduces cutting forces and promotes clean chip flow across a wide range of workpiece materials. The toolholder accepts TP..32. series inserts secured by a clamp-style holding method, providing rigid insert location and repeatable edge positioning. The shank measures 0.5 inches wide by 1 inch tall with an overall length of 8 inches. The body is machined from steel for durability under continuous cutting loads. Licensed machinists and CNC turning specialists are the primary installers of this toolholder.

This toolholder is suited for production turning environments where a neutral orientation is required to machine workpieces without interfering with the chuck or tailstock. The CTCP style and clamp-type insert retention make it appropriate for medium to heavy roughing and finishing passes on ferrous and non-ferrous materials. It is not configured for coolant-through delivery. The 3/8-inch insert inscribed circle accommodates TP..32. series inserts, and the complete insert compatibility reference is TP.. 322. The manufacturers catalog number for this toolholder is CTCPN443.

Key Features

• Neutral hand orientation allows use on either side of center without interference
• 3-degree positive rake angle reduces cutting forces and improves chip evacuation
• Clamp-type insert holding method delivers rigid, repeatable seating for TP..32. series inserts
• 0.5 x 1 inch steel shank provides a stable, rigid platform in standard toolpost and turret setups
• 8-inch overall length suits standard CNC lathe and manual turning center turrets
• No coolant-through feature simplifies setup where flood or mist cooling is used externally

Compatibility

Designed to accept TP..32. series indexable inserts with a 3/8-inch inscribed circle; complete insert compatibility reference is TP.. 322. Fits standard 0.5 x 1 inch shank pockets in CNC lathe turrets and manual turning center toolposts.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and all axes are in a safe home position before mounting or removing the toolholder. Torque the toolpost or turret clamping fasteners according to the machine tool manufacturer specifications. Inspect the insert pocket and clamp screw for debris or damage before seating a new insert.
