Hertel 1000062 Ctap Indexable Turning Toolholder

Product Description

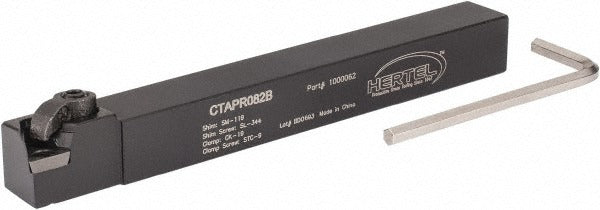

The HERTEL 1000062 is a right-hand CTAP-style indexable turning toolholder designed for external turning operations on CNC lathes and manual engine lathes. It features a 0-degree positive rake angle and a clamp-style insert holding method that securely retains TP..22 series inserts. The shank measures 0.5 inches wide by 0.5 inches tall with an overall length of 4.5 inches. Constructed from steel, this toolholder delivers consistent rigidity and dimensional stability during interrupted and continuous turning cuts. It is suited for production machinists and toolroom operators working with indexable insert turning setups.

This toolholder is intended for external turning applications on standard engine lathes and CNC turning centers where a right-hand cutting direction is required. The 3-degree lead angle and 0-degree positive rake geometry make it appropriate for finish and general-purpose turning of a wide range of workpiece materials. The clamp-style insert retention is compatible with TP.. 221 inserts with a 0.25-inch inscribed circle. Machinists running high-volume turning operations will find the indexable design reduces toolchange time compared to brazed-tip alternatives.

Key Features

• CTAP toolholder style with right-hand cutting orientation
• 0-degree positive rake angle for controlled chip formation
• Clamp-type insert holding method for secure insert retention
• Takes TP..22 series inserts with 0.25-inch inscribed circle
• Steel construction for rigidity and wear resistance
• Overall length of 4.5 inches with 0.5 x 0.5 inch shank cross-section

Compatibility

Compatible with TP.. 221 indexable inserts featuring a 0.25-inch inscribed circle. Insert holding method is clamp-type. Refer to HERTEL insert selection charts to confirm grade and geometry selection for your specific workpiece material.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the machine before seating or indexing inserts and before mounting the toolholder in the turret or tool post. Verify the back-of-bar to cutting-edge dimension of 0.5 inches aligns with the machine centerline before securing the shank. Follow the machine tool manufacturer torque guidelines for tool post or turret clamping fasteners.
